Name: Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-CSYT-A
Price: 5,000.00 USD
Availability: InStock

Ev > Ürünler > Environmental Monitoring >

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

Menşe yeri:

Çin

Marka adı:

KACISE

Sertifika:

Model numarası:

KQS-CSYT-A

Bizimle İletişim

Teklif Et

Corrosion-Resistant Ultrasonic Environmental Monitor with RS485 Modbus Protocol and High-Efficiency Heating Function

Ürün Ayrıntıları

Rüzgar Hızı Aralığı:

0-70 m/sn

Ölçülen parametreler:

Rüzgar Hızı, Rüzgar Yönü, Sıcaklık, Nem, Basınç, Pusula, GPS (isteğe bağlı)

Kesinlik:

Rüzgar Hızı: ±(0,5+0,02rdg) m/s; Rüzgar Yönü: ±3°; Sıcaklık: ±0,3°C

Koruma:

Korozyona dayanıklı, tuz spreyine dayanıklı, tamamen yalıtılmış yapı

Başvuru:

Limanlar, adalar, gemiler, açık denizdeki petrol sondaj platformları

Sinyal çıkışı:

Standart Modbus protokolüne sahip RS485

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı kutusu vardır, tüm kutular standart paketlerde veya müşteri isteğine göre paketlen

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 Adet/Adet pazarlık yapılabilir

İlişkili Ürünler

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

En İyi Fiyatı Alın

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

En İyi Fiyatı Alın

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

En İyi Fiyatı Alın

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

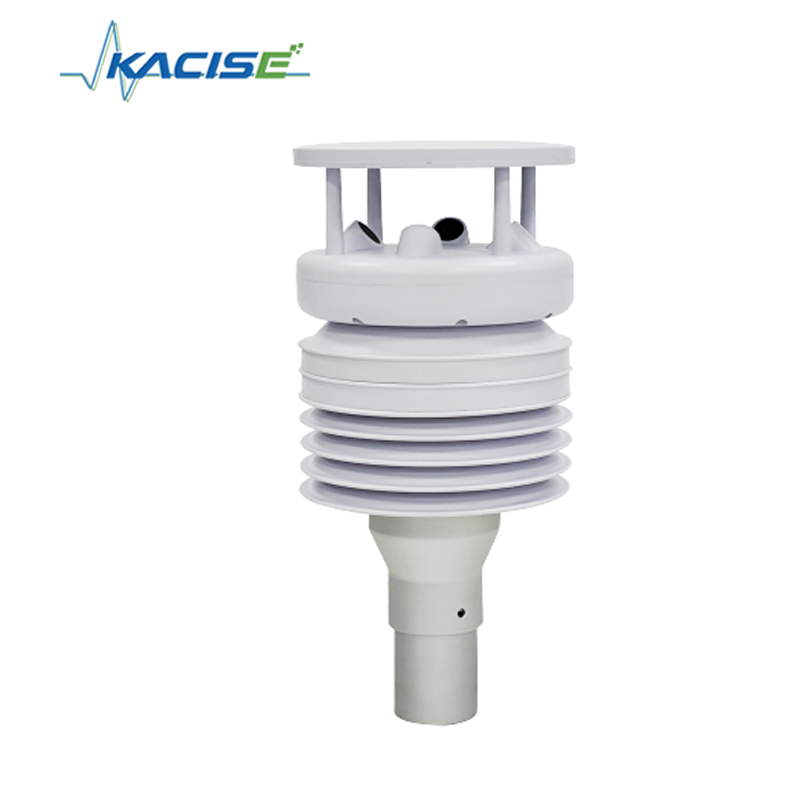

KQS-CSYT-A Corrosion-Resistant Ultrasonic Environmental Monitor

The KQS-CSYT-A corrosion-resistant ultrasonic environmental monitor is a meteorological environmental monitoring instrument specifically designed for marine environments or highly corrosive gas environments. Compared with traditional ultrasonic environmental monitors, it features specially selected corrosion-resistant ultrasonic transducers and a specialized structural design that enhances corrosion resistance and sensor probe replaceability.

Product Features

Designed for harsh marine environments; temperature, humidity, and pressure sensors use polymer membranes to extend service life
Easy maintenance: when the temperature/humidity probe reaches end of life, it can be replaced directly without returning the entire unit for repair
Advanced filtering algorithms with special compensation for rain and fog conditions
Uses high-quality 200 kHz ultrasonic transducers for more accurate and stable wind measurement
Salt-spray resistant probes with fully sealed structure, tested to national standards; suitable for coastal and port environments
RS485 output with standard Modbus protocol for easy system integration
Modular and highly integrated design
Low power consumption
Optional heating function, electronic compass, and GPS support

Technical Parameters

Environmental Parameter (Optional)	Range	Accuracy	Resolution	Power Consumption
Wind speed	0-70 m/s	Start wind speed ≤ 0.8 m/s, ±(0.5 + 0.02rdg) m/s	0.01 m/s	0.1 W
Wind direction	0-360°	±3°	1°	--
Air temperature	-40-80°C	±0.3°C	0.1°C	1 mW
Air humidity	0-100% RH	±5% RH	0.1% RH	1 mW
Atmospheric pressure	300-1100 hPa	±1 hPa (at 25°C)	0.1 hPa	0.1 mW
Electronic compass	0-360°	±5°	1°	100 mW
GPS (longitude)	-180° to 180°	≤10 m	0.1 s	--
GPS (latitude)	-90° to 90°	≤10 m	0.1 s	--
GPS (altitude)	-3276.7 to 3276.7 m	≤3 m	0.1 m	--

Total Power Consumption: Total power = power of selected sensors + base board power; base board power is 300 mW.

Dimensions
