Name: Deltabar PMD55B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Delta bar PMD55B
Price: 152.00 USD
Availability: InStock

Ev > Ürünler > Presizyon basınç sensörü >

Deltabar PMD55B - differential pressure transmitter

Deltabar PMD55B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD55B

Menşe yeri:

İsviçre

Marka adı:

Endress+Hauser

Model numarası:

Delta bar PMD55B

Bizimle İletişim

Teklif Et

Deltabar PMD55B - differential pressure transmitter

Ürün Ayrıntıları

Kesinlik:

dart:%0,05'e kadar

Platin::

%0,025'e kadar

Basınç ölçüm aralığı:

400 mbar...700 bar(1,5 psi...10,500 psi)

Ana ıslanan parçalar:

316L, AlaşımC,Tantal, Monel,PTFE, Altın

Malzeme proses membranı:

316L, AlaşımC,Tantal, Monel,PTFE,Altın

Ölçüm hücresi:

400 mbar...700 bar(6 psi...10,500 psi)

Vurgulamak:

Deltabar PMD55B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD55B

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Deltabar PMD55B - differential pressure transmitter

En İyi Fiyatı Alın

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

En İyi Fiyatı Alın

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

En İyi Fiyatı Alın

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

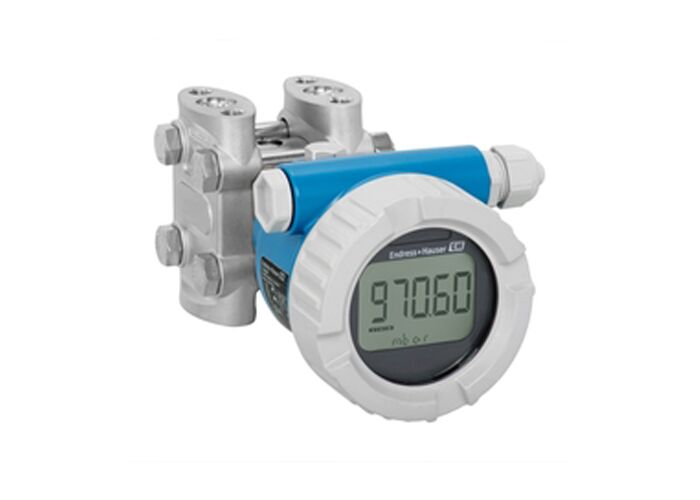

Deltabar PMD55B Differential Pressure Transmitter

The Deltabar PMD55B differential pressure transmitter represents the latest generation of robust, easy-to-operate industrial measurement instruments designed for both local and remote operation.

Key Specifications

Accuracy:
Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range:
10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature:
-40°C...110°C (-40°F...230°F)

Pressure Range:
10 mbar...40 bar (0.15 psi...600 psi)

Main Wetted Parts:
316L, AlloyC

Static Pressure:
Up to 250 bar (3750 psi)

Field Application

This advanced transmitter enables wireless control via the SmartBlue app on mobile devices using secure Bluetooth connectivity. The PMD55B supports condition-based maintenance, significantly enhancing technical service efficiency through intuitive software wizards that guide users through setup and proof testing procedures.

Key Benefits

Wireless device control in process areas without interrupting operations
Enhanced safety by reducing on-site accidents in difficult-to-access areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Details

Measuring Principle:
Differential Pressure

Long Term Stability:
0.05% of URL/year
0.13% of URL/5 years
0.23% of URL/10 years

Ambient Temperature:
-40°C...85°C (-40°F...185°F)

Process Connection:
NPT 1/4-18, RC1/4"

Communication:
4...20 mA HART
PROFINET with Ethernet-APL
Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionalities for simplified integration.

Certifications & Approvals

ATEX

CSA

IECEx

JPN Ex

INMETRO

NEPSI

UK Ex

SIL

EN 10204-3.1

NACE MR0175

NACE MR0103

AD2000

NSF

KTW

Application Limits

None - suitable for diverse industrial applications
