Name: KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KWL801
Price: 400.00 USD
Availability: InStock

Ev > Ürünler > Radar seviyesinde vericiler >

KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy

76GHz-81GHz Radar Water Level Sensor

65m Water Level Meter

±1mm Liquid Level Measuring Instrument

Menşe yeri:

Çin

Marka adı:

KACISE

Sertifika:

Model numarası:

KWL801

Bizimle İletişim

Teklif Et

KWL801 Non-contact Radar Water Level Sensor with 76GHz-81GHz Frequency Range 65m Measuring Range and ±1mm Accuracy

Ürün Ayrıntıları

Kablo:

Kablo uzunluğu 10m

Frekans Aralığı:

76GHZ-81GHZ

Ölçüm aralığı:

65m

Ölçüm doğruluğu:

± 1 mm

İletişim yöntemi:

4-20mA/HART /RS485/ MODBUS

Güç kaynağı aralığı:

18-28VDC

Vurgulamak:

76GHz-81GHz Radar Water Level Sensor

65m Water Level Meter

±1mm Liquid Level Measuring Instrument

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

FUEL GAUGE Gauge meter Liquid meter Tank water Level Meter anticorrosion rod radar level gauge

En İyi Fiyatı Alın

Oil diesel fuel tank radar level sensor meter gauge with output signal 4-20mA or HART or RS485

En İyi Fiyatı Alın

KLD-2602 RS485 Modbus Radar Level Meter with measuring Range 30 meters

En İyi Fiyatı Alın

solid measuring instrument level sensor radar for tank and bin

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

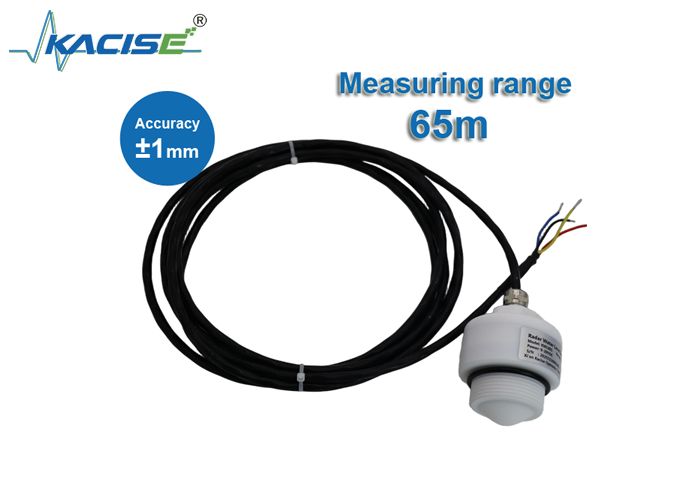

KWL801 Radar Water Level Sensor

The KWL801 radar water level meter is a non-contact liquid level measuring instrument utilizing high-frequency millimeter wave technology, engineered for high-precision water level monitoring applications. Featuring advanced FMCW (frequency modulated continuous wave) radar technology, it delivers exceptional measurement accuracy, strong interference resistance, and excellent environmental adaptability. Ideal for water conservancy, urban drainage systems, and industrial process control.

The antenna incorporates a high-performance circular polarization common design, with integrated housing and antenna for enhanced airtightness. Bluetooth wireless technology enables safe, convenient on-site configuration and maintenance via intuitive mobile software interfaces.

Key Features

Shorter wavelength for better signal reflection and small beam angle
Compact integrated lens design with minimal interference
Small blind spot, optimized for short-distance measurements
High signal-to-noise ratio for reliable performance in unstable conditions
Bluetooth wireless communication for convenient maintenance
Easy installation with concentrated energy beam

Technical Specifications

Model	4-20mA Water Level Sensor	RS485 Water Level Sensor

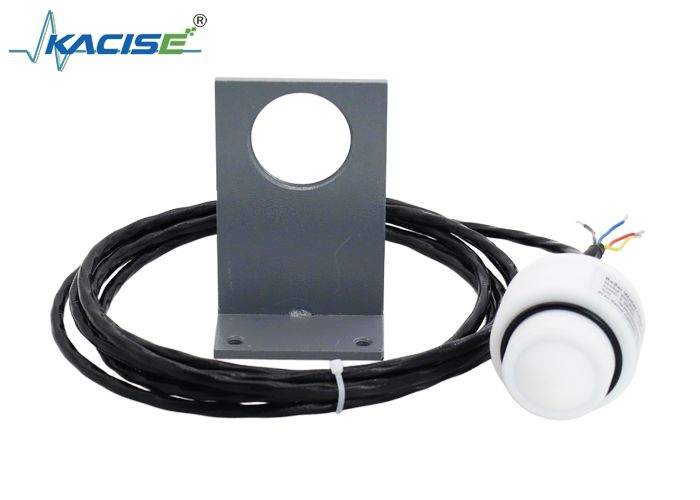

Installation method	bracket, thread	bracket, thread
Frequency range	76GHz-81GHz	76GHz-81GHz
Measuring range	65m	65m
Measurement accuracy	(±1mm)	(±1mm)

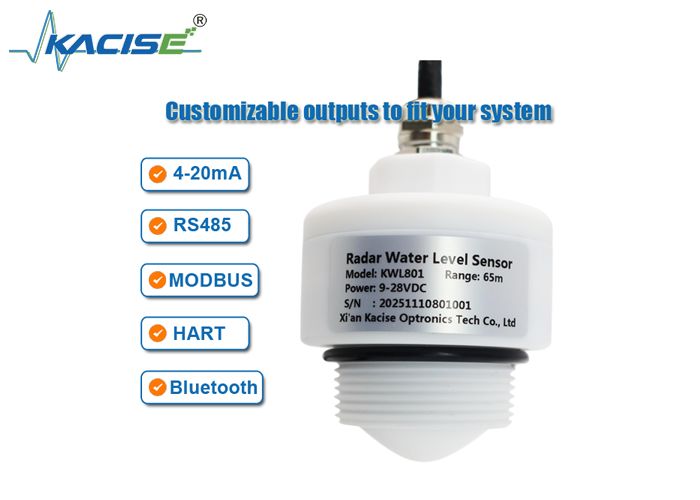

Communication method	4-20mA/HART	RS485/ MODBUS
Power supply range	18-28V DC	9-28V DC
Cable	Cable length 10m	Cable length 10m
Shell material	Aluminum alloy, stainless steel, PP	stainless steel, PP
Process temperature	-30~70℃	-30~70℃
Process pressure	-0.1~0.1mpa	-0.1~0.1mpa
Measurement interval	800ms	500ms
Maximum power consumption	4-20mA/HART(20mA)	RS485/ MODBUS (15mA)
Beam angle	6°	6°
Protection level	IP68	IP68
Blind area	0.1m-12m	0.3m-65m
Debug	PC Host computer/IOS Android	PC Host computer/IOS Android
Wireless bluetooth	Bluetooth (Optional)	Bluetooth (Optional)
Bluetooth range	12m	12m
Bluetooth standard	Bluetooth5.0	Bluetooth5.0
Packing size	272311	272311

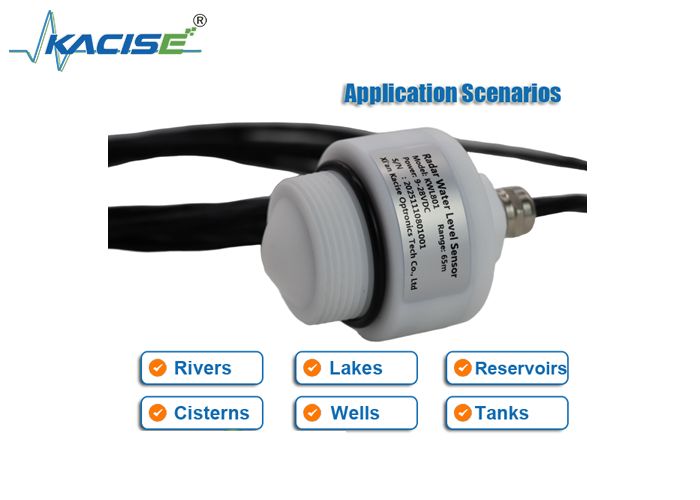

Application scope	Rivers, lakes, reservoirs, cisterns, wells, tanks	Rivers, lakes, reservoirs, cisterns, wells, tanks
