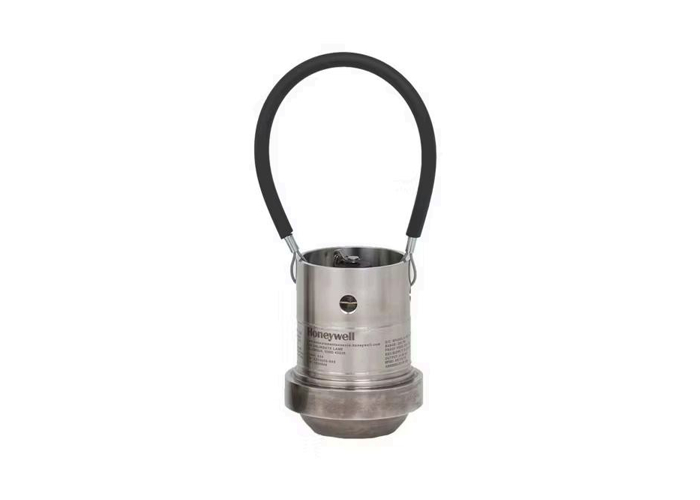

Name: Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Modeli 434
Price: 152.00 USD
Availability: InStock

Ev > Ürünler > Presizyon basınç sensörü >

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

0 psi to 20

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

Marka adı:

Honeywell

Model numarası:

Modeli 434

Bizimle İletişim

Teklif Et

Honeywell Model 434 Wing Union Pressure Transducer with 0 psi to 20,000 psi Range and ±0.2% Full-Scale Accuracy

Ürün Ayrıntıları

Standart diyafram.:

0 psi'den 20.000 psi'ye

Kesinlik:

±%0,2 FSS BFSL

Çıktı:

4 mA - 20 mA, 2 telli

Sıcaklık, Çalışma:

-40 °C - 125 °C [-40 °F - 257 °F]

Sıcaklık, Kompanzasyonlu:

-40 °C ila 85 °C [-40 °F ila 185 °F]

Islak parçalar:

Inconel® 718 (NACE uyumlu)

Vurgulamak:

0 psi to 20

000 psi Pressure Transducer

±0.2% Full-Scale Accuracy Wing Union Pressure Sensor

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Deltabar PMD55B - Farklı basınç verici

En İyi Fiyatı Alın

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

En İyi Fiyatı Alın

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

En İyi Fiyatı Alın

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

Honeywell Model 434 Wing Union Pressure Transducers

Standard aperture. 0 psi to 20,000 psi. ±0.2% full-scale accuracy.

Overview

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are designed for demanding oil and gas applications as well as stimulation and circulation systems. They feature an all-welded, stainless steel assembly with the sensor diaphragm and wing union fitting machined as one part, providing hermetic integrity and minimizing media leakage.

Value to Customers

Durable: Weco® Wing Union-compatible fittings are machined of Inconel® X-750, or optional NACE-compliant Inconel® 718, allowing for use with abrasive and corrosive media. Protective cage option provides electrical connection protection.
Reliable: All-welded, stainless steel assembly, shock/vibration ratings, and isolated pressure sensing diaphragm increase reliability.
Accurate: High accuracy option provides confidence in measured pressure values, particularly for smaller pressure changes, allowing precise drilling operation adjustments.
Availability and service: Global manufacturing and support enable quick delivery of customized products to meet project timelines.

Differentiators

High or standard accuracy capability meets tighter system requirements with lower error bands than comparable competitive models.
Shunt calibration option enhances configurability and flexibility - 1-wire shunt calibration is achievable with a single barrier application, helping minimize installation costs.
IEC Ex approval allows for use in hazardous areas in Asia-Pacific, EMEA, and by the U.S. Coast Guard.
Protective cage option available.
Welded construction for enhanced durability.

Part Numbers

Part Number	Description
060-P774-01	BP434EJ, 6, 1AC, 2AK, 6BF, 7AE, 10J:MODEL 434
060-P909-01-01	BP434EJ, 6, 1AC, 2AK, 6Z, 7AD, 9A, 10J:Model
060-R267-01	BP434DR, 6, 1AC, 2AK, 6BF, 7AE, 10J, 45E:Model
060-R310-01	BP434EL, 6, 1AC, 2AK, 6Z, 7AD, 10J:MODEL 434
060-R392-01	BP434EL, 6, 1AC, 2AK, 6A, 7AF, 10J:MODEL 434
