Name: Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 645-4
Price: 152.00 USD
Availability: InStock

Ev > Ürünler > Presizyon basınç sensörü >

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)

Wet/Wet Differential Pressure Transmitter

645 Wet/Wet Differential Pressure Transmitter

Dwyer Wet/Wet Differential Pressure Transmitter

Marka adı:

Dwyer

Model numarası:

645-4

Bizimle İletişim

Teklif Et

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)

Ürün Ayrıntıları

Hizmet:

Hem basınç hem de referans taraflarında uyumlu gazlar veya sıvılar.

Islak malzemeler:

17-4 pH paslanmaz çelik, 300 serisi paslanmaz çelik, floroelastomer ve silikon O-rings ve kanama vid

Doğruluk:

±% 0.25 FS (RSS)

Çıkış sinyali:

4 ila 20 Ma, 2 telli

DÖNGÜ DİRENCİ:

0 ila 1000Ω.

Ağırlık:

0.4g

Vurgulamak:

Wet/Wet Differential Pressure Transmitter

645 Wet/Wet Differential Pressure Transmitter

Dwyer Wet/Wet Differential Pressure Transmitter

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

her ünitenin ayrı kutusu vardır ve tüm kutular standart paketlerde veya müşterilerin istekleri doğru

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Yetenek temini

Haftada 1000 Adet/Adet pazarlık yapılabilir

İlişkili Ürünler

KMC2000MICRO DİFERANSİYEL BASINÇ GÖSTERGESİ

En İyi Fiyatı Alın

Dwyer Magnesense MS-111 Mikro Farklılık Basınç Göndericisi

En İyi Fiyatı Alın

KMC-Y250BF Gaz Su Yağ Sıvı Ortam için 0-60mpa basınç göstergesi

En İyi Fiyatı Alın

3000MR 3000MRS Kombinasyon Basınç Ölçer, Düşük ve Yüksek Ayar Noktalarıyla

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

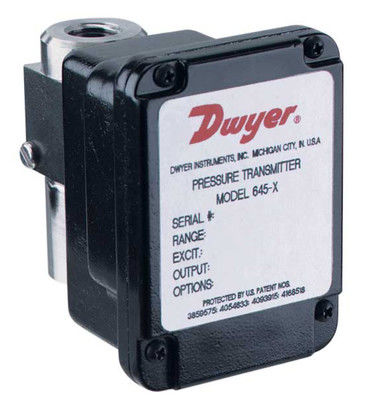

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x)

Product Introduction

The Dwyer Series 645 Wet/Wet Differential Pressure Transmitter is a high-precision instrument designed for measuring differential pressure in compatible gases and liquids. Featuring a quick-response capacitance sensor, it delivers a 4–20 mA output proportional to pressure changes with ±0.25% accuracy. The 2-wire design simplifies installation, while bleed ports in the optional 3-valve manifold allow air elimination for reliable readings. Ideal for process control, filter monitoring, HVAC systems, and liquid level measurement, this transmitter combines rugged performance with ease of maintenance for industrial applications.

Dwyer Series 645 Wet/Wet Differential Pressure Transmitter (645-x) 0

Product Features

High-Accuracy Measurement:

±0.25% full-scale accuracy ensures precise differential pressure monitoring.

Capacitance sensor offers fast response to pressure changes.

2-Wire Design:

Simplifies wiring and reduces installation costs in industrial setups.

Wet/Wet Compatibility:

Suitable for both gas and liquid media on pressure and reference ports.

Versatile Applications:

Process control, filter condition monitoring, refrigeration equipment, pump speed control, HVAC, and liquid level measurement.

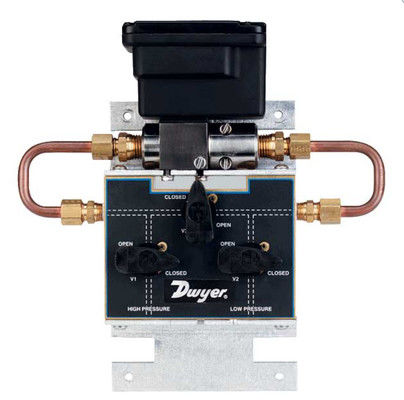

Optional 3-Valve Manifold:

Enables easy installation and maintenance.

Bleed ports eliminate air from lines and pressure cavities for accurate readings.

Reliable Performance:

Robust construction for long-term use in industrial environments.

Models

Model	Description
645-0	Wet/wet differential pressure transmitter, range 0-1 psid.
645-0-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-1 psid.
645-1	Wet/wet differential pressure transmitter, range 0-2 psid.
645-1-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-2 psid.
645-10	Wet/wet differential pressure transmitter, range ±0.5 psid.
645-10-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±0.5 psid.
645-11	Wet/wet differential pressure transmitter, range ±1 psid.
645-11-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±1 psid.
645-12	Wet/wet differential pressure transmitter, range ±2.5 psid.
645-12-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±2.5 psid.
645-13	Wet/wet differential pressure transmitter, range ±5 psid.
645-13-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±5 psid.
645-14	Wet/wet differential pressure transmitter, range ±10 psid.
645-14-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±10 psid.
645-15	Wet/wet differential pressure transmitter, range ±25 psid.
645-15-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±25 psid.
645-16	Wet/wet differential pressure transmitter, range ±50 psid.
645-16-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range ±50 psid.
645-2	Wet/wet differential pressure transmitter, range 0-5 psid.
645-2-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-5 psid.
645-3	Wet/wet differential pressure transmitter, range 0-10 psid.
645-3-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-10 psid.
645-4	Wet/wet differential pressure transmitter, range 0-25 psid.
645-4-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-25 psid.
645-5	Wet/wet differential pressure transmitter, range 0-50 psid.
645-5-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-50 psid.
645-6	Wet/wet differential pressure transmitter, range 0-100 psid.
645-6-3V	Wet/wet differential pressure transmitter with 3-valve manifold assembly, range 0-100 psid.
