Name: Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 2000-60 yıl
Price: 152.00 USD
Availability: InStock

Ev > Ürünler > Presizyon basınç sensörü >

Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity

Dwyer Mechanical Micro Differential Pressure Gauge

Micro Differential Pressure Gauge

Marka adı:

Dwyer

Sertifika:

Model numarası:

2000-60 yıl

Bizimle İletişim

Teklif Et

Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity

Ürün Ayrıntıları

Warranty:

1 Year

Model Number:

2000 Series

Type:

Differential

Connection:

1/4NPT

Weight:

0.5kg

Customized Support:

OEM, ODM

Vurgulamak:

Dwyer Mechanical Micro Differential Pressure Gauge

Micro Differential Pressure Gauge

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

her ünitenin ayrı kutusu vardır ve tüm kutular standart paketlerde veya müşterilerin istekleri doğru

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Yetenek temini

Haftada 1000 Adet/Adet pazarlık yapılabilir

İlişkili Ürünler

KMC2000MICRO DİFERANSİYEL BASINÇ GÖSTERGESİ

En İyi Fiyatı Alın

Dwyer Magnesense MS-111 Mikro Farklılık Basınç Göndericisi

En İyi Fiyatı Alın

KMC-Y250BF Gaz Su Yağ Sıvı Ortam için 0-60mpa basınç göstergesi

En İyi Fiyatı Alın

3000MR 3000MRS Kombinasyon Basınç Ölçer, Düşük ve Yüksek Ayar Noktalarıyla

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

Dwyer Magnehelica Mechanical Micro Differential Pressure Gauge With 0.5kg Load Capacity

Attribute	Value
Warranty	1 Year
Model Number	2000 Series
Type	Differential
Connection	1/4NPT
Weight	0.5kg
Customized Support	OEM, ODM

Product Introduction

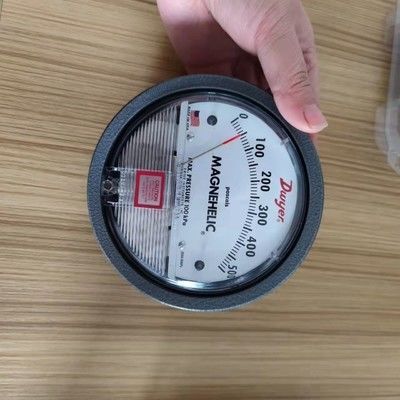

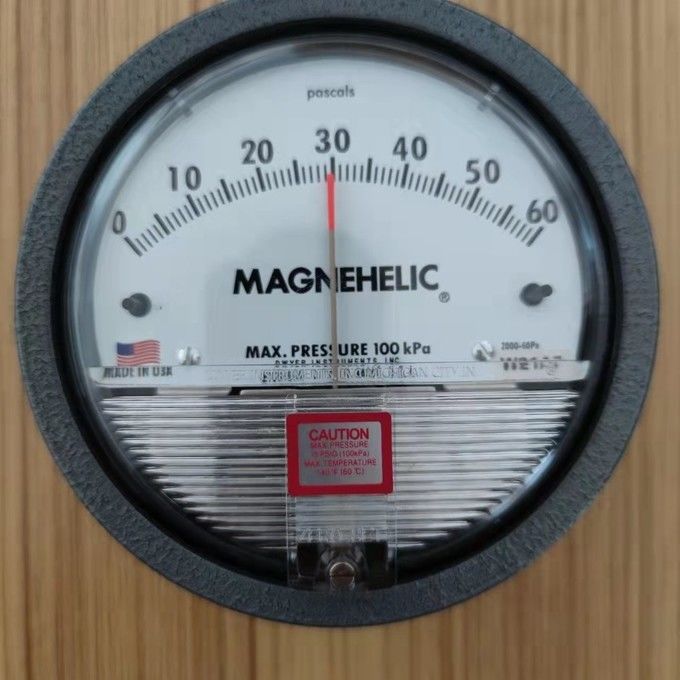

Dwyer Magnehelica mechanical differential pressure gauge delivers high-precision measurement within ±2% of full scale, featuring 81 selectable ranges to precisely meet diverse application needs. Utilizing simple, non-wearing Magnehelica moving components, this gauge rapidly indicates low pressures of air or non-corrosive gases—including positive pressure, negative pressure (vacuum), or differential pressure.

Engineered to resist shock, vibration, and overpressure, it eliminates issues like manometer liquid evaporation, freezing, or poisoning, while offering a cost-effective solution. Widely applied in measuring fan pressure, blower resistance, filter pressure drop, wind speed, furnace draft, orifice plate pressure loss, foaming system liquid level, fluid amplifier pressure, and hydraulic system pressure. It also detects gas-to-air ratio controls, automatic valves, and monitors blood/respiratory pressure in medical care equipment.

Key Features

High Accuracy: ±2%~4% of full scale at 21°C (70°F), ensuring reliable measurements.
Versatile Ranges: 81 range options with metric/imperial units for flexible applications.
Non-Wearing Design: Magnetic transmission eliminates friction, wear, and hysteresis.
Robust Construction: Shock, vibration, and overpressure resistant; no liquid-related failures.
Easy Installation: Surface or flush mounting; compatible with Model A-610 pipe mount.
Calibration Flexibility: Adjustable for horizontal/vertical use (re-zero for optimal accuracy).
