KAW107 Mini Smart Connected Customized Pressure Sensor for Smart Water Affairs
| utput: |
4~20mA, I2C, SPI, 0.2-2.9V, 0-5V And Customization |
Pressure Range: |
0-10bar |
| Accuracy: |
0.5%FS, 1%FS, 2%FS |
Operation Temperature: |
-40~150℃ |
| Respond Time: |
≥1ms |
OEM: |
OEM, ODM Welcome |
| Overload: |
2 Times FS |
Proof Pressure: |
3 Times FS |
| Housing Material: |
SS304 |
Sensor Type: |
Diffused Silicon Sensor, Ceramic Capacitive Sensor |
Product Introduction

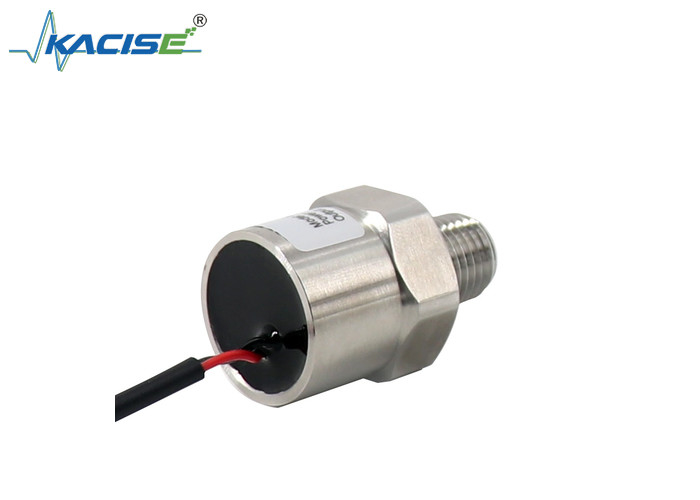

The KAW107 Mini Smart Connected Customized Pressure Sensor is an ideal choice for Smart Water Affairs. It is developed based on the concept of the Internet of Things and is equipped with high-performance sensing technologies, either ceramic capacitive or diffused silicon pressure sensors.
This sensor can accurately measure the pressure in water systems, with a pressure measurement range of 0 - 10bar, and can handle gauge pressure, absolute pressure, and sealing gauge pressure. It provides multiple output signals such as 4~20mA, I2C, SPI, etc., which can be easily integrated into water management systems. The accuracy can reach 0.5%FS, 1%FS, etc., ensuring the precision of data.
With an operating temperature range of -40℃ to 125℃ and a compensation temperature range of -20℃ to 70℃, it can maintain stable performance in different temperature conditions. The sensor is compact in size and supports customization. It offers various connection options for pressure and electrical interfaces, including G1/4, 7/16-SAE, NPT, packard, M12, Small Hirschman connectors, and direct cable outlet. With an IP67 protection rating and a housing made of SS304 or SS316, it can withstand harsh environments. Moreover, it welcomes OEM and ODM services, which can be tailored to specific requirements in smart water management projects.
Features
Compact and Smart Design: Miniature size with smart connectivity features, suitable for various water system installations.
High-performance Sensing: Utilizes ceramic capacitive or diffused silicon pressure sensors for accurate pressure detection.
Multiple Outputs: Offers a range of output signals for seamless integration with different control systems.
Accurate Measurement: Achieves accuracy levels like 0.5%FS, 1%FS for reliable pressure measurement in water affairs.
Temperature Resistance: Operates stably within a wide temperature range from -40℃ to 125℃ with effective temperature compensation.
Flexible Connections: Various pressure and electrical connection options for easy installation and system integration.
Good Protection: IP67 protection and durable SS304 or SS316 housing for long-term use in water-related environments.
Customization Services: Supports OEM and ODM, allowing for tailored solutions to meet specific project needs.
Product Description
| Pressure range |
0~10bar |
| Pressure type |
Gauge, Absolute, Sealing gauge |
| Overpressure |
300%F.S. (≤70kPa) 200%F.S.(≤25MPa) |
| Output signals |
0.2-2.9V, SPI, I2C, 0.5-4.5V, 1-5V, 0-5V, 0~10V, 4~20mA |
| Accuracy |
±0.5%FS, ±1%FS |
| Compensation Temp. |
-20~70℃ |
| Operation Temp. |
-40~125℃ |
| Storage Temp. |
-40~125℃ |
| Zero Temp. Drift |
±1.5%FS Max (-20~85℃) |
| Full Scale Temp. Drift |
±1.5%FS Max (-20~85℃) |
| Pressure Connection |
G1/4, 7/16-SAE, NPT, and other outputs |
| Ingress Protection |
IP67 |
| Housing |
SS316, SS304 |
