Name: Water Differential Air Pressure Sensor IP65 High Accuracy And High Stability
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXSENSORS-PS540
Price: 61.00 USD
Availability: InStock

Ev > Ürünler > Sıvı seviyesi ölçer >

Water Differential Air Pressure Sensor IP65 High Accuracy And High Stability

Water Differential Air Pressure Sensor IP65

Boiler Differential Air Pressure Sensor

Place of Origin:

CHINA

Marka adı:

KACISE

Sertifika:

Model Number:

GXSENSORS-PS540

Bizimle İletişim

Teklif Et

Water Differential Air Pressure Sensor IP65 High Accuracy And High Stability

Ürün Ayrıntıları

Usage:

PRESSURE SENSOR

Theory:

Resistance Sensor

Output:

Analog SENSOR

Certificate::

Warranty:

12 months exchange

Type:

adjustable differential pressure switch

Protection:

IP65

Medium Measurement:

Non-corrosive dry gas; weak corrosive and damp gas

Output signal:

4~20mA, 1~5V, 0~5V Optional

Accuracy:

±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional

Operating voltage:

24VDC

Port:

Shanghai or other

Vurgulamak:

Water Differential Air Pressure Sensor IP65

Boiler Differential Air Pressure Sensor

Ödeme ve Nakliye Şartları

Minimum Order Quantity

1PCS

Fiyat

$55.00 - $68.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

İlişkili Ürünler

Video

Çoklu makine iletişimini destekleyen KDI Serisi Ekran Kontrolörü

En İyi Fiyatı Alın

Video

KDI Serisi Açık Dahili Parametrel Ayarlama Arayüzü Yüksek Doğruluk ve 0,1 Çözünürlüklü Ekran Denetleyicisi

En İyi Fiyatı Alın

Video

Çoklu Endeks Giriş Değişimi ve Sıcaklık Kompensasyonu ile Kesin KDI Serisi Ölçüm Ekran Kontrolörü

En İyi Fiyatı Alın

Video

Dijital ve analog ölçümlü KDI Serisi Işık Sütunu Ekran Kontrolörü

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

2015 low cost high quality adjustable differential pressure switch

Feature

High sensitivity

High accuracy and high stability

Mini outline, easy to install

Application

Boiler

Dust precipitator

Air duct pressure

Differential and negativepressure

Instruction

GXPS540 series adjustable differential pressure switch Wind Pressure & Differential Pressure Transmitter adopts high-precision, high stability diaphragm and is assembled by stress isolation technics. By strict precision temperature compensation and signal amplification, transfer micro differential pressure, air pressure, flow and other parameters to reliable 4~20mA or 1~5V signal output.

Parameter of 2014 low cost high quality adjustable differential pressure switch

Measuring range:	0-100Pa~100Kpa; -50KPa~-50Pa-50Pa~50Kpa
Protection:	IP65
Medium Measurement:	Non-corrosive dry gas; weak corrosive and damp gas
Output signal:	4~20mA, 1~5V, 0~5V Optional
Operating voltage:	24VDC
Accuracy:	±0.2% F.S., ±0.5% F.S., ±1% F.S. Optional
Adjustment	Zero and range are adjustable externally
Medium temperature:	-10~100°C
Ambient temperature :	-20~80°C
Electric Interface:	outlet cable
Shell material:	Aluminum alloy

Dimension

Water Differential Air Pressure Sensor IP65 High Accuracy And High Stability 0

Ordering information

GXPS540						Product Serial
	X (Pa or KPa)					Pressure Range
		0.3				±0.3%FS Accuracy
		0.5				±0.5%FS Accuracy
		1.0				±1%FS Accuracy
			4mA			4~20mA Output
			V0			0~5VDC Output
			V1			1~5VDC Output
			RSV			reserved
				F8		Φ8 tower-type interface
				RSV		reserved
					CX	X meters Cable
					RSV	reserved
GXPS540	1KPa	0.3	4mA	F6	C2	Example

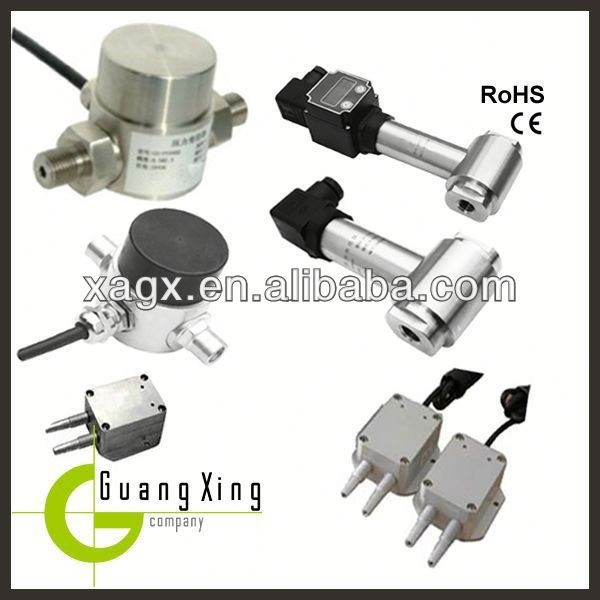

Other adjustable differential pressure switch for your choice

**************************************************************************************************
