Name: economic Water Air and Oil analog Pressure Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: GXPS
Price: 117.00 USD
Availability: InStock

Ev > Ürünler > Sıvı seviyesi ölçer >

economic Water Air and Oil analog Pressure Sensor

Menşe yeri:

Çin

Marka adı:

KACISE

Sertifika:

Model Number:

GXPS

Bizimle İletişim

Teklif Et

economic Water Air and Oil analog Pressure Sensor

Ürün Ayrıntıları

Pressure range:

-0.1MPa~1kPa......800MPa(customizable)

Accuracy:

±0.1%, ±0.25%, ±0.5%, ±1.0%F.S

Stability:

Typical value: 0.1%F.S Max.: 0.2% F.S

Operating Temperature:

-40°C~85°C

pressure interface:

M20*1.5,G1/4,G1/2,R1/2,NPT1/2

response time:

10ms

presssure type:

gauge pressure, seal gauge

Certificate:

certificate of explosion-proof, CE

Power supplies:

10~30Vdc,8~30Vdc, 5V(ratio)

Type:

analog Pressure Sensor

Port:

Shanghai or other

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

$55.00 - $180.00/pieces

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Teslim süresi

5-8 iş günü

Yetenek temini

Haftada 1000 Adet/Adet pazarlık yapılabilir

İlişkili Ürünler

Video

Çoklu makine iletişimini destekleyen KDI Serisi Ekran Kontrolörü

En İyi Fiyatı Alın

Video

KDI Serisi Açık Dahili Parametrel Ayarlama Arayüzü Yüksek Doğruluk ve 0,1 Çözünürlüklü Ekran Denetleyicisi

En İyi Fiyatı Alın

Video

Çoklu Endeks Giriş Değişimi ve Sıcaklık Kompensasyonu ile Kesin KDI Serisi Ölçüm Ekran Kontrolörü

En İyi Fiyatı Alın

Video

Dijital ve analog ölçümlü KDI Serisi Işık Sütunu Ekran Kontrolörü

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

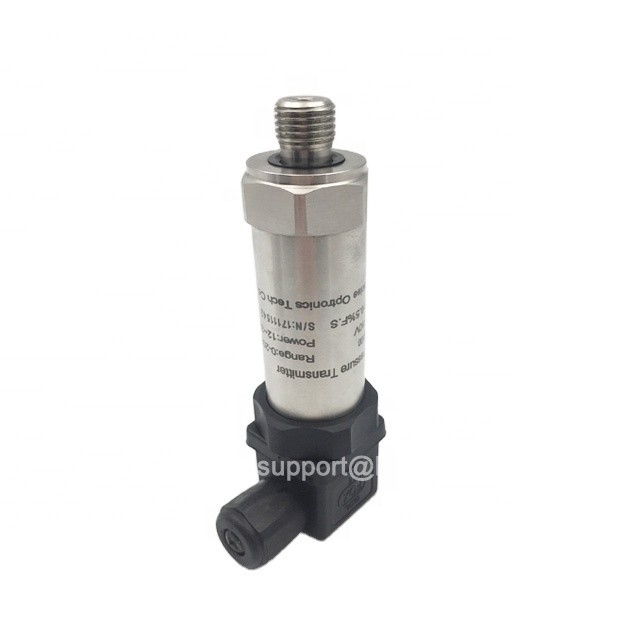

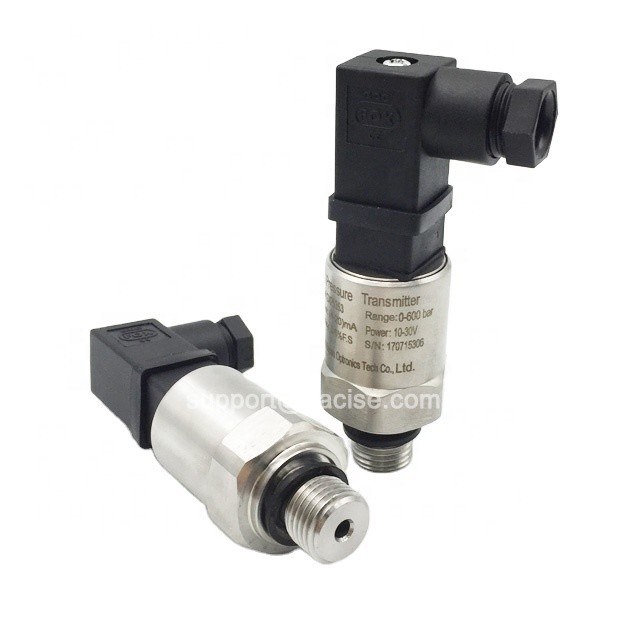

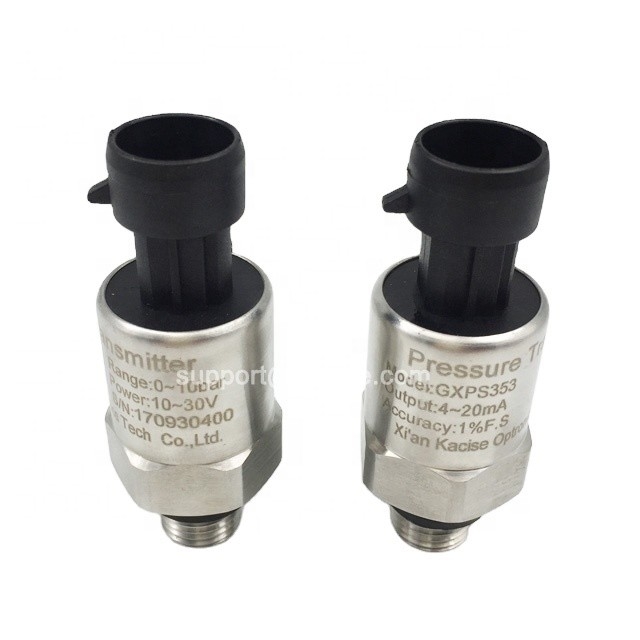

Economic Water, Air and Oil analog Pressure Sensor

Feature of analog pressure sensor

Accuracy ±0.1%F.S ±0.25%F.S ±0.5%F.S ±1.0%F.S

Various measuring range and signal output

High stability and high quality

Introduction of analog pressure sensor

The GXPS pressure sensor has the characteristics of high reliability, high stability, high accuracy. It contains a wide kind of transmitters which can meet different demands and applications. Widely used in gas, liquid pressure detection, such as water,oil,mildly corrosive,corrosive gas and liquid pressure.

Parameter of analog pressure sensor

Spec.	Value
Pressure range	-0.1MPa~1kPa......800MPa (customizable)
Temperature range	-40°C~85°C (customizable)
Load pressure	2 times nominal value pressure (2X)
Rupture pressure	4 times nominal value pressure (4X)
Accuracy	±0.1%, ±0.25%, ±0.5%, ±1.0%F.S (customizable)
Stability	Typical value 0.25% F.S, Max. value: 0.4%F.S
Operating temperature	-40°C~85°C (customizable)
Compensation temperature	-10°C~70°C (customizable)
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Output signal	4~20mA, 0~5V,0~10 V, 1~5V,1~10V, RS232, RS485,USB and so on (customizable)
Power supply	5VDC,24VDV,6~24VDC,12~30VDC, 9VDC battery, 3.6VDC battery and so on (customizable)
Insulation	>100M &;@50V
Electrical connection	Waterproof fixed cable, Hirschmann, Air plug and so on (customizable) protection grade : IP65, IP67, IP68
Pressure port	M20×1.5, G1/4, G1/2, R1/2, NPT1/2 (customizable)
Pressure type	Gage, Seal, Absolute	Response time: 10ms
Certificate	Intrinsically safe , CE, explosion suppression
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2

Package of analog pressure sensor

In order to choose the suitable pressure sensor for you, please send us below information with the feedback.

1. pressure range
2. accuracy
3. output signal
4. power supply voltage
5. pressure port
6. elec. connection
7. medium
8. temperature range

economic Water Air and Oil analog Pressure Sensor 5

economic Water Air and Oil analog Pressure Sensor 7

economic Water Air and Oil analog Pressure Sensor 14

We supply high quality pressure sensors and services, and welcome your inqury at any time.
