Name: IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KCF100
Price: 1,000.00 USD
Availability: InStock

Ev > Ürünler > Sıvı seviyesi ölçer >

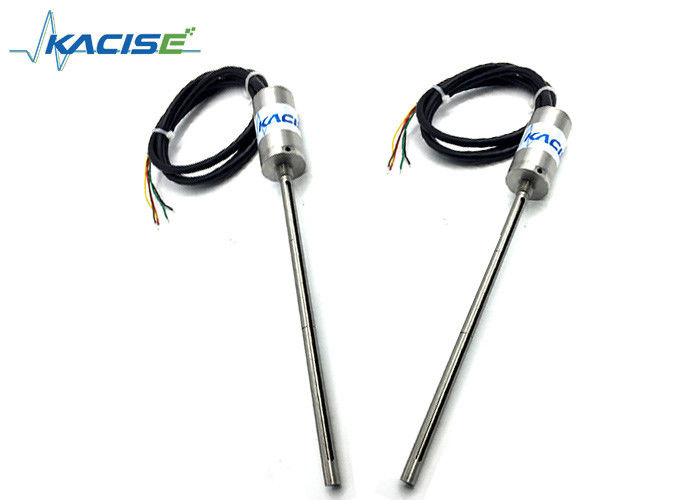

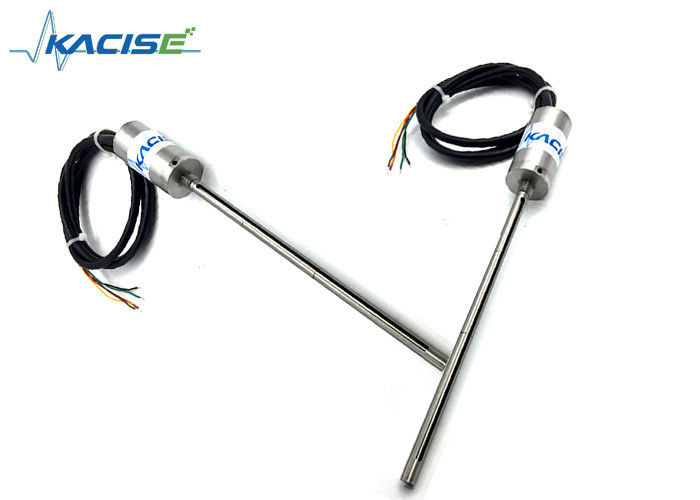

IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor

ultrasonic level transmitter

ultrasonic liquid level sensor

Place of Origin:

CHINA

Marka adı:

KACISE

Sertifika:

Model Number:

KCF100

Bizimle İletişim

Teklif Et

IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor

Ürün Ayrıntıları

Level range:

0~150mm

Accuracy:

0.5%, 1%

Medium:

Liquid, Solid

Output:

4-20mA

IP Grade:

IP68

Cable:

Polyethylene cable

Vurgulamak:

ultrasonic level transmitter

ultrasonic liquid level sensor

Ödeme ve Nakliye Şartları

Minimum Order Quantity

1PCS

Fiyat

pazarlık edilebilir

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability

1000 Piece/Pieces per Week negotiable

İlişkili Ürünler

Video

Çoklu makine iletişimini destekleyen KDI Serisi Ekran Kontrolörü

En İyi Fiyatı Alın

Video

KDI Serisi Açık Dahili Parametrel Ayarlama Arayüzü Yüksek Doğruluk ve 0,1 Çözünürlüklü Ekran Denetleyicisi

En İyi Fiyatı Alın

Video

Çoklu Endeks Giriş Değişimi ve Sıcaklık Kompensasyonu ile Kesin KDI Serisi Ölçüm Ekran Kontrolörü

En İyi Fiyatı Alın

Video

Dijital ve analog ölçümlü KDI Serisi Işık Sütunu Ekran Kontrolörü

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

4-20mA Temperature And Pressure Integrated Liquid Level Transmitter

Introduction

KCF100 series temperature and pressure integrated liquid level transmitter is an adjustable capacitance type liquid level transmitter developed by our company for high precision and high stability measurement of oil level and water level. It has short-circuit protection and certain over-voltage surge protection capability, and has the characteristics of fast response, wide voltage supply, strong load capacity and wide temperature measurement range. It supports two calibratable analog outputs, ModBus RTU communication protocol and fast forced zero function, the overall performance is stable and reliable.

Electronic interface and signals definition

Color	Definition
Red	+V
Black	GND
Brown	Level output 4-20mA
White	Temperature output 4-20mA
Green	RS485-A
Yellow	RS485-B

Parameter:

IP68 Liquid Level Switch / 4-20mA Output Integrated Liquid Level Sensor 0

Parameter:

Spec.	Numerical value
Level range	0~150mm
Temperature range	-30~100℃
Accuracy	Typical error of level 0.35% Temperature error ±2.5 °C
Response time	Level measurement is typically less than 1 seconds Temperature measurement is typically less than 3 seconds.
Load resistance	≤300Ω
Working current	< 60mA (when two 4-20mA output same time)
Operating temperature	-30°C~80°C
Compensation temperature	-10°C~80°C
Storage temperature	-40°C~125°C
Medium compatibility	All Caustic Medium Compatible with 316L
Output signal	4~20mA / RS485-Modbus
Power supplies	9~24Vdc
Connection	M10.00*1mm male thread
Cable	Polyethylene cable
IP Grade	IP68

Model Selection:

KUM-B
	Measurement Range
	A	5m
	B	10m
	C	15m
	D	20m
	E	30m
	F	40m
	G	50m
	H	60m
		Output Signal
		A	4-20mA
			Accuracy
			0.5	0.5%
			1.0	1%
				Power Supply
				A	24Vdc
				B	11~30Vdc
					Probe Type
					A	PVDF
					B	Aluminum alloy
					C	ABS
					D	Stainless steel 316L
					E	Teflon
					F	Titanium alloy

Applications and Installations:

Petroleum, chemical, electric power
Equipment supporting, hydraulic and other industries
