Name: KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KQS-FX1
Price: 5,000.00 USD
Availability: InStock

Ev > Ürünler > Environmental Monitoring >

KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC

Menşe yeri:

Çin

Marka adı:

KACISE

Sertifika:

Model numarası:

KQS-FX1

Bizimle İletişim

Teklif Et

KQS-FX1 Wind Direction Sensor with 360° Full Direction Low Starting Wind Speed ≤ 0.8 m/s and Wide Voltage Power Supply 5V or 9-30V DC

Ürün Ayrıntıları

Ölçüm Aralığı:

0-359° tam yön

Başlangıç Rüzgar Hızı:

≤ 0,8 m/sn

Kesinlik:

± 3 °

Çözünürlük:

1 °

Güç kaynağı:

5 V veya 9-30 V DC geniş voltaj isteğe bağlı

Sinyal çıkışı:

4-20 mA / 0-20 mA, 0-2,5 V / 0-5 V / 1-5 V, RS485 / RS232 opsiyonel

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı kutusu vardır, tüm kutular standart paketlerde veya müşteri isteğine göre paketlen

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 Adet/Adet pazarlık yapılabilir

İlişkili Ürünler

KQS-ZSYT Fully Automatic Direct-Diffuse Integrated Radiation Monitoring Instrument with High Accuracy Dual Tracking Global Applicability and Multiple Communication Options

En İyi Fiyatı Alın

KQZ-GF Photovoltaic Weather Station with Meteorological-Grade Sensors, Fully Waterproof Design, and Customizable Mounting Pole

En İyi Fiyatı Alın

KQZ-BX Portable Weather Station with Fully Waterproof Design, Built-in Battery, and Foldable/Telescopic Structure

En İyi Fiyatı Alın

KQS-GTM Tubular Multi-layer Soil Moisture Monitoring Instrument with FDR Technology for Multi-layer Monitoring (10/20/30/40 cm) and Solar Power

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

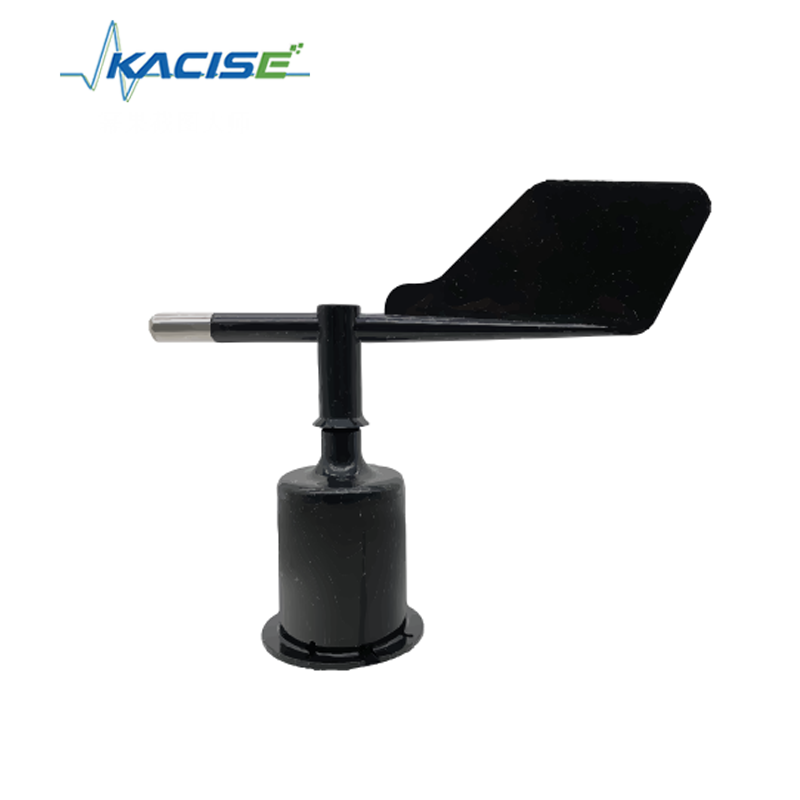

KQS-FX1 Wind Direction Sensor

Wind Direction Sensor KQS-FX1

Product Introduction

The KQS-FX1 is a full 360° wind direction sensor that uses a precision angle sensing element internally. The KQS-FX1-8 eight-direction wind sensor adopts a 4-optocoupler system to determine wind direction. It uses a low-inertia ABS wind vane to ensure quick response to wind direction changes and good dynamic performance. This product features excellent linearity, high accuracy, no dead zone, strong lightning resistance, easy observation, and stable and reliable operation. It is widely used in meteorology, oceanography, environmental monitoring, airports, ports, laboratories, agriculture and industry, transportation, and other fields.

Product Features

Independently patented design; each sensor is wind-tunnel calibrated
Uses high-quality bearings, low starting wind speed, and stable performance
Easy installation; supports both bottom and side cable outlet configurations

Technical Parameters

Item	Specification
Range	0-45 m/s (current/voltage output) 0-70 m/s (pulse, RS485, RS232 output)
Starting wind speed	≤ 0.8 m/s
Accuracy	±(0.5 + 0.02V) m/s (V = real-time wind speed value)
Resolution	0.1 m/s
Power consumption	0.48 W
Power supply	5 V or 9-30 V wide-voltage optional
Net weight	125 g
Signal output	Current: 4-20 mA/0-20 mA Voltage: 0-2.5 V / 0-5 V /1-5 V Serial port: RS485 / RS232 optional
Cable length	Standard: 0.8 m Others:

Dimension
