Name: KSLV651-A Compact Intelligent Level Sensor with IP68 Protection FEP Probe Material and Long-term Stability ≤0.1% FS/year
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSLV651-A
Price: 5,000.00 USD
Availability: InStock

Ev > Ürünler > Su kalitesi sensörü >

KSLV651-A Compact Intelligent Level Sensor with IP68 Protection FEP Probe Material and Long-term Stability ≤0.1% FS/year

Menşe yeri:

Çin

Marka adı:

KACISE

Sertifika:

Model numarası:

KSLV651-A

Bizimle İletişim

Teklif Et

KSLV651-A Compact Intelligent Level Sensor with IP68 Protection FEP Probe Material and Long-term Stability ≤0.1% FS/year

Ürün Ayrıntıları

Sipariş Uzunluğu L:

50-2000mm (koruyucu borulu, max 6000 mm)

Basınç Aralığı:

-0,1-2,5 MPa

Çalışma Akımı:

0-5 V / RS485 / CAN: 5-10 mA

Uzun vadeli istikrar:

≤%0,1 FS / yıl

Sıcaklık sürüklenmesi:

≤0,02% FS/°C (-40-80°C aralığında)

Prob Malzemesi:

Şubat

Koruma Seviyesi:

IP68

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

KWS-101 Dijital Bulantı - Karşılaştırıcı COD Sensörü

En İyi Fiyatı Alın

Video

Stable Water Quality Sensor ORP Digital Sensor Replacement 1mV Resolution with accurate ±6mV

En İyi Fiyatı Alın

Video

Yüksek KDM-110 Çevrimiçi PH Meter, 0-99.9C pH ve 0.1C çözünürlüğü ile sıcaklık tazminatı

En İyi Fiyatı Alın

Video

KDM-110 Çevrimiçi PH Meter ile 50'ye Kadar PH Ölçümleri Depolayın 0-99.9C pH Koruma Seviye IP65

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

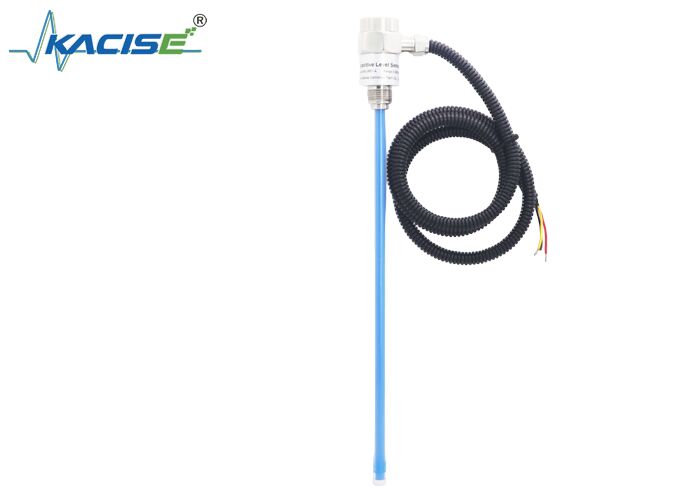

KSLV651-A Compact Level Sensor

Product Overview

The KSLV651-A Series Intelligent Capacitive Level Sensor by KACISE is engineered for demanding level measurement applications in wastewater, oils, chemical media, and environments with significant temperature and pressure variations. Featuring a single-probe capacitive design with no moving parts, this sensor delivers exceptional reliability, impact resistance, easy installation, and outstanding cost performance. It serves as an effective replacement for RF admittance, radar, ultrasonic, and magnetostrictive level instruments.

The core probe utilizes FEP material combined with a high-precision RF capacitive detection circuit. Advanced temperature compensation and linear correction by the internal processor automatically convert medium level changes into standard electrical signals. With automatic calibration and self-adaptive measurement capabilities, the sensor provides long-term stable level data across various media and complex conditions without manual intervention.

Key Features

Self-adaptive and self-calibrating for long-term stable true level value output
Excellent anti-fouling capability with strong resistance to material buildup, condensation, and bubbles
Simple structure with no moving parts ensuring high reliability and minimal maintenance
Multiple signal output options for easy integration with different systems
Unaffected by temperature, density, pressure, or other liquid properties
Maximum operating temperature ≤ 250°C; maximum operating pressure ≤ 4 MPa
Superior sealing performance with optional IP68 protection rating
Comprehensive protection against lightning, overcurrent, overvoltage, and power polarity reversal
Long-term stability: ≤ 0.1% FS per year
Temperature drift: ≤ 0.02% FS/°C (-40°C to +80°C range)
Measurement accuracy: ±3mm absolute error (≤300mm range), Class 1.0 (300-700mm), Class 0.5 (700-2000mm)

Technical Specifications

Parameter	Specification

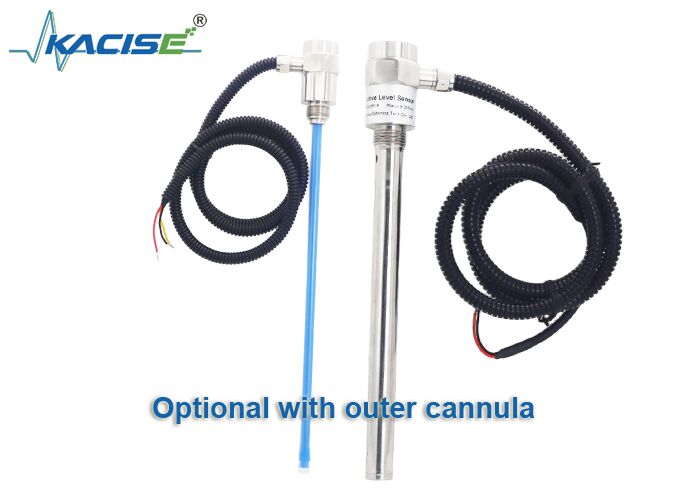

Order Length L	50-2000mm (with protective tube, max 6000 mm)
Accuracy	±3mm absolute error (L ≤ 300mm); Class 1.0 (300 < L ≤ 700mm); Class 0.5 (700 < L ≤ 2000mm)
Medium Temperature	-40 to 85℃
Ambient Temperature	-60 to 150℃

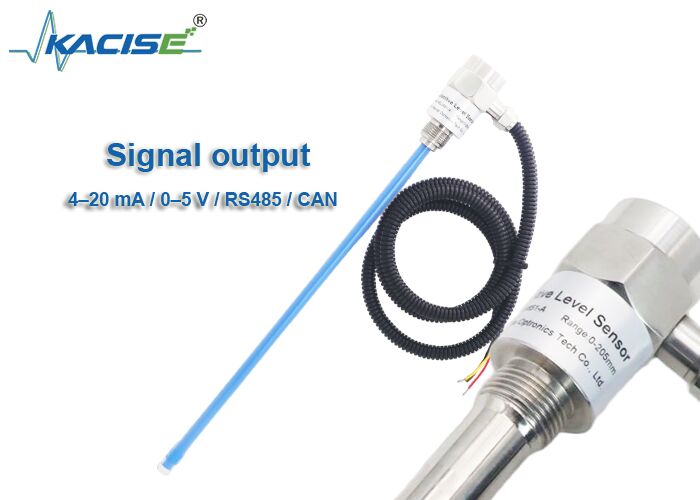

Signal Type	4-20mA / 0-5V / RS485 / CAN
Supply Voltage	4-20mA: 12-28Vdc (typical 24Vdc); 0-5V/RS485/CAN: 4.5-36Vdc; Custom options available
Operating Current	0-5V/RS485/CAN: 5-10mA
Pressure Range	-0.1 to 2.5 MPa
Long-term Stability	≤0.1% FS/year
Temperature Drift	≤0.02% FS/℃ (-40 to 80℃)
Protection Level	IP68

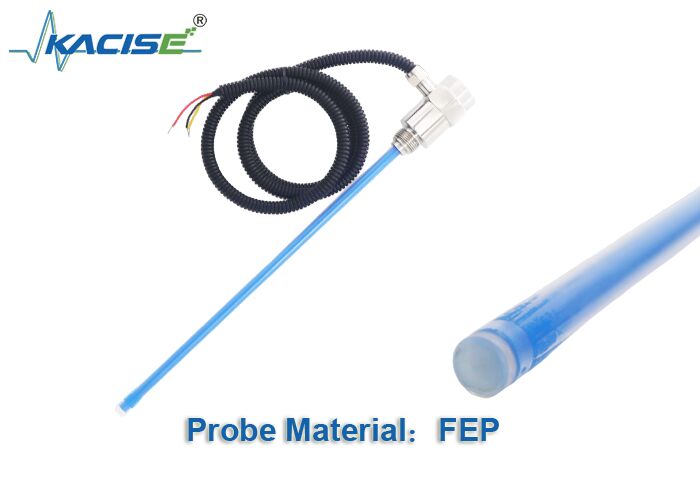

Probe Material	FEP
Probe Diameter	∅10 mm
Mounting Screw Material	SUS 304

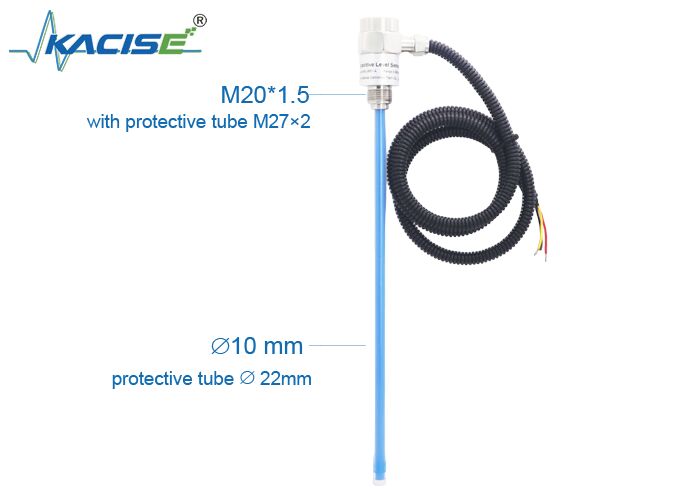

Mounting Method	Threaded installation M20×1.5 (with protective tube M27×2)
Dimensional Tolerance	±3 mm

Dimensional Diagram
