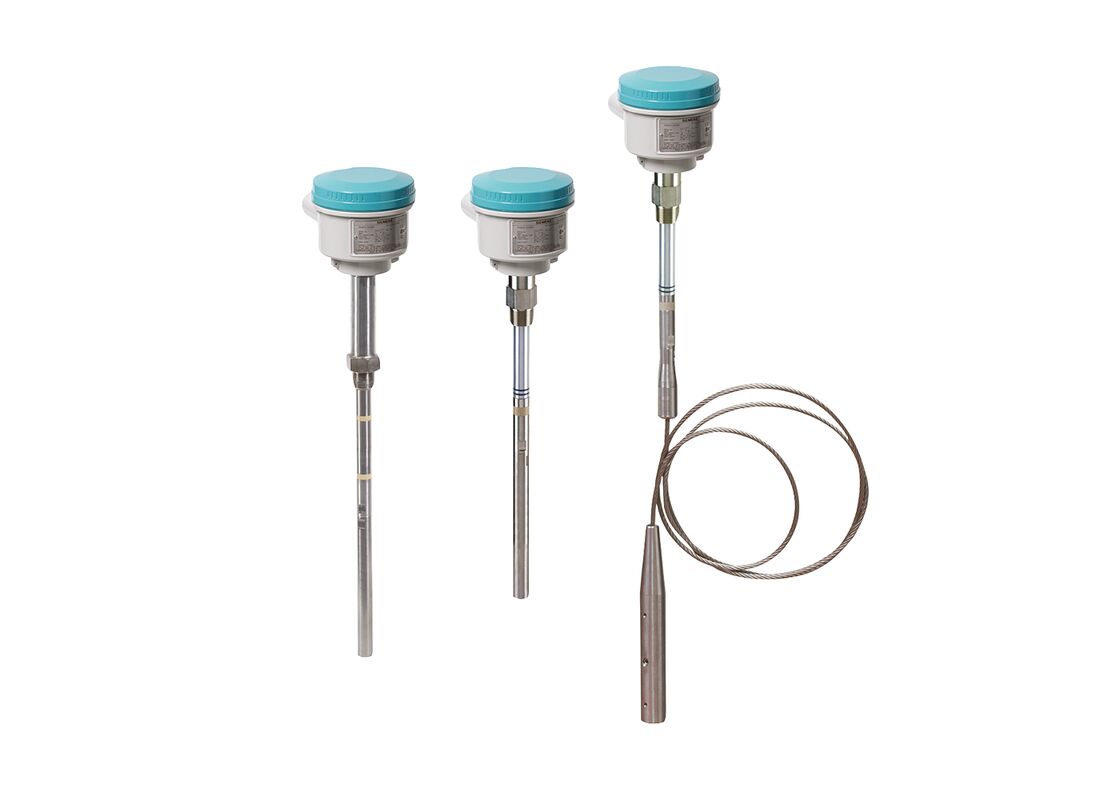

Pointek CLS300 - Standard
The Pointek CLS300 (standard version) is an inverse frequency shift capacitance level and material detection switch offering optional rod or cable configurations with configurable output. Designed for demanding industrial conditions, it reliably detects liquids, solids, slurries, foam, and interfaces even under high pressure and temperature. Its advanced tuning capability effectively compensates for material buildup on the probe.
Product Variants
7ML5650-.....-....
CLS300, STANDARD, ROD VERSION, THREAD/FLANGE |
7ML5651-.....-....
CLS300, ANALOG, CABLE VERSION, THREAD/FLANGE |
7ML5652-.....-....
CLS300, ANALOG, HIGH TEMP ROD, THREAD/FLANGE |
Related Products & Accessories
| Part Number |
Description |
| 7ML1830-1AP | EASY AIMER II, ALUMINIUM, 3/4 INCH NPT WITH 1 INCH GALVANIZED COUPLING |
| 7ML1830-1AQ | EASY AIMER II, ALUMINIUM, 3/4 INCH NPT WITH 3/4 - 1 INCH PVC COUPLING |
| 7ML1830-1JA | CABLE GLAND, 1/2" NPT, General Purpose DIP |
| 7ML1830-1JB | CABLE GLAND, 1/2" NPT, explosion proof |
| 7ML1830-1JC | M20 x 1.5 cable gland (general use and dust explosion protection) |
| 7ML1830-1JD | CABLE GLAND, M20 x 1.5 HF, (EP) |
| 7ML1830-1JE | Test Magnet |
| 7ML1830-1JF | AMPLIFIER / POWER SUPPLY DIGITAL VERSION |
| 7ML1830-1JK | LCD DISPLAY FOR CLS 200, DIGITAL |
| A5E01163688 | Kit, 316L stainless steel cable extension, 1 Meter, CLS300/LC300 |
| A5E01163689 | Kit, 316L stainless steel cable extension, 3 Meter, CLS300/LC300 |
| A5E01163690 | Kit, 316L stainless steel cable extension, 5 Meter, CLS300/LC300 |
| A5E01163691 | Kit, 316L stainless steel cable extension, 10 Meter, CLS300/LC300 |
| A5E01163693 | Kit, 316L stainless steel cable extension, 15 Meter, CLS300/LC300 |
| A5E01163695 | Kit, 316L stainless steel cable extension, 20 Meter, CLS300/LC300 |
| A5E01163698 | Kit, 316 stainless steel PFA cable extension, 3 METER, CLS300 |
| A5E01163699 | Kit, 316 stainless steel PFA cable extension, 5 METER, CLS300 |
| A5E01163700 | Kit, 316 stainless steel PFA cable extension, 10 METER, CLS300 |
| A5E01163701 | Kit, 316 stainless steel PFA cable extension, 15 METER, CLS300 |
| A5E01163702 | Kit, 316 stainless steel PFA cable extension, 20 METER, CLS300 |
| A5E01163719 | Kit, 316L stainless steel rod 180 mm (7.09") |
| A5E01163720 | Kit, 316L stainless steel rod 330 mm (12.99") |
| A5E01163721 | Kit, 316L stainless steel rod 580 mm (22.83") |
| A5E01163722 | Kit, 316L stainless steel rod 830 mm (32.68") |
| A5E01163723 | Replacement electronics with driver, CLS300 standard. For use with rod or Cable versions with maximum length of 5 m |
Key Benefits
- Active-Shield technology ensures measurement accuracy is unaffected by material buildup or nozzle interference in the active shield section
- Solid rod construction provides exceptional performance in extremely abrasive conditions
- Three LED indicators for adjustment control, output status, and power monitoring
- High-temperature version capable of operating up to 400 °C (752 °F)
Applications
The Pointek CLS300 standard version features three LED indicators with basic relay and solid-state switch alarms. Its robust design makes it particularly suitable for heavy solids applications with abrasive materials, such as those found in the mining industry. The fully potted electronics remain unaffected by condensation, dust, or vibration.
Wetted components are constructed from stainless steel with a PFA shield for high chemical resistance, while the high-temperature version uses ceramic and stainless steel. The device accurately detects materials with both low and high dielectric constants. The unique Active Shield technology effectively suppresses interference from material buildup or extended installation nozzles.
The modular design of the Pointek CLS300 offers extensive configuration options, process connections, extensions, and approvals to meet specific application requirements for temperature and pressure. This design simplifies ordering processes and reduces inventory needs. Available probe configurations include both rod and cable versions.
Primary Applications:
- Liquids and slurries
- Bulk solids
- High pressure and temperature environments
- Hazardous areas
- Milling and mining applications
Configuration
Technical Specifications
Mode of Operation
Inverse frequency shift capacitive level detection
Input
Measured variable: Change in picoFarad (pF)
Output
Relay output:
• 1 SPDT Form C relay
• Max. contact voltage: 30 V DC / 250 V AC
• Max. contact current: 5 A (DC) / 8 A (AC)
• Max. switching capacity: 150 W (DC) / 2 000 VA (AC)
• Time delay (ON and/or OFF): 1 ... 60 s
Solid-State Output
• Output: Galvanically isolated
• Protection: Against reversed polarity (bipolar)
• Max. switching voltage: 30 V (DC) / 30 V peak (AC)
• Max. load current: 82 mA
• Voltage drop: < 1 V, typical at 50 mA
• Time delay (pre or post switching): 1 ... 60 s
Accuracy
Resolution:
• Min. sensitivity (pF): 1 % change in actual capacitance
• Max. temperature error: 0.2 % of actual capacitance value
Installation Conditions
Location: Indoor/outdoor
Ambient Conditions
• Ambient temperature: -40 ... +85 °C (‑40 ... +185 °F)
• Storage temperature: ‑40 ... +85 °C (‑40 ... +185 °F)
Medium Conditions
• Applications: Liquids, bulk solids, slurries and interfaces, and viscous materials
• Relative dielectric constant εr: Min. 1.5
• Process temperature:
- Rod/Cable version: -40 ... +200 °C (-40 ... +392 °F)
- High-temperature version: -40 ... +400 °C (-40 ... +752 °F)
• Process pressure: -1 ... +35 bar g (-14.6 ... +511 psi g)
Design
• Material (enclosure): Powder-coated aluminum with gasket
• Degree of Protection: Standard: Type 4/NEMA 4/IP65
Optional: Type 4/NEMA 4/IP68
• Cable inlet: 2 x M20 x 1.5 thread (option: 2 x ½" NPT conduit entry including 1 plugged entry)
Controls and Displays
• Displays: 3 LEDs, for probe status, output status and power supply
• Potentiometers: 2 potentiometers for time delay and sensitivity
• Switches: 5 DIP switches for delay on/off, fail-safe high/low, time delay test/adjust, high/low sensitivity, test delay settings
Power Supply
• Supply: 12 ... 250 V AC/DC, 0 ... 60 Hz, galvanically isolated, 2 W
Certificates and Approvals
• General Purpose: CSA, FM, CE, UKCA, RCM
• Flameproof Enclosure with IS Probe: ATEX II 1/2 G Ex ia/db [ia Ga] IIC TX Ga/Gb, ATEX II 1/2 D Ex ia/tb [ia Da] IIIC TX Da/Db UKEX II 1/2 G Ex ia/db [ia Ga] IIC TX Ga/Gb, UKEX ATEX II 1/2 D Ex ia/tb [ia Da] IIIC TX Da/Db
• Dust Ignition Proof with IS Probe: ATEX II 1/2 D Ex ia/tb [ia Da] IIIC TX Da/Db UKEX II 1/2 D Ex ia/tb [ia Da] IIIC TX Da/Db CSA/FM Class II, Div. 1, Groups E, F, G CSA/FM Class III T4
• Explosion Proof Enclosure with IS Probe: CSA/FM Class I, Div. 1, Groups A, B, C, D CSA/FM Class II, Div. 1, Groups E, F, G CSA/FM Class III T4
• Marine: Lloyds Register of Shipping, Categories ENV1, ENV2, and ENV5
• Overfill Protection: WHG (Germany) VLAREM II (Belgium)
• Others: Pattern Approval (China)
