Teqwave H – Ultrasonic concentration meter

Ultrasonic concentration meter Teqwave H

Ultrasonic flow meter with warranty

Teqwave H concentration measurement device

Menşe yeri:

İsviçre

Marka adı:

Endress+Hauser

Sertifika:

Bizimle İletişim

Teklif Et

Teqwave H – Ultrasonic concentration meter

Ürün Ayrıntıları

Proses sıcaklığı:

0 - 120°C (32 - 248°F)

İşlem baskısı:

maks. 20 °C'de 16 bar (68 °F'de 232 psi)

Eski sertifika:

Tehlikeli olmayan alan

Giriş Koruması:

Sensör: IP67, IP69 isteğe bağlı

Vurgulamak:

Ultrasonic concentration meter Teqwave H

Ultrasonic flow meter with warranty

Teqwave H concentration measurement device

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Proline Prosonic Flow E 100 ultrasonic flowmeter

En İyi Fiyatı Alın

Proline Prosonic Flow G 300 ultrasonic flowmeter

En İyi Fiyatı Alın

Proline Prosonic Flow G 500 ultrasonic flowmeter

En İyi Fiyatı Alın

Proline Prosonic Flow I 400 ultrasonic flowmeter

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

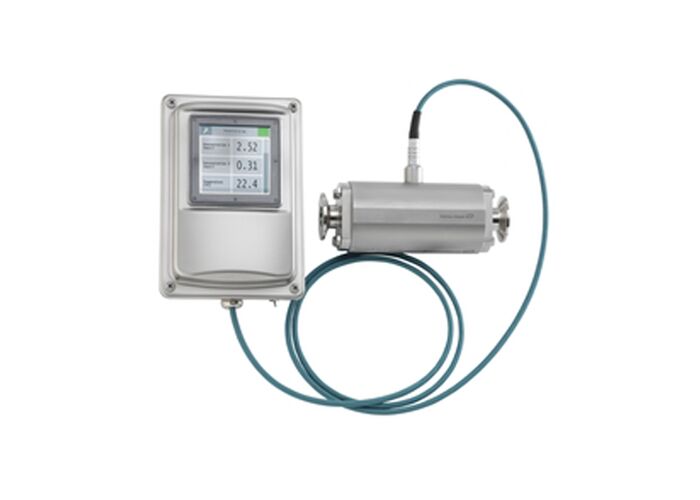

Teqwave H – Ultrasonic Concentration Meter

Inline device with best-in-class hygienic design - plug and play for food and beverage processes. High accuracy and repeatability with continuous quality monitoring of beverages and in cleaning processes.

Field of Application

Teqwave H is ideal for real-time liquid analysis in hygienic applications like spirits and soft drink production. The device provides highly accurate in situ concentration measurement with a hygienic design, reducing operational expenditure by monitoring multiple parameters simultaneously.

Key Benefits

High accuracy and repeatability - concentration calculation with latest algorithms
Fulfillment of hygienic requirements - easily cleanable full-bore sensor
Full transparency - constant monitoring of product quality without sampling
Highest process safety - reliable metering due to robust, maintenance-free sensor
Customized usage - innovative application concept, expandable for changing measuring tasks
Simplified process control - user-friendly operation and clear status visualization
Local data backup - integrated data storage for measured values up to 7.5 years

Technical Specifications

Measuring Principle	Ultrasonic concentration
Measured Variables	Concentration, sound velocity, temperature, acoustic density, dispersion
Nominal Diameter	DN 25 (1" DIN and ANSI)
Design	Inline, hygienic
Process Temperature	0 to 120°C (32 to 248°F)
Process Pressure	max. 16 bar at 20°C (232 psi at 68°F)
Power Supply	DC 24V ±20%

Measurement Accuracy

Acoustic Density	±0.01 g/cm³
Temperature	±0.5 K
Sound Velocity	±2 m/s

Measuring Ranges

Concentration	According to concentration app data sheet, maximum 0 to 100%
Sound Velocity	600 to 2000 m/s
Temperature	0 to +100°C (32 to +212°F)
Acoustic Density	0.7 to 1.5 g/cm³

Device Features

Sensor Features

Nominal diameter: DN 25 (1")
Sensor housing made of stainless steel (3-A, EHEDG)
Accurate and independent of flow profile
Fulfillment of hygienic requirements - easily cleanable full-bore sensor
Highest process safety - reliable metering due to robust, maintenance-free sensor

Transmitter Features

Industry-compliant, easy installation via DIN rail and pipe mounting set
3.5" TFT color touch screen or LED indication
4-20 mA, Modbus TCP outputs
Customized usage - innovative application concept
Local data storage for measured values up to 7.5 years

Materials & Certifications

Wetted Materials	Stainless steel 1.4404 (316L)
Transmitter Housing	Anodized aluminium and glass, optional 1.4301 and plastic
Ingress Protection	Sensor: IP67, IP69 optional Transmitter: IP40, optional IP67
Product Safety	CE, UKCA, RCM
Ex Certification	Non-hazardous area
