Prosonic Flow E Heat ultrasonic flowmeter

Prosonic ultrasonic flowmeter with warranty

Flow E Heat ultrasonic flow meter

industrial ultrasonic flowmeter for liquids

Menşe yeri:

İsviçre

Marka adı:

Endress+Hauser

Sertifika:

Bizimle İletişim

Teklif Et

Prosonic Flow E Heat ultrasonic flowmeter

Ürün Ayrıntıları

Ekran/Çalışma:

renkli LED'ler aracılığıyla durum bilgilerinin doğrudan okunması

çıktılar:

Darbe/Frekans

Girişler:

Hiçbiri

Güç Kaynağı:

DC 19,2 ila 28,8 V

Tehlikeli alan onayları:

Hiçbiri

Ürün güvenliği:

CE, C-Tick, EAC işaretleme

Vurgulamak:

Prosonic ultrasonic flowmeter with warranty

Flow E Heat ultrasonic flow meter

industrial ultrasonic flowmeter for liquids

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Proline Prosonic Flow E 100 ultrasonic flowmeter

En İyi Fiyatı Alın

Proline Prosonic Flow G 300 ultrasonic flowmeter

En İyi Fiyatı Alın

Proline Prosonic Flow G 500 ultrasonic flowmeter

En İyi Fiyatı Alın

Proline Prosonic Flow I 400 ultrasonic flowmeter

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

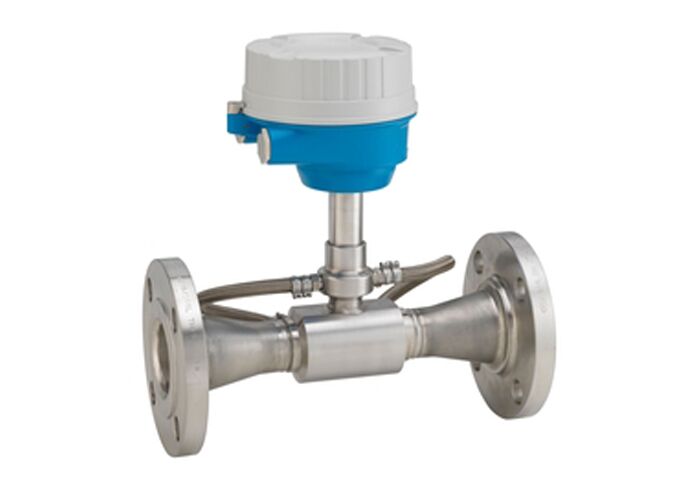

Prosonic Flow E Heat Ultrasonic Flowmeter

Industrial, certified heat flow sensor for improved energy consumption measurement. Full compliance with custody transfer regulations. Best choice for energy management of water (e.g., heating and cooling) across all industries.

Field of Application

Prosonic Flow E Heat is the perfect heat flow sensor for enhanced energy management throughout all industries. It offers recognized custody transfer approvals for heating and cooling applications and is optimized for flexible industrial use. The measuring principle is independent of pressure, density, temperature and conductivity.

Key Benefits

Full compliance with custody transfer regulations
Long-term stability - reliable sensor with robust industrial design
Energy and cost savings - optimized sensor for fully insulated pipes
Dependable flow measurement - high turndown
Effortless, safe operation - no commissioning needed, no unauthorized device access due to locked pulse output
Simple process indication - direct reading of status information via color LEDs
Increased reliability - comprehensive diagnostics

Technical Specifications

Measuring Principle	Ultrasonic flow
Nominal Diameter Range	DN 50 to 150 (2" to 6")
Measured Variables	Flow velocity, sound velocity
Max. Measurement Error	MID 004 accuracy class II (2%)
Measuring Range	0.025 to 5 m/s (0.02 to 16.4 ft/s) 0 to 6360 dm³/min (0 to 1680 gal/min)
Max. Process Pressure	PN 25/ ASME Cl. 150
Medium Temperature Range	0 to 150°C (32 to 302°F)
Ambient Temperature Range	-20 to 60°C (-4 to 140°F)

Materials & Construction

Wetted Materials	Measuring tube: 1.4301 (F304) Process Connection: 1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1.4306 (F304L); 1.4307 (F304L); A105
Sensor Housing Material	Stainless steel
Transmitter Housing Material	Compact: AlSi10Mg, coated
Degree of Protection	Standard: IP66/67, Type 4X enclosure With opened housing: IP20, Type 1 enclosure

Electrical & Operational

Display/Operation	Direct reading of status information via color LEDs
Outputs	Pulse/Frequency
Inputs	None
Digital Communication	None
Power Supply	DC 19.2 to 28.8 V

Certifications & Approvals

CE C-Tick EAC PED

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
3.1 material certification
