Name: Proline Prosonic Flow G 300 ultrasonic flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Prosonik Akış G 300
Price: 892.00 USD
Availability: InStock

Ev > Ürünler > Ultrasonik akış ölçer >

Proline Prosonic Flow G 300 ultrasonic flowmeter

Prosonic Flow G 300 ultrasonic flowmeter

ultrasonic flow meter with warranty

Proline ultrasonic flowmeter for liquids

Menşe yeri:

İsviçre

Marka adı:

Endress+Hauser

Sertifika:

Model numarası:

Proline Prosonik Akış G 300

Bizimle İletişim

Teklif Et

Proline Prosonic Flow G 300 ultrasonic flowmeter

Ürün Ayrıntıları

Maks. işlem baskısı:

0,7 ila 101 bar a (10,15 ila 1464,88 psi a)

Orta sıcaklık aralığı:

-50 ila 150 °C (-58 ila +302°F)

Ortam sıcaklık aralığı:

-40 ila 60 °C(-40 ila +140 °F)

Sensör muhafaza malzemesi:

Paslanmaz Çelik, 1.4404(316/316L), 1.4408/1.4409 (CF3M)

İletim:

AlSi10Mg, kaplamalı; 1.4409 (CF3M), 316LPolikarbonata benzer

Koruma Derecesi:

Kompakt versiyon: IP66/67, tip 4X muhafaza.Opsiyonel: Harici WLAN anteni: IP67

Vurgulamak:

Prosonic Flow G 300 ultrasonic flowmeter

ultrasonic flow meter with warranty

Proline ultrasonic flowmeter for liquids

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Proline Prosonic Flow E 100 ultrasonic flowmeter

En İyi Fiyatı Alın

Proline Prosonic Flow G 300 ultrasonic flowmeter

En İyi Fiyatı Alın

Proline Prosonic Flow G 500 ultrasonic flowmeter

En İyi Fiyatı Alın

Proline Prosonic Flow I 400 ultrasonic flowmeter

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

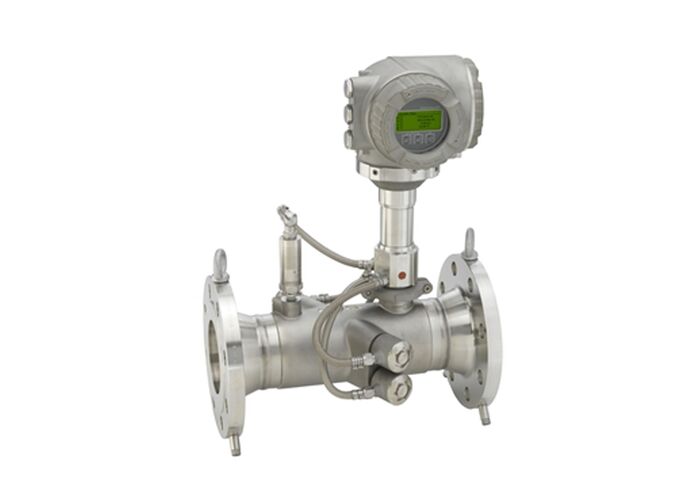

Proline Prosonic Flow G 300 Ultrasonic Flowmeter

The Prosonic Flow G 300 provides reliable flow measurement for a wide range of gas applications, even with wet gas and changing gas properties. Featuring a pressure-rated sensor housing with rupture disc for enhanced safety, this compact transmitter offers exceptional flexibility in operation and system integration.

Key Advantages

Flexible device with user-definable gas mixtures for demanding measuring tasks
Maximum reliability even with humid or wet gas - sensor design insensitive to condensate
High-performance process control with real-time pressure- and temperature-compensated values
Efficient multivariable solution with no pressure loss
Full access to process and diagnostic information with numerous, freely combinable I/Os
Integrated verification through Heartbeat Technology

Technical Specifications

Measurement Performance

Measurement Type	Accuracy	Range
Volume Flow (Standard)	±1.0% o.r. (3-40 m/s) ±2% o.r. (0.3-3 m/s)	0.3 to 40 m/s
Volume Flow (Optional Calibration)	±0.5% o.r. (3-40 m/s) ±1.0% o.r. (0.3-3 m/s)	0.3 to 40 m/s
Sound Velocity	±0.2% o.r.	-

Process Conditions

Parameter	Range
Medium Temperature	-50 to 150°C (-58 to +302°F) -50 to 100°C (-58 to +212°F) with integrated pressure cell
Process Pressure	0.7 to 101 bar a (10.15 to 1464.88 psi a)
Measuring Range (Gas)	0.3 m/s to 40 m/s

Measured Variables

Volume flow, corrected volume flow, mass flow, flow velocity, speed of sound, pressure, temperature, density, dynamic viscosity, energy flow, Wobbe index, methane fraction, calorific value, molar mass

Construction Materials

Component	Material
Measuring Tube	1.4408/1.4409 (CF3M)
Transducer	1.4404 (316, 316L), Titan Grade 2
Sensor Housing	Stainless Steel, 1.4404 (316/316L), 1.4408/1.4409 (CF3M)

Device Features

Sensor Features

Direct measurement of flow, pressure & temperature
Wetted parts: titanium / 316L
Maximum measuring accuracy: 0.5%
Measuring principle unaffected by gas composition

Transmitter Features

Compact dual-compartment housing with up to 3 I/Os
Backlit display with touch control and WLAN access
Remote display available
Freely configurable I/O functionality

Electrical & Communication

Inputs/Outputs

Type	Specifications
Outputs	3 outputs: 4-20 mA HART, 4-20 mA, Pulse/frequency/switch output, Double pulse output, Relay output
Inputs	Status input, 4-20 mA input
Digital Communication	HART, Modbus RS485
Power Supply	24V DC, 100 to 230 V AC

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, JPN, EAC, UK Ex, KC

Product Safety: CE, C-tick

Functional Safety: IEC 61508, applicable in safety-relevant applications per IEC 61511

Pressure: PED, CRN

Material: 3.1 material, NACE MR0175/MR0103
