Proline Promass Q 300 Coriolis flowmeter

Proline Promass Q 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Menşe yeri:

İsviçre

Marka adı:

Endress+Hauser

Sertifika:

Bizimle İletişim

Teklif Et

Proline Promass Q 300 Coriolis flowmeter

Ürün Ayrıntıları

Ölçüm Aralığı:

0 - 2 400 000 kg/saat (0 - 88183 lb/dak)

Maks. işlem baskısı:

PN 100, Sınıf 600, 63K

Sensör muhafaza malzemesi:

1.4404 (316L), en yüksek korozyon direnci

Koruma Derecesi:

IP66/67, tip 4X muhafaza

Tehlikeli alan onayları:

ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, Birleşik Krallık Ex, KC

Ürün güvenliği:

CE, C-Tick, EAC işaretleme

Vurgulamak:

Proline Promass Q 300 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Proline Promass S 300 Coriolis flowmeter

En İyi Fiyatı Alın

Proline Promass P 500 Coriolis flowmeter

En İyi Fiyatı Alın

Proline Promass Q 300 Coriolis flowmeter

En İyi Fiyatı Alın

Proline t-mass F 500 thermal mass flowmeter

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

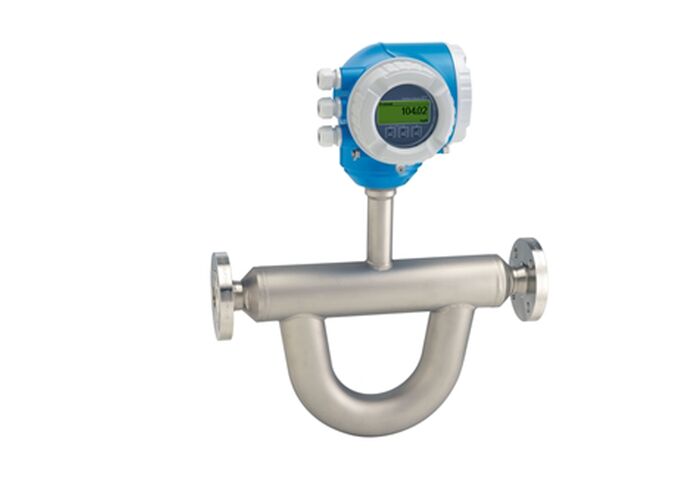

Proline Promass Q 300 Coriolis Flowmeter

The Promass Q 300 delivers the highest measurement accuracy for mass flow, volume flow, and density. Optimized for custody transfer applications and liquid applications with entrained gas, this flowmeter features a compact transmitter with flexible operation and advanced connectivity options.

Key Specifications

Maximum Measurement Error	Mass flow (liquid): ±0.10% (standard), 0.05% (option) Volume flow (liquid): ±0.10% Mass flow (gas): ±0.25% Density (liquid): ±0.2 kg/m³ (standard), ±0.1 kg/m³ (option)
Measuring Range	0 to 2,400,000 kg/h (0 to 88,183 lb/min)
Medium Temperature	Standard: -50 to +205°C (-58 to +401°F) Option: -196 to +150°C (-321 to +302°F)
Maximum Process Pressure	PN 100, Class 600, 63K
Nominal Diameter Range	DN 25 to 250 (1 to 10")

Field of Application

Designed for custody transfer applications and optimized for liquid applications with entrained gas. The compact transmitter offers high flexibility in operation and system integration with single-side access, remote display, and improved connectivity options.

Key Benefits

Unmatched accuracy for mass flow, volume flow, and density measurement
Optimized performance for liquids with entrained gas using Multi-Frequency Technology
Reduced process measuring points through multivariable measurement
Space-saving installation with no inlet/outlet run requirements
Comprehensive process and diagnostic information access
Integrated verification through Heartbeat Technology

Measuring Principle

Coriolis principle operating independently of physical fluid properties such as viscosity or density.

Technical Features

Sensor Features:
• Multi-Frequency Technology for entrained gas applications
• Multivariable measurement (flow, density, temperature)
• No inlet/outlet run requirements
• Mass flow accuracy: ±0.05% (PremiumCal)
• Density accuracy: ±0.2 kg/m³
• High turndown with low pressure loss

Transmitter Features:
• Compact dual-compartment housing with up to 3 I/Os
• Backlit display with touch control and WLAN access
• Remote display capability
• Freely configurable I/O functionality
• Heartbeat Technology for integrated verification

Materials & Construction

Wetted Materials	Measuring tube: 1.4404 (316/316L); stainless steel for cryogenic applications Connection: 1.4404 (316/316L)
Sensor Housing	1.4404 (316L), highest corrosion resistance
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; stainless steel for hygienic design

Approvals & Certifications

Hazardous Areas: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, UK Ex, KC
Product Safety: CE, C-tick, EAC marking
Functional Safety: IEC 61508, applicable per IEC 61511
Metrological: ISO/IEC 17025, OIML R117, NTEP, MC
Marine: LR, DNV, ABS, BV, CCS
Pressure: PED, CRN, AD 2000
Material: 3.1 material, NACE MR0175/MR0103, PMI
Hygienic: 3-A, EHEDG, cGMP
