Name: Proline Promass P 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass P 500
Price: 2,540.00 USD
Availability: InStock

Ev > Ürünler > Elektromanyetik Akış Ölçer >

Proline Promass P 500 Coriolis flowmeter

Proline Promass P 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Menşe yeri:

İsviçre

Marka adı:

Endress+Hauser

Sertifika:

Model numarası:

Proline Promass P 500

Bizimle İletişim

Teklif Et

Proline Promass P 500 Coriolis flowmeter

Ürün Ayrıntıları

Ölçülen Değişkenler:

Kütle akışı, yoğunluk, sıcaklık, hacim akışı, düzeltilmiş hacim akışı, referans yoğunluk, konsantras

Maks. ölçüm hatası:

Kütle fl±±0,10 %Yoğunluk (sıvı): ±0,0005 g/cm

Ölçüm Aralığı:

0 ila 70 000 kg/h (0 ila 2570 lb/min)

Maks. işlem baskısı:

PN 40, Sınıf 150, 20K

Orta sıcaklık aralığı:

Standart: –50 ila +150 °C (–58 ila +302 °F)Seçenek: –50 ila +205 °C (–58 ila +401 °F)

、:

、

Vurgulamak:

Proline Promass P 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Proline Promass S 300 Coriolis flowmeter

En İyi Fiyatı Alın

Proline Promass P 500 Coriolis flowmeter

En İyi Fiyatı Alın

Proline Promass Q 300 Coriolis flowmeter

En İyi Fiyatı Alın

Proline t-mass F 500 thermal mass flowmeter

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

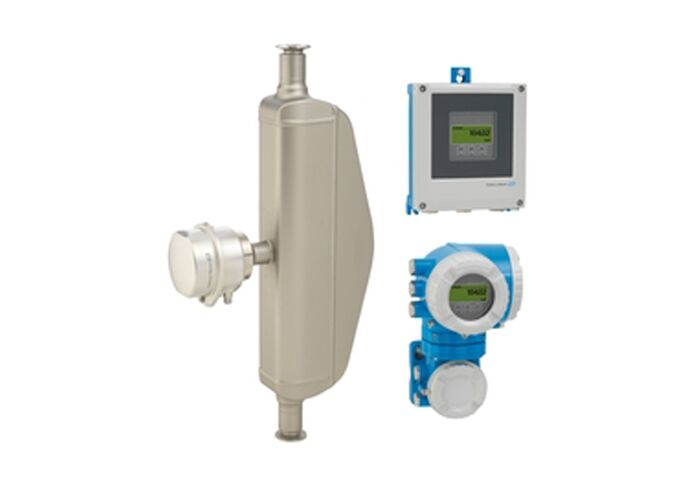

Proline Promass P 500 Coriolis Flowmeter

The Promass P 500 is a specialized Coriolis flowmeter designed for sterile processes in the life sciences industry. This remote version with up to 4 I/Os delivers exceptional accuracy and compliance for demanding biotech applications.

Key Applications

Specialist for sterile processes in life sciences, dedicated to applications requiring highest compliance with industry guidelines and regulations.

Technical Specifications

Maximum Measurement Error

Mass flow (liquid): ±0.10%

Volume flow (liquid): ±0.10%

Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Medium Temperature

Standard: -50 to +150 °C (-58 to +302 °F)

Option: -50 to +205 °C (-58 to +401 °F)

Maximum Process Pressure

PN 40, Class 150, 20K

Device Features

Sensor Features

ASME BPE, 3-A and EHEDG conform & low delta ferrite
Electropolished measuring tube in 1.4435 (316L)
Fast recovery from CIP/SIP processes
Space-saving installation with no inlet/outlet run requirements

Transmitter Features

Remote version with up to 4 I/Os
Backlit display with touch control and WLAN access
Numerous freely combinable I/Os and fieldbuses
Integrated verification with Heartbeat Technology

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Materials & Construction

Component	Material
Measuring Tube	1.4435 (316L)
Connection	1.4435 (316L); 1.4404 (316/316L)
Sensor Housing	1.4301 (304), corrosion resistant
Transmitter Housing	AlSi10Mg, coated; 1.4409 (CF3M) similar to 316L; Polycarbonate

Environmental Specifications

Ambient Temperature

Standard: -40 to +60 °C (-40 to +140 °F)

Option: -50 to +60 °C (-58 to +140 °F)

Degree of Protection

Sensor remote version: IP66/67, type 4X enclosure

Option: IP69

Communication & I/O

Outputs

4-20 mA HART (active/passive), 4-20 mA WirelessHART, 4-20 mA (active/passive), Pulse/frequency/switch output (active/passive), Double pulse output (active/passive), Relay output

Inputs

Status input, 4-20 mA input

Digital Communication

HART, PROFIBUS DP, PROFIBUS PA, FOUNDATION Fieldbus, Modbus RS485, MODBUS TCP over Ethernet-APL, PROFINET, PROFINET over Ethernet-APL, Ethernet/IP, OPC-UA

Certifications & Approvals

Hazardous Area: ATEX, IECEx, cCSAus, NEPSI, INMETRO, EAC, KC
Product Safety: CE, C-tick, EAC marking
Functional Safety: IEC 61508, applicable per IEC 61511
Metrological: ISO/IEC 17025 calibration, ISO 9001:2015 compliance
Pressure: PED, CRN
Material: 3.1 material certificate
Hygienic: 3-A, EHEDG, ASME BPE, ISPE, cGMP

Power Supply

DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area)
