Name: Proline Promass E 200 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass E 200
Price: 2,540.00 USD
Availability: InStock

Ev > Ürünler > Elektromanyetik Akış Ölçer >

Proline Promass E 200 Coriolis flowmeter

Proline Promass E 200 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Menşe yeri:

İsviçre

Marka adı:

Endress+Hauser

Sertifika:

Model numarası:

Proline Promass E 200

Bizimle İletişim

Teklif Et

Proline Promass E 200 Coriolis flowmeter

Ürün Ayrıntıları

Ölçüm Aralığı:

0 ila 70 000 kg/h (0 ila 2570 lb/min)

Maks. işlem baskısı:

PN 100, Sınıf 600, 63K

Orta sıcaklık aralığı:

–40 ila +150 °C (–40 ila +302 °F)

Ortam sıcaklık aralığı:

–40 ila +60 °C (–40 ila +140 °F)

Sensör:

1.4301 (304), korozyona dayanıklı

Verici muhafaza malzemesi:

AlSi10Mg, kaplamalı

Vurgulamak:

Proline Promass E 200 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Proline Promass S 300 Coriolis flowmeter

En İyi Fiyatı Alın

Proline Promass P 500 Coriolis flowmeter

En İyi Fiyatı Alın

Proline Promass Q 300 Coriolis flowmeter

En İyi Fiyatı Alın

Proline t-mass F 500 thermal mass flowmeter

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

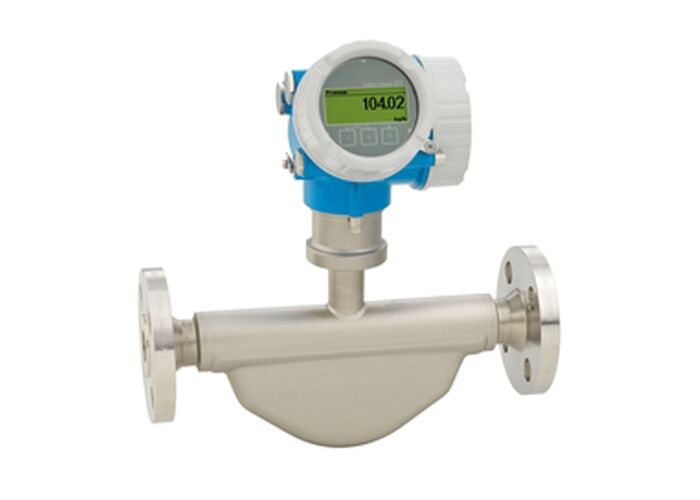

Proline Promass E 200 Coriolis Flowmeter

Genuine loop-powered flowmeter for minimized cost of ownership. Accurate measurement of liquids and gases for a wide range of standard applications.

Field of Application

The robust Promass E has a long-standing reputation as a reliable solution for accurately measuring liquids and gases in a wide range of standard applications in the chemical industry. With genuine loop-powered technology, Proline E 200 enables cost-effective and seamless integration into existing infrastructures.

Key Benefits

Cost-effective multipurpose device; an alternative to conventional volumetric flowmeters
Fewer process measuring points with multivariable measurement (flow, density, temperature)
Space-saving installation with no inlet/outlet run requirements
Convenient device wiring with separate connection compartment
Safe operation with external display and touch control, eliminating the need to open the device
Integrated verification through Heartbeat Technology

Technical Specifications

Measuring Principle

Coriolis

Nominal Diameter Range

DN 8 to 50 (⅜ to 2")

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Medium Temperature

-40 to +150 °C (-40 to +302 °F)

Max Process Pressure

PN 100, Class 600, 63K

Ambient Temperature

-40 to +60 °C (-40 to +140 °F)

Measurement Accuracy

Measurement Type	Accuracy
Mass Flow (Liquid)	±0.25% (standard)
Volume Flow (Liquid)	±0.25%
Mass Flow (Gas)	±0.50%
Density (Liquid)	±0.0005 g/cm³

Materials & Construction

Wetted Materials

Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)

Sensor Housing

1.4301 (304), corrosion resistant

Transmitter Housing

AlSi10Mg, coated

Degree of Protection

IP66/67, type 4X enclosure

Electrical & Communication

Power Supply

DC 18-35 V (4-20 mA HART)
DC 18-30 V (20 mA HART, 4-20 mA)
DC 9-32 V (PROFIBUS PA)

Outputs

4-20 mA HART (passive)
4-20 mA (passive)
Pulse/frequency/switch output (passive)

Digital Communication

HART, PROFIBUS PA, FOUNDATION Fieldbus

Display/Operation

4-line backlit display with touch control
Configuration via local display and operating tools
Remote display available

Certifications & Approvals

Hazardous Area

ATEX, IECEx, cCSAus, JPN, UK Ex

Product Safety

CE, C-Tick

Functional Safety

IEC 61508, applicable in safety-relevant applications per IEC 61511

Pressure Approvals

PED, CRN

Hygienic Approvals

3-A, EHEDG, cGMP

Metrological

Calibration performed on accredited facilities (ISO/IEC 17025)

Material Certificates

3.1 material
