Name: Deltabar PMD75B - differential pressure transmitter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Deltabar PMD75B
Price: 152.00 USD
Availability: InStock

Ev > Ürünler > Presizyon basınç sensörü >

Deltabar PMD75B - differential pressure transmitter

Deltabar PMD75B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD75B

Menşe yeri:

İsviçre

Marka adı:

Endress+Hauser

Sertifika:

Model numarası:

Deltabar PMD75B

Bizimle İletişim

Teklif Et

Deltabar PMD75B - differential pressure transmitter

Ürün Ayrıntıları

Kesinlik:

:%0,075'e kadar Platin:%0,055'e kadar

Ölçüm Aralığı:

10 mbar...40 bar(0,15 psi...600 psi)

Proses sıcaklığı:

-40°C...+110°C (-40°F...+230°F)

Orta sıcaklık aralığı:

-40°C...+110°C(-40°F...+230°F)

Basınç ölçüm aralığı:

10 mbar.... 40 bar (0,15 psi... 600 psi)

Ana ıslanan parçalar:

316L, AlaşımC

Vurgulamak:

Deltabar PMD75B pressure transmitter

differential pressure sensor with warranty

precision pressure transmitter PMD75B

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Deltabar PMD55B - differential pressure transmitter

En İyi Fiyatı Alın

Honeywell 24CE Series Miniature housing IEC945-5-1, EN60947-5-1. Metal housing. lP66. CE. Silver contacts

En İyi Fiyatı Alın

Honeywell 1CPS Series Single head cable pull. UL, CSA, CE, SIL3. IP67. NEMA 1, 4, 12, 13. Silver & gold contacts.

En İyi Fiyatı Alın

GK Series Key Operated Safety Interlock Switch with IP67 NEMA 1 4 12 13 Rating and -25 °C to 85 °C Operating Range

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

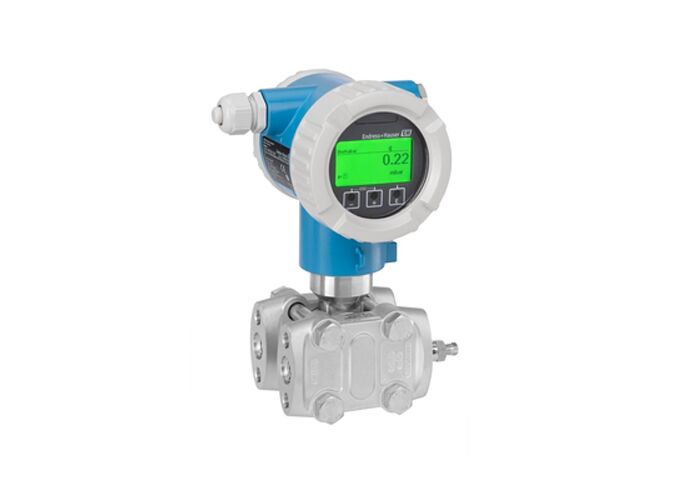

Deltabar PMD75B Differential Pressure Transmitter

The Deltabar PMD75B represents the latest generation of differential pressure transmitters, offering robust construction and intuitive operation both locally and remotely. This advanced instrument supports wireless control via mobile app using secure Bluetooth connectivity.

Key Specifications

Accuracy

Standard: up to 0.075%
Platinum: up to 0.055%

Measuring Range

10 mbar...40 bar (0.15 psi...600 psi)

Process Temperature

-40°C...110°C (-40°F...230°F)

Pressure Range

10 mbar...40 bar (0.15 psi...600 psi)

Static Pressure

Up to 250 bar (3750 psi)

Wetted Materials

316L, AlloyC

Field of Application

This transmitter is designed for differential pressure monitoring in liquids or gases. The intuitive software includes guided wizards for setup and proof testing, minimizing operational errors and supporting condition-based maintenance to significantly improve technical service efficiency.

Key Benefits

Wireless device control in process areas using SmartBlue App without process interruption
Enhanced safety by reducing on-site accidents and protecting equipment in hard-to-reach areas
Reduced systematic failures with error-free SIL commissioning and guided proof testing

Technical Specifications

Parameter	Specification
Measuring Principle	Differential Pressure
Long Term Stability	0.05% of URL/year 0.13% of URL/5 years 0.23% of URL/10 years
Ambient Temperature	-40°C...85°C (-40°F...185°F)
Process Pressure Limit	250 bar (3750 psi)
Process Connection	NPT 1/4-18, RC1/4
Communication	4...20 mA HART, PROFINET with Ethernet-APL, Bluetooth® wireless technology (optional)

Special Features

Bluetooth® operation and maintenance with SmartBlue App, RFID TAG for easy identification, and plug-and-play functionality for simplified integration.

Certifications & Approvals

ATEX, CSA, IECEx, JPN Ex, KC, INMETRO, NEPSI, UK Ex
Safety: SIL
Design: EN 10204-3.1, NACE MR0175, NACE MR0103, AD2000
Drinking Water: NSF, KTW

Application Limits

None - suitable for a wide range of industrial applications.
