Name: TDLAS200B Series Laser Methane Sensor
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: TDLAS200B
Price: 72.00 USD
Availability: InStock

Ev > Ürünler > Gaz Detektörü Sensörü >

TDLAS200B Series Laser Methane Sensor

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Menşe yeri:

ÇİN

Marka adı:

KACISE

Sertifika:

Model numarası:

TDLAS200B

Bizimle İletişim

Teklif Et

Ürün Ayrıntıları

Hacim:

53 ml

Ölçüm aralığı:

0~5000ppm,0-10000ppm

Tespit nesnesi:

Metan (CH4)

Ölçüm ilkesi:

Lazer absorpsiyon spektrumu (TDLAS)

Statik algılama sınırı:

0,5 ppm@25°C 5SPS (tipik değer, ayrıntılar için lütfen bizimle iletişime geçin)

En hızlı yanıt süresi:

90'lar

Vurgulamak:

TDLAS200B laser methane sensor

methane gas detector sensor

TDLAS200B methane sensor with warranty

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Video

TDLAS200 Otomatik Kalibrasyon Lazer Metan Sensörü

En İyi Fiyatı Alın

Video

TDLAS200B Series Laser Methane Sensor

En İyi Fiyatı Alın

TDLAS301 Methane Laser Sensor with High Measurement Accuracy and Fast Response for Continuous CH4 Detection

En İyi Fiyatı Alın

TDLAS200 Yüksek Duyarlılıklı Lazer Metan Sensörü

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

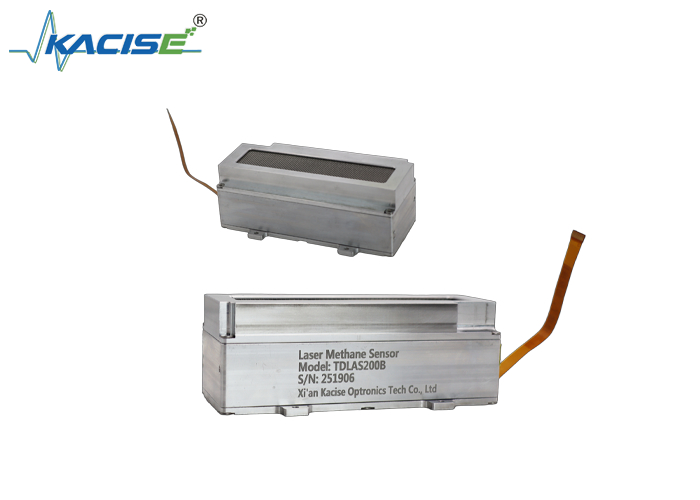

TDLAS200B Series Laser Methane Sensor

Introduction

The TDLAS201 laser gas telemetry module utilizes laser absorption spectroscopy technology. It emits a specific wavelength laser beam to detect target gas presence within the optical path range, accurately measuring gas concentration.

Key Features

High sensitivity with exclusive response to target gas
Built-in reference cell for automatic calibration
Easy integration with digital interface providing direct status and concentration output

Measuring Principle

Molecular absorption spectrum: Methane molecules absorb light at specific wavelengths.

Beer-Lambert's law: Light absorption by methane gas is proportional to gas thickness and concentration.

This technology uses wavelength-specific laser beams to measure methane concentration through light attenuation analysis, with unique methane selectivity. Multiple reflection detection cells enhance sensitivity by allowing repeated laser passes through the measured gas.

Technical Specifications

Parameter	Specification
Detection object	Methane (CH4)
Measurement principle	Laser absorption spectrum (TDLAS)
Static detection limit	0.5ppm@25℃ 5SPS (typical value)
Volume	53ml
Fastest response time	90s
Measurement range	0-5000ppm, 0-10000ppm
Measurement deviation	0-200 ppm: ±2 ppm 200-1000 ppm: ±1% 1000-5000 ppm: ±2% 5000-10000 ppm: ±3%
12hrs drift	+/-1.5ppm
Operating temperature	-20~50℃
Power supply	5-12VDC 1W (typical) 6W (max) Recommended 12V 1A
Dimensions	1155940mm
Gas inlet/outlet port	Pagoda direct M-5AU-4

Detection Module Composition

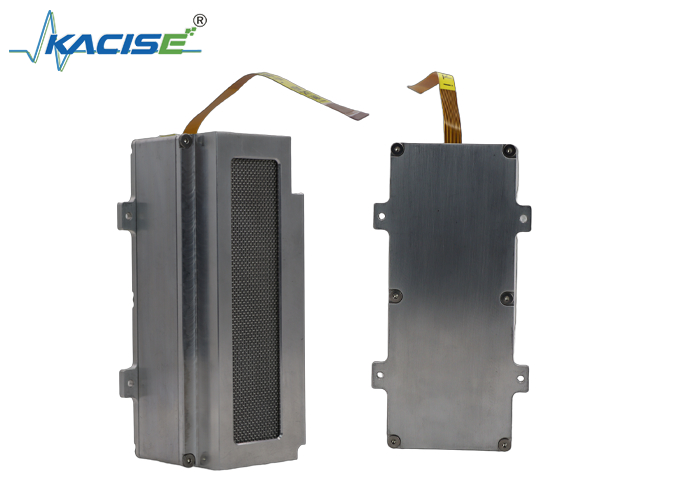

TDLAS200B (Diffusion) detection module main unit measures 115*59*40mm (excluding cables and gas connectors).

For detailed specifications or custom requirements, please contact our technical team.
