Name: MLSS Analyzer with 500-20000 mg/l Range and Scattered/Transmitted Light Comparison for Self-Cleaning in Sewage and Industrial Wastewater Treatment
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: SS400G, SS300G
Price: 5,000.00 USD
Availability: InStock

Ev > Ürünler > Su kalitesi sensörü >

MLSS Analyzer with 500-20000 mg/l Range and Scattered/Transmitted Light Comparison for Self-Cleaning in Sewage and Industrial Wastewater Treatment

500-20000 mg/l MLSS Analyzer

Scattered/Transmitted Light Comparison MLSS Sensor

Self-Cleaning Water Quality Sensor

Marka adı:

Yokogawa

Model numarası:

SS400G, SS300G

Bizimle İletişim

Teklif Et

MLSS Analyzer with 500-20000 mg/l Range and Scattered/Transmitted Light Comparison for Self-Cleaning in Sewage and Industrial Wastewater Treatment

Ürün Ayrıntıları

Ölçüm Nesnesi:

Bir kanalizasyonda veya endüstriyel atık su arıtma tesisinde bir havalandırma tankında karışık sıvı

Ölçüm İlkesi:

Dağınık/iletilen ışık karşılaştırma yöntemi

Ölçüm aralığı:

500 ila 20000 mg/l

Ölçülen nesnenin sıcaklığı:

0 ila 50 ℃

Vurgulamak:

500-20000 mg/l MLSS Analyzer

Scattered/Transmitted Light Comparison MLSS Sensor

Self-Cleaning Water Quality Sensor

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

En İyi Fiyatı Alın

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

En İyi Fiyatı Alın

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

En İyi Fiyatı Alın

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

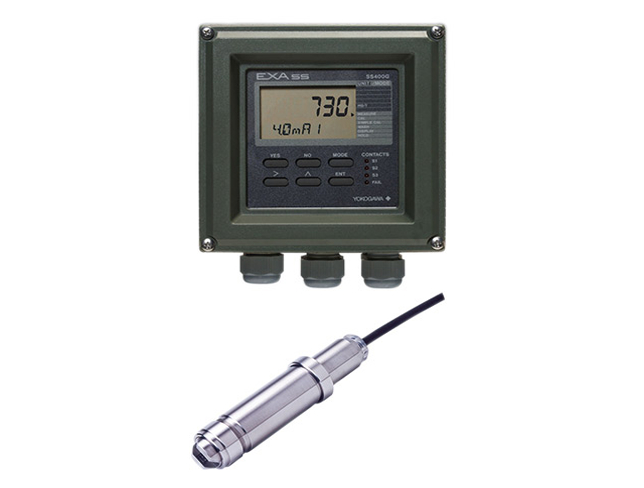

MLSS Analyzers SS400G, SS300G

The SS400 MLSS analyzer is a precision measuring system designed for continuous monitoring of mixed liquor suspended solids (MLSS) concentration in activated-sludge treatment processes at sewage and industrial wastewater treatment facilities.

Key Features

Converter

Wide measuring range: 500-20,000 mg/l (ppm)
Dual output ranges: 0-1,000 mg/l to 0-20,000 mg/l
Multiple contact outputs for system integration
Advanced self-diagnostic functions including light source failure detection

Sensor

Compact, lightweight probe design for easy maintenance
Durable construction with minimal component replacement needs
Pulse-driven light emission technology reduces interference
Optical system design minimizes boundary surface light reflection
Optional jet cleaning unit available
Multiple holder configurations including floating ball option

Technical Specifications

Converter

Measuring Object	Concentration of mixed liquor suspended solids (MLSS) in aeration tanks
Measuring Method	Transmitted/scattered light comparison method
Measuring Range	500 to 20,000 mg/l
Output Signal	Two 4-20 mA DC outputs (max load resistance: 600 Ω)
Contact Output	Four outputs
Environmental Rating	JIS C0920 watertight, IEC IP65, NEMA 4X
Power Supply	100-240 V AC, 50/60 Hz or 24 V DC
Weight	Approx. 2.5 kg

Sensor

Design	Probe-like sensor
Measuring Principle	Scattered/transmitted light comparison method
Operating Range	500 to 20,000 mg/l
Material Composition	Stainless steel (304SS) body, glass window, nitrile rubber O-ring, PVC cable
Cable Options	3, 5, 10, 15 or 20 m lengths
Cleaning Options	Optional jet cleaning unit (not compatible with floating ball holder)
Performance	Linearity: ±4.5% F.S., Repeatability: 2% F.S., Stability: ±2% F.S./day
Weight	Approx. 0.5 kg plus 0.12 kg per meter of cable

Note: Specifications may vary based on configuration options. Consult manufacturer for application-specific recommendations.
