Name: Reagent Type Residual Chlorine Sensor with 0-10 mg/L Measuring Range and 100-240 V DC Power Supply for Water Treatment Plants
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: RC800D
Price: 5,000.00 USD
Availability: InStock

Ev > Ürünler > Su kalitesi sensörü >

Reagent Type Residual Chlorine Sensor with 0-10 mg/L Measuring Range and 100-240 V DC Power Supply for Water Treatment Plants

Reagent Type Residual Chlorine Sensor

0-10 mg/L Measuring Range Chlorine Analyzer

100-240 V DC Power Supply Water Quality Sensor

Marka adı:

Yokogawa

Model numarası:

RC800D

Bizimle İletişim

Teklif Et

Reagent Type Residual Chlorine Sensor with 0-10 mg/L Measuring Range and 100-240 V DC Power Supply for Water Treatment Plants

Ürün Ayrıntıları

Ölçülen nesne:

Suda serbest klor veya artık klor (toplam klor)

Ölçüm sistemi:

Dönen elektrot kullanarak amperometrik yöntem (polarografik yöntem)

Ölçüm aralığı:

0-10 mg/L

Güç kaynağı:

100 ila 240 V DC, 50/60 Hz

Vurgulamak:

Reagent Type Residual Chlorine Sensor

0-10 mg/L Measuring Range Chlorine Analyzer

100-240 V DC Power Supply Water Quality Sensor

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

En İyi Fiyatı Alın

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

En İyi Fiyatı Alın

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

En İyi Fiyatı Alın

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

Reagent Type Residual Chlorine Sensor Unit RC800D

Reliable Chlorine Measurements in Water Treatment Plants Since 1959

No.1 Process analyzer supplier to Japanese market*

"Reliable Chlorine monitoring and minimize Chlorine injection"

"Continuous automatic cleaning and achieved less maintenance time"

"Maintenance remotely and reduce maintenance time"

Many of our customers face these challenges - Yokogawa Chlorine Analyzers resolve them.

The RC800D residual chlorine analyzer employs a polarographic system that uses rotating platinum electrodes to provide a continuous online measurement of residual chlorine concentration. It is possible to separate residual chlorine (free chlorine + combined-chlorine) from free chlorine for measurements by appropriate use of reagents.

The RC800D is suitable for various water condition measurements and gives you a stable and high-quality measurement thanks to the rotation electrodes and superior reagent pump.

The RC800D is intended for water distribution measurements at pumping stations, water delivery points, schools, and public facilities.

*Based on a Yokogawa survey in 2019

Key Features

Amperometric measurement of free chlorine or total chlorine (polarographic method)
Measure Free chlorine or residual chlorine (total chlorine) continuously in water
Unique rotation electrode method keeps sensor clean and reduces maintenance cycle
Superior reagent pump realizes stable measurement regardless of sample conditions
Easy maintenance structure, modularized motor unit, and diagnostics functions strongly support regular maintenance
Remote wash and calibration functions are available
RC800D is equipped with Manual calibration and Auto Calibration, 2 points correction, Basic (reference) sensitivity calibration, and circuit open Zero calibration
Remote range switching is available

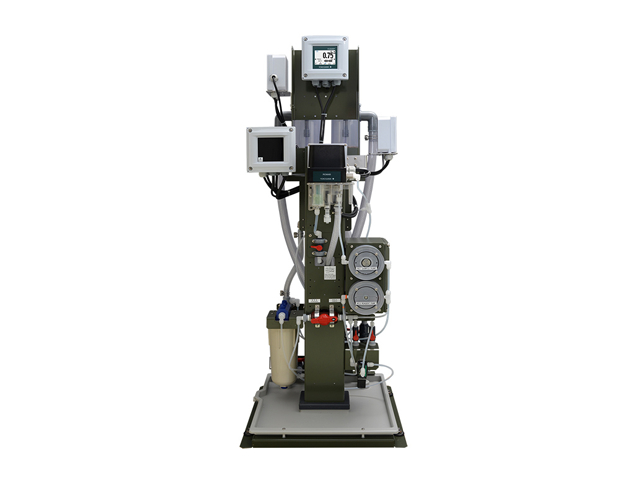

RC800D Left Side View

RC800D Easy to Use Touch Screen Display

Structure

TC8000D Structure Diagram

Applications

Each process at treatment plant: from reservoir to treated water, distribution system

Water Purification Treatment
Stabilization
Flocculation
Settling Basins
Chlorination
Clean water reservoir
Distributing pump
Distribution tank & Piping

Use Case Diagram

Specifications

Measured Object	Free chlorine or residual chlorine (total chlorine) in water
Measuring System	Amperometric method (Polarographic method) using rotating electrode
Measuring Range	0-10 mg/L
Sample Conditions	Temperature: 0 to 50°C (Temperature compensation is effective within 0 to 40°C)
	pH: 3 to 9
	Flow Rate: 1 to 4 L/min, for pure water or municipal water application.
	5 to 10 L/min, for raw water or sea water application.
	10 to 20 L/min, for secondary sewage treatment application.
Pressure	20 to 500 kPa
Power Supply	100 to 240 V DC, 50/60 Hz
Digital Communication	Modbus TCP/IP, Modbus RTU
Installation	Indoor (Outdoor use requires protection against rain. Direct sunlight must be avoided.)

Performance

Linearity	±3% of reading or ±0.03 mg/L whichever is greater
Repeatability	±1% of reading or ±0.01 mg/L whichever is greater
