Name: High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Sensör SC42/SX42
Price: 5,000.00 USD
Availability: InStock

Ev > Ürünler > Su kalitesi sensörü >

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

316 Stainless Steel Conductivity Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

Marka adı:

Yokogawa

Model numarası:

Sensör SC42/SX42

Bizimle İletişim

Teklif Et

High Pressure High Temperature Conductivity Sensor with 316 Stainless Steel 2-Electrode Design and Pt1000 Temperature Element

Ürün Ayrıntıları

Hücre sabitleri:

0.1/cm; 1.0/cm

Sıcaklık Elemanı:

nokta1000

Yapı Malzemeleri:

316 Paslanmaz Çelik

Tasarım Sytle:

2-elektrotlu

Vurgulamak:

316 Stainless Steel Conductivity Sensor

2-Electrode Design Water Quality Sensor

Pt1000 Temperature Element Contacting Sensor

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 iş günü

Ödeme koşulları

Moneygram, Western Union, T/T, D/P, D/A, L/C

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

WE420 Sodium Analyzer with Ion Selective Electrode and Reference Electrode for Online Continuous Measurement

En İyi Fiyatı Alın

DM8C Vibration Type Liquid Density Analyzer with RS-232C Digital Output High Sensitivity and Excellent Stability

En İyi Fiyatı Alın

FT-NIR Analyzer with 900-2500 nm Wavelength Range 0.005 cm⁻¹ Wavenumber Accuracy and 0.007 cm⁻¹ Resolution

En İyi Fiyatı Alın

WE410 Silica Analyzer with On-Demand Mode Reduced Maintenance Time and Built-in Temperature Control for Steam Quality Monitoring

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

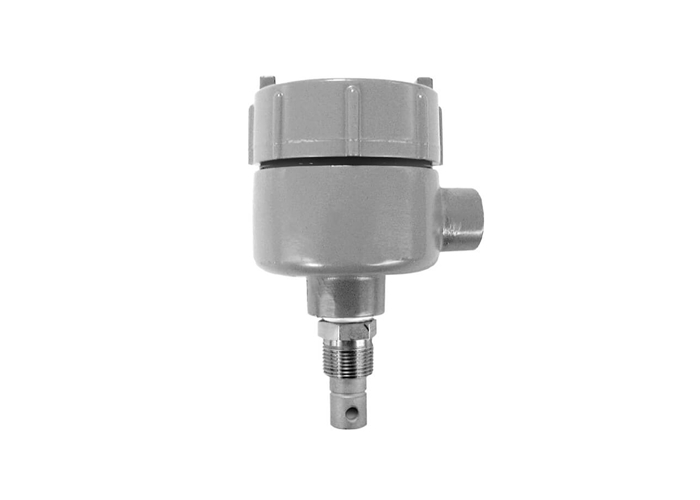

High Pressure/High Temperature Conductivity Sensor SC42/SX42

High Pressure - High Temperature Contacting sensor primarily designed for Boiler Blowdown and Condensate Leak detection applications. These conductivity cells have extremely high temperature and pressure ratings: the threaded types can handle 16 bar at 200°C and the flanged types can handle 40 bar at 250°C.

Product Selection

Specification	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore (Flanged)
Model Code	SC42 Small Bore	SX42 Large Bore	SX42 Large Bore
Cell Constants	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm	0.1/cm; 1.0/cm
Ranges	0.4-2,000 µS/cm; 4.0-5,000 µ/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm	0.02-2,000 µS/cm; 0.2-20,000 µS/cm
Temperature Element	Pt1000	Pt1000	Pt1000
Pressure Rating	7 bar/100 PSIG	16 bar/228 PSIG	40 bar/570 PSIG
Maximum Temperature	100°C/212°F	up to 200°C	up to 250°C
Installation Connections	3/4" NPT Fitting; 1", 1.5" or 2" Tri-Clamp	1" NPT	2" 600lb ANSI Flange
Integral Cable	NO	NO	NO
Materials Of Construction	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Design Style	2-Electrode	2-Electrode	2-Electrode

Key Features

Designed for high-pressure, high-temperature applications
Ideal for boiler blowdown and condensate leak detection
Available in small bore and large bore configurations
Multiple installation connection options
Constructed from durable 316 stainless steel
2-electrode design for reliable conductivity measurement
