Name: Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Model A-105
Price: 152.00 USD
Availability: InStock

Ev > Ürünler > Presizyon basınç sensörü >

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

100 psi to 15

000 psi Pressure Transducer

0.50% Full-Scale Accuracy Pressure Transducer

Marka adı:

Honeywell

Model numarası:

Model A-105

Bizimle İletişim

Teklif Et

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

Ürün Ayrıntıları

Vurgulamak:

100 psi to 15

000 psi Pressure Transducer

0.50% Full-Scale Accuracy Pressure Transducer

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 iş günü

Ödeme koşulları

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Honeywell 434 435 437 Series Wing Union Hammer Union Pressure Transducer with Weco® 1502/2002/2202 Compatibility 4-20mA Output and 9-28Vdc Supply Voltage

En İyi Fiyatı Alın

Honeywell Model DS Digital Pressure Transducer with 0.1% Accuracy 1200 Hz Analog Response and 380 Readings/Second

En İyi Fiyatı Alın

Honeywell Model Z Pressure Transducer with 0.25% Accuracy 0.5 to 60,000 psig/a Range and Stainless Steel Construction

En İyi Fiyatı Alın

Honeywell Model A-105 Pressure Transducer with 100 psi to 15,000 psi Range 0.50% Full-Scale Accuracy and 17-4 PH Stainless Steel Construction

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

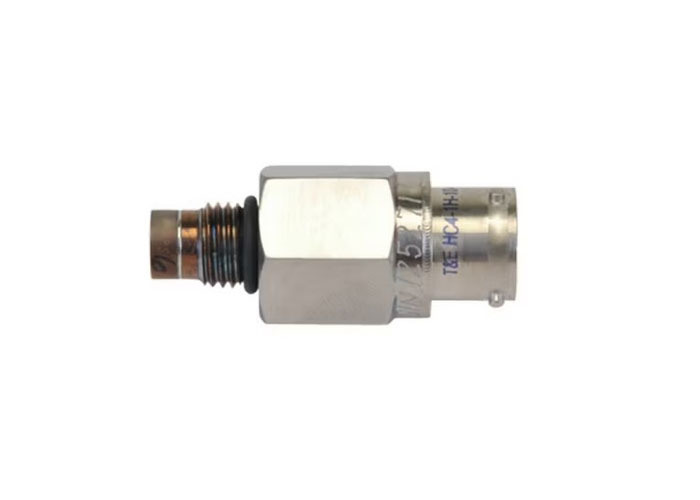

Honeywell Model A-105 PRESSURE TRANSDUCERS

Flush diaphragm pressure transducers. 100 psi to 15,000 psi. 0.50% full-scale accuracy.

The Model A-105 gauge pressure transducers feature a unitized 17-4 PH stainless steel, wetted diaphragm construction. This design combines a thin diaphragm with heavy sidewalls made from a single piece of stainless steel, offering both ruggedness and sensitivity for low pressure measurement.

Available in pressure ranges from 100 psig to 15,000 psig, these transducers are suitable for corrosive fluid environments. The Model A-105 features welded electrical connectors integrated into the transducer body, making it ideal for applications involving rough handling or requiring an all-welded, stainless steel transducer. All units incorporate four active bonded strain gauges arranged in a Wheatstone-bridge configuration.

Key Features

100 psig to 15000 psig range
Flush mount design
No dead volume
Miniature footprint
Stainless steel construction
CE approved

Industry Applications

Industry
Energy
Life Sciences
Manufacturing
