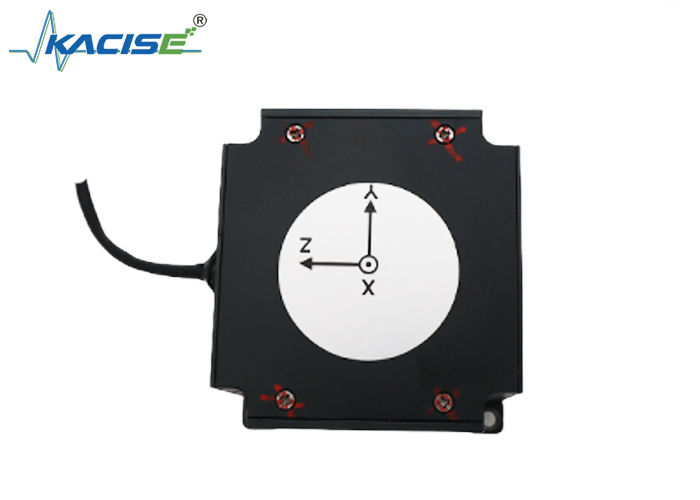

Name: KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR312F-L
Price: 431.00 USD
Availability: InStock

Ev > Ürünler > Elektronik Giroskop Sensörü >

KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias

3-axis fiber optic gyroscope sensor

fiber optic gyroscope with low bias

compact electronic gyroscope sensor

Menşe yeri:

Çin

Marka adı:

KACISE

Sertifika:

Model numarası:

KSGYR312F-L

Bizimle İletişim

Teklif Et

KSGYR312F-L 3-Axis Fiber Optic Gyroscope 71.5×68×45mm ≤0.1°/h Bias

Ürün Ayrıntıları

Besleme voltajı:

+5V

Boyutlar:

71.5 × 68 × 45mm

Başlangıç Zamanı:

≤3s

Önyargı (100'ler pürüzsüz, sabit sıcaklık):

≤0.1 °/s

Güç dağılımı (tam sıcaklık):

<4W

Ağırlık:

<320g

Vurgulamak:

3-axis fiber optic gyroscope sensor

fiber optic gyroscope with low bias

compact electronic gyroscope sensor

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 iş günü

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Three-axis gyroscope sensor for robot, Nonlinearity ≤0.05(%FR), zero-bias stability 12(°/h)

En İyi Fiyatı Alın

±5V Supply Voltage Electronic Gyroscope Sensor for Robotics Applications

En İyi Fiyatı Alın

Cross Coupling ≤2 % and Nonlinearity ≤0.05 %FR MEMS Gyro for High Precision Navigation

En İyi Fiyatı Alın

Fiber optic gyroscopes for aircraft navigation and platform stability testing with ≤0.01(°) / H Bias drift

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

KSGYR312F-L Three Axis Fiber Optic Gyroscope

Product Overview

This inertial angle rate sensor utilizes the optical Sagnac effect to measure rotational angular velocity along the sensitive axis. Its digital closed-loop detection circuit precisely extracts optical path differences caused by external angular speed, enabling real-time angular velocity signal detection through voltage signal modulation and feedback control.

The system consists of an optical angular velocity sensitive unit and signal detection components, providing triaxial angle increment data and internal temperature information.

Key Specifications

Attribute	Value
Supply voltage	+5V
Dimensions	71.56845mm
Start time	≤3s
Bias (100s smooth, fix temperature)	≤0.1°/h
Power dissipation (full temperature)	<4W
Weight	<320g

Product Features

Precisely measures angular velocity of moving objects
All-solid-state design with no rotating or friction parts
Extended operational lifespan
Instantaneous startup capability
Simple, robust structure
Simultaneous three-axis angular velocity measurement

Applications

Photoelectric elevator systems
Flight control platforms
Strapdown inertial navigation
Optical and photographic instruments
Platform stabilizers
Inertial measurement instruments

Technical Specifications

Performance Characteristics

Parameter	Value
Bias stability (100s smooth -45°C~+70°C)	≤0.5°/h
Bias repeatability	≤0.1°/h
Random walk	≤0.01°/h1/2
Scale factor non-linearity	≤20ppm
Scale factor repeatability	≤10ppm
Dynamic range	±500°/s

Environmental Specifications

Parameter	Value
Operate temperature	-45°C～+70°C
Storage temperature	-50°C～+80°C
