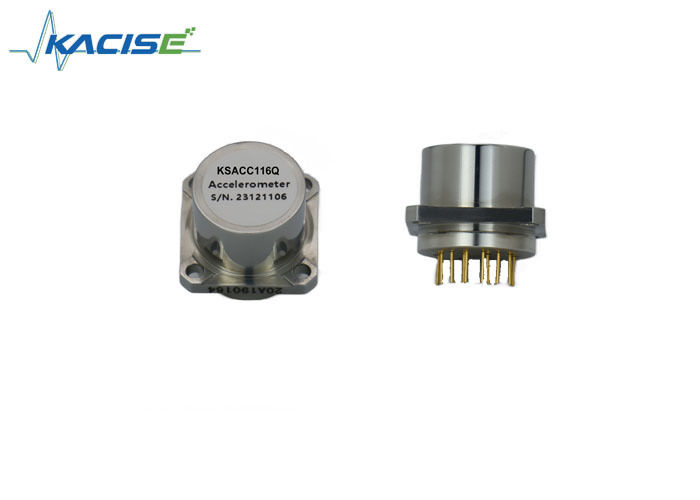

Name: KSACC116Q Quartz Accelerometer ±80g Range 35g Weight
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSACC116Q
Price: 431.00 USD
Availability: InStock

Ev > Ürünler > Elektronik Giroskop Sensörü >

KSACC116Q Quartz Accelerometer ±80g Range 35g Weight

quartz flexible accelerometer ±80g range

quartz accelerometer 35g weight

electronic gyroscope sensor with warranty

Place of Origin:

CHINA

Marka adı:

kacise

Sertifika:

Model Number:

KSACC116Q

Bizimle İletişim

Teklif Et

KSACC116Q Quartz Accelerometer ±80g Range 35g Weight

Ürün Ayrıntıları

Güç voltajı:

± 12 ~ ± 18V DC

Ağırlık:

≤35g

Boyut:

Ø18.2 × 23.6mm

Çözünürlük:

<5μg

Çalışma sıcaklığı:

-45 ° C ~+80 ° C

Vurgulamak:

quartz flexible accelerometer ±80g range

quartz accelerometer 35g weight

electronic gyroscope sensor with warranty

Ödeme ve Nakliye Şartları

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

İlişkili Ürünler

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

En İyi Fiyatı Alın

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

En İyi Fiyatı Alın

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

En İyi Fiyatı Alın

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

KSACC116Q Quartz Flexible Accelerometer ±80g Range 35g Weight

Key Attributes

Power Voltage	±12~±18V DC
Weight	≤35g
Size	Ø18.2×23.6mm
Resolution	<5μg
Operating Temperature	-45°C~+80°C

Product Description

The KSACC116Q Quartz Flexible Accelerometer is a precision instrument comprising quartz glass flexible support and advanced servo circuit based on the principle of inertia. When subjected to acceleration, the output is precisely proportional to the input acceleration.

This accelerometer features current output with high output impedance, allowing users to select sampling resistance according to requirements without affecting system stability.

Our quartz flexible accelerometer series includes models ranging from high-precision μg KSACC111Q for satellite microgravity measurement to cost-effective, rugged KSACC117Q models, with applications across aerospace, aviation, marine, automotive, petroleum, and geotechnical engineering fields.

Key Features

Excellent index repeatability
Analog output
Compact size and light weight
Wide load resistance range
Triangle precision mounting flanges
Ideal for unmanned aircraft and petroleum pipelines
Two model options available

Applications

Inertial monitoring systems
Inertial navigation systems
Flight control systems
Vibration monitoring
Oil drilling platforms and geological exploration
Inertial measurement units
Motion monitoring equipment

Technical Specifications

Power Supply Parameters
Power Voltage	12~18VDC
Power at 25°C	90mW
Supply current	6mA
Product Performance
Range	±80g
Size	Ø18.2×23.6
Bias	<5mg
Bias stability	≤40ug
Bias temperature sensitivity	40ug/°C
Bias repeatability	≤40ug
Scale factor	0.6～1.3mA/g
Scale factor temperature sensitivity	60ppm/°C
Second order nonlinear coefficient	≤50μg/g²
Second order nonlinearity coefficient repeatability	≤20μg/g²
Scale factor repeatability	40ppm
Noise	<5μg
Threshold	<5 μg
Bandwidth	<200 Hz
Weight	≤35g
Environmental Specifications
Operating temperature	-45°C～80°C
Storage temperature	-55°C～80°C
Random vibration	15g(20~2000Hz)
Sine vibration	10g peak,50 to 800Hz
Working shock	50g
Shock	100g
