Name: KSGYR101M MEMS Quartz Gyroscope Sensor 50Hz Bandwidth 5V DC
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR101M
Price: 431.00 USD
Availability: InStock

Ev > Ürünler > Elektronik Giroskop Sensörü >

KSGYR101M MEMS Quartz Gyroscope Sensor 50Hz Bandwidth 5V DC

MEMS quartz angular rate sensor

50Hz bandwidth rate sensor

fluid level meter sensor

Place of Origin:

CHINA

Marka adı:

kacise

Sertifika:

Model Number:

KSGYR101M

Bizimle İletişim

Teklif Et

KSGYR101M MEMS Quartz Gyroscope Sensor 50Hz Bandwidth 5V DC

Ürün Ayrıntıları

Giriş voltajı:

+5.0 VDC

Giriş Akımı:

<8 Ma @ +5.0 VDC

Sıcaklık üzerinde ölçek faktörü:

<%0.1/° C

G Hassasiyeti (Tipik):

<0.05 °/sn/g

Bant genişliği (-3 dB):

> 50 Hz

Doğrusal Olmayan (% tam aralık):

<% 0.05

Vurgulamak:

MEMS quartz angular rate sensor

50Hz bandwidth rate sensor

fluid level meter sensor

Ödeme ve Nakliye Şartları

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

İlişkili Ürünler

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

En İyi Fiyatı Alın

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

En İyi Fiyatı Alın

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

En İyi Fiyatı Alın

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

KSGYR101M MEMS Quartz Angular Rate Sensor 50Hz Bandwidth

Key Attributes

Attribute	Value
Input Voltage	+5.0 Vdc
Input Current	< 8 mA @ +5.0 Vdc
Scale Factor over Temperature	< 0.1%/°C
G Sensitivity (Typical)	< 0.05°/sec/g
Bandwidth (-3 dB)	> 50 Hz
Non-Linearity (% Full Range)	< 0.05%

Product Overview

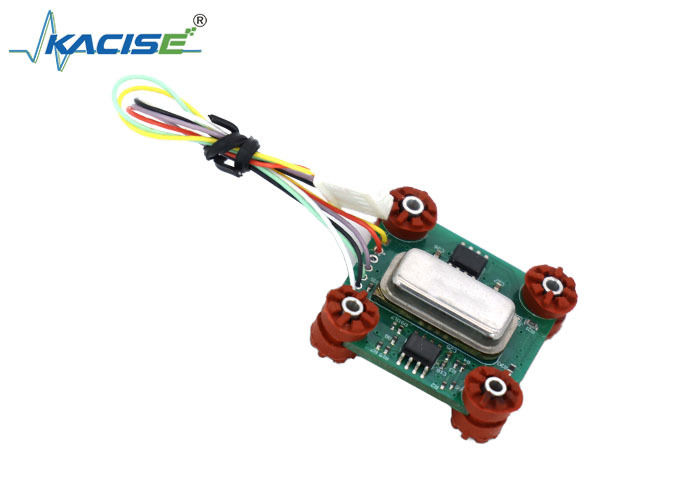

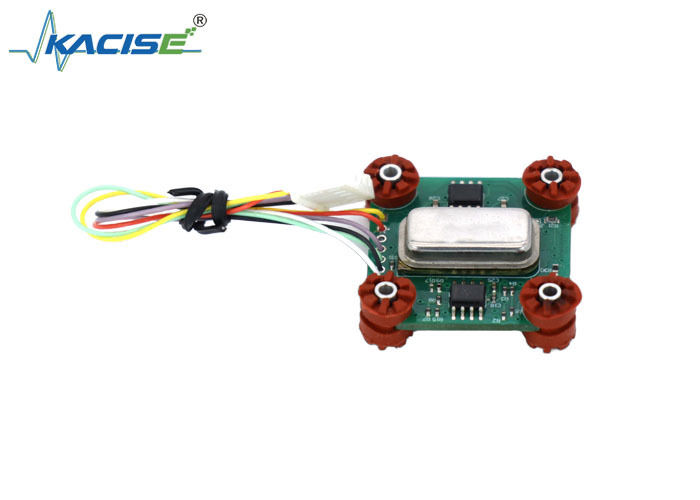

The KSGYR101M MEMS Quartz Angular Rate Sensor (Low Cost Gyro 50) features a MEMS (micro-electro-mechanical system) single-axis angular velocity sensor on a compact PC board. This complete unit requires only a single DC voltage input to measure angular rate, making it ideal for embedded applications requiring installation versatility, cost-effectiveness, robustness, and performance comparable to more expensive instrument-grade rate sensors.

Key Features

Proven MEMS Technology
DC Voltage Output
Wide Bandwidth
Analog Voltage Output
Low Power Consumption
High Reliability
Wide Operating Temperature Range
Compact Size
Fast Start-Up
DC in DC out
Temperature Sensor Output

Applications

Vehicle Instrumentation
Robotics
Flight Testing
Guidance & Control Systems
Short Term Navigation
Ride Control - Stabilization

Technical Specifications

Power Requirements
Power Voltage	5V DC
Power @ 25°C	50mW
Supply Current	≤8mA
Output Range	0.5-4.5(V)
Data Updating Rate	1000Hz

Performance
Range	± 20°/s
Size	29.4mm × 29.4mm × 10.7mm
Run-up Time	2s
Bias	+2.5 Vdc ± 0.6 Vdc
Bias Stability	≤1.0°/s
Bias Temperature Sensitivity	10°/s
Scale Factor	50 mV/°/s ± 15%
Scale Factor Temperature Sensitivity	≤ 0.1%/°C
Scale Factor Nonlinearity	≤0.05%
Noise	≤ 0.05°/s/g
Resolution	≤ 0.005°/s/√ Hz
Bandwidth	≥50Hz
Weight	≤12g

Environmental Specifications
Operating Temperature	-40°C to +85°C
Storage Temperature	-55°C to +100°C
Random Vibration	5g rms
Survival Shock	10g rms
Shock	500g 1/2sine 2ms
