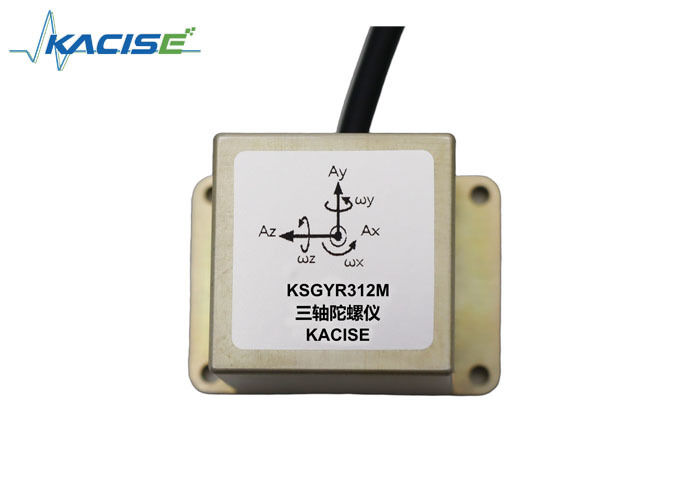

Name: KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR312M
Price: 431.00 USD
Availability: InStock

Ev > Ürünler > Elektronik Giroskop Sensörü >

KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc

Triaxial MEMS gyro sensor ±300°/s

5Vdc electronic gyroscope sensor

MEMS gyro sensor with warranty

Place of Origin:

CHINA

Marka adı:

kacise

Sertifika:

Model Number:

KSGYR312M

Bizimle İletişim

Teklif Et

KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc

Ürün Ayrıntıları

Giriş voltajı:

5VDC

Gelen Currentma:

<10mA

Ofset voltajı:

1.65 ± 0.02V

Çıkış voltajı:

0.66 ～ 2.64V

Menzil:

± 300x 、 y 、 z °/s

Boyut:

43 × 30.5 × 30.5mm

Vurgulamak:

Triaxial MEMS gyro sensor ±300°/s

5Vdc electronic gyroscope sensor

MEMS gyro sensor with warranty

Ödeme ve Nakliye Şartları

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

İlişkili Ürünler

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

En İyi Fiyatı Alın

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

En İyi Fiyatı Alın

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

En İyi Fiyatı Alın

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

KSGYR312M Triaxial MEMS Gyro Sensor ±300°/s 5Vdc

Product Attributes

Input voltage	5Vdc
Incoming current	<10 mA
Offset voltage	1.65±0.02V
Output voltage	0.66～2.64V
Range	±300X、Y、Z°/s
Size	43×30.5×30.5mm

Product Description

KSGYR312M Triaxial Universal Angular Rate Gyro

The KSGYR312M series three-axis universal angular rate gyro is developed by Kacise for measuring three-axis angular rates. Each axis utilizes MEMS technology chips, offering high performance, low cost, high reliability, and rugged packaging with Self-Test functionality.

Operating Principle

The KSGYR312M operates on the resonator gyro principle, featuring two polysilicon sensitive structures with high-frequency vibrating frames. These frames generate Coriolis motion at angular rates, producing electrical signals that are amplified and modulated to output signals proportional to angular rate.

Key Features

Low power consumption
Wide operating temperature range
Broad bandwidth
Compact size
DC input/output
Fast start-up
High performance at low cost

Applications

Automotive electronics
Aircraft guidance and control
Attitude reference systems
Platform stabilization
Robotics and antenna stabilization
Camera and digital camera gyros

Technical Specifications

Power Supply Parameters
Power Voltage	5V DC
Power at 25°C	50mW
Supply current	≤10mA
Output Range	0.66～2.64(V)
Product Performance
Range	±300°/s
Size	43mm×30.5mm×30.5mm
Run-up time	0.005s
Bias	1.65±0.02V dc
Bias stability	≤12°/h
Bias temperature sensitivity	≤1°/s
Scale factor	3.3mV/°/s±0.05mV/°/s
Scale factor nonlinearity	≤0.05%
Noise	≤0.02°/s/g
Threshold	≤2%
Resolution	≤0.02°/s/√Hz；≤0.1°/s
Bandwidth	≥80Hz
Weight	<50g
MTBF	100000h
Environmental Specifications
Operating temperature	-45°C～+85°C
Storage temperature	-65°C~+125°C
Shock resistance	20000g

Dimensions

Interface Specification

Color	Red	Black	Blue	Yellow	White	Shield
Signal Name	+12Vdc	Power and signal Ground	ωXOUT	ωYOUT	ωZOUT	Shell ground
