Name: KSGYR321M MEMS Gyroscope ±300°/s Range High Precision
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSGYR321M
Price: 431.00 USD
Availability: InStock

Ev > Ürünler > Elektronik Giroskop Sensörü >

KSGYR321M MEMS Gyroscope ±300°/s Range High Precision

high precision MEMS gyroscope

MEMS gyroscope ±300°/s range

fluid level meter gyroscope

Place of Origin:

CHINA

Marka adı:

KACISE

Sertifika:

Model Number:

KSGYR321M

Bizimle İletişim

Teklif Et

KSGYR321M MEMS Gyroscope ±300°/s Range High Precision

Ürün Ayrıntıları

Aralık (°/s):

± 300 (seçenekler)

Bias Stabilitesi (DEG/H ， Allan sapması):

≤12

Önyargı Tekrarlanabilirliği (DEG/S):

≤0,15

Doğrusal olmayanlık (%fr):

≤0.1

Çözünürlük (DEG/S):

≤0,05

Bant genişliği (HZ):

≥80

Vurgulamak:

high precision MEMS gyroscope

MEMS gyroscope ±300°/s range

fluid level meter gyroscope

Ödeme ve Nakliye Şartları

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8work days

Supply Ability

1000 Piece/Pieces per Week negotiable

İlişkili Ürünler

Low power triaxial angular rate gyroscope, can be applied to robots, Storage temperature -65 ~ +125(°C), Weight ≤40(g)

En İyi Fiyatı Alın

Bias Drift ≤0.1°/H Gyro North Finder with ±5V Supply Voltage for Accurate Navigation and Uav

En İyi Fiyatı Alın

Gyroscope/Angular velocity sensor/Used to measure the angular velocity in the direction of the sensitive axis

En İyi Fiyatı Alın

AI vision inertial navigation system for aircraft lifting assistance with weight ≤2.0kg

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

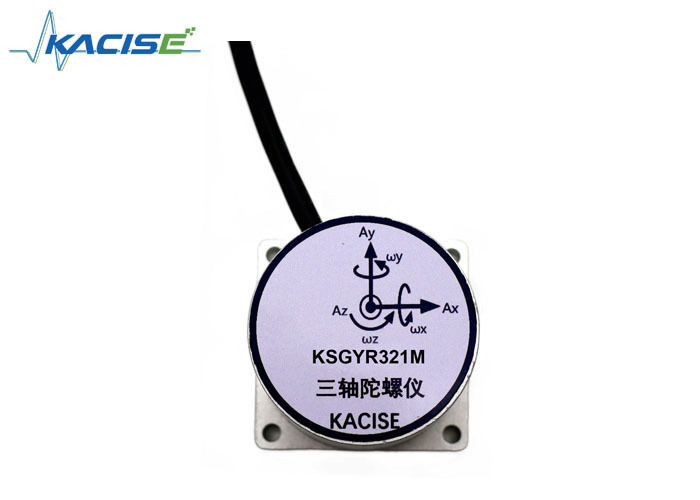

KSGYR321M High Precision MEMS Gyroscope ±300°/s Range

Key Specifications

Attribute	Value
Range (°/s)	±300 (options)
Bias stability (deg/h, allan deviation)	≤12
Bias repeatability (deg/s)	≤0.15
Nonlinearity (%F.R)	≤0.1
Resolution (deg/s)	≤0.05
Bandwidth (Hz)	≥80

Product Overview

The KSGYR321M is a high-performance three-axis digital gyroscope featuring compact size and exceptional overload resistance. Designed for precision navigation, control systems, and dynamic measurement applications in demanding environments, this MEMS-based inertial device delivers reliable angular velocity measurement under harsh conditions.

Applications

Ideal for systems requiring wide operating temperature range, fast startup, and high precision including:

Weapon guidance and control systems
Engineering equipment control
Platform stabilization
Pipeline robotics
Underwater vehicles

Key Features

Exceptional stability and precision
Optional analog and digital outputs
Wide measurement range
Rapid startup capability

Technical Specifications

Parameter	Specification
Number of Axes	3
Power Voltage	5V DC
Power Consumption @25°C	1W
Supply Current	≤200mA
Output	RS422
Data Update Rate	400Hz (configurable)
Dimensions	Ø39.5mm × 28.5mm
Startup Time	1s
Bias	±1°/s
Bias Stability	≤12°/h
Bias Temperature Sensitivity	≤3°/s
Scale Factor Nonlinearity	≤0.1%
Threshold	≤0.05°/s
Resolution	≤0.05°/s
Bandwidth	≥80Hz
Weight	<100g
Range	±300°/s
Operating Temperature	-40°C to +80°C
Storage Temperature	-55°C to +85°C
Shock Resistance	10000g
