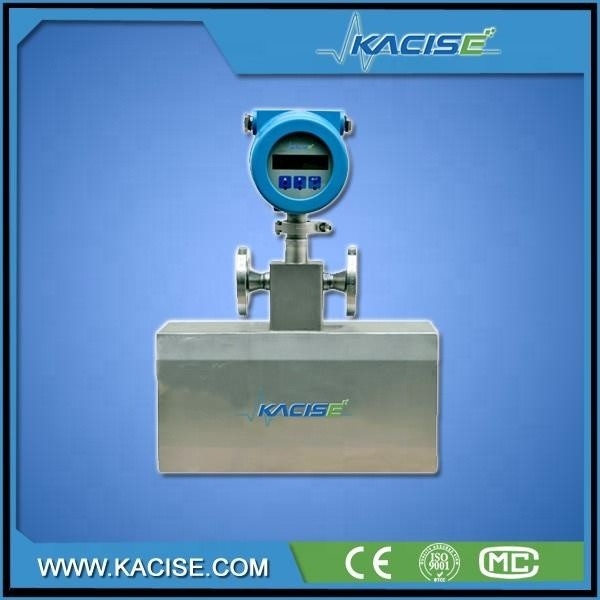

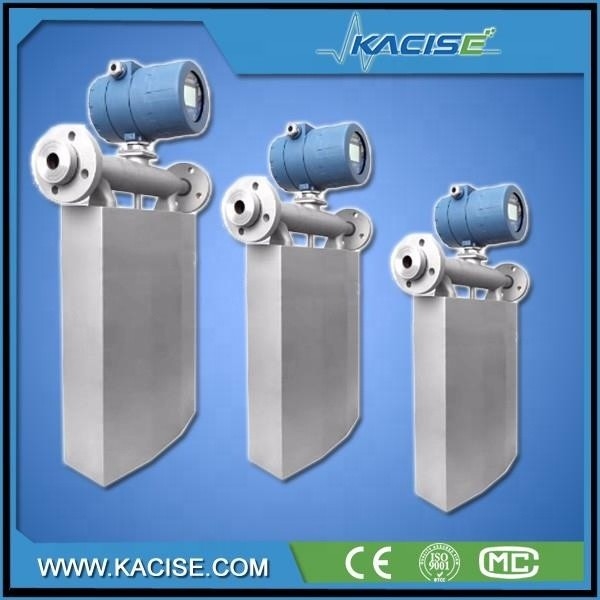

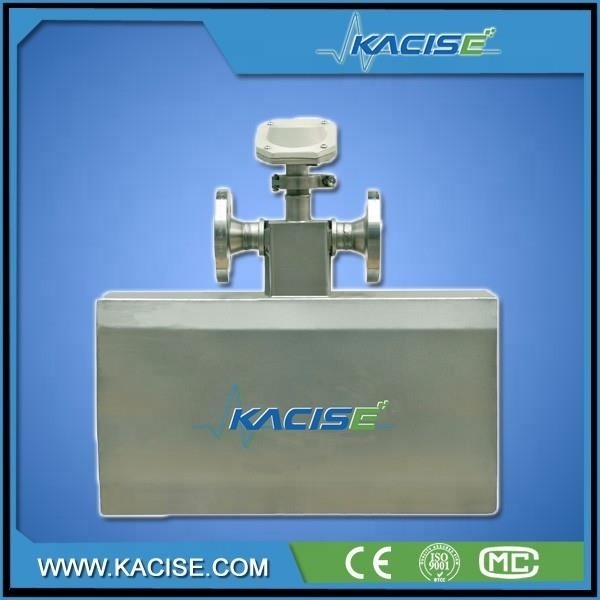

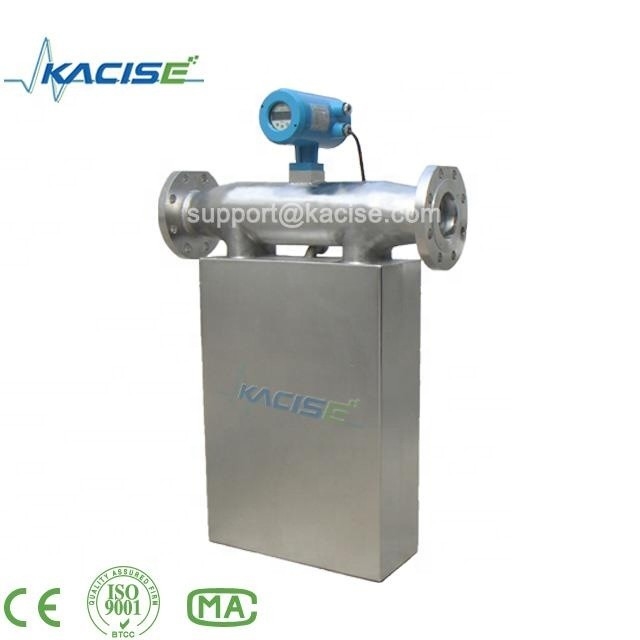

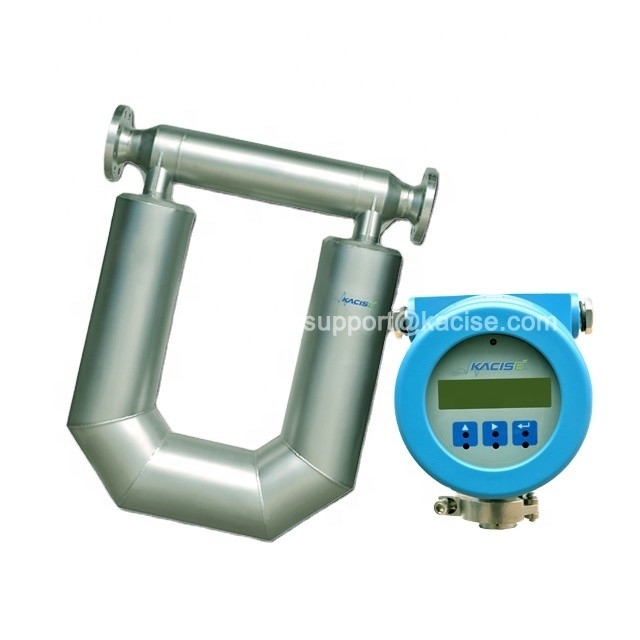

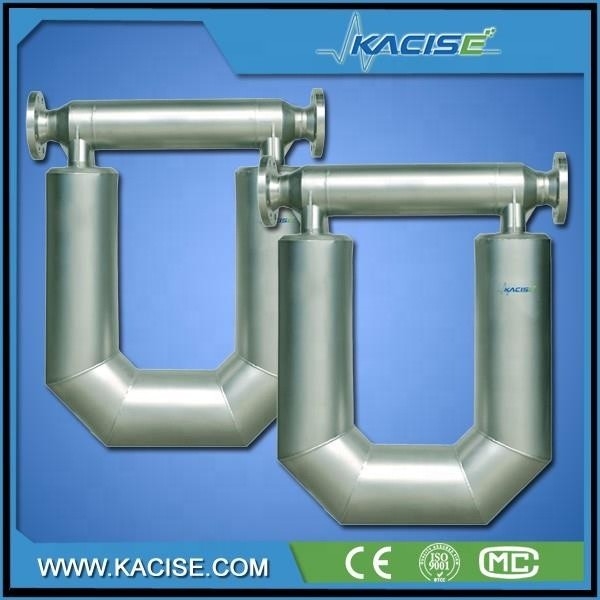

Mass flow rate meter for gas thermal with mass accuracy grade 0.2

mass flow rate meter  for gas thermal Overview

mass flow rate meter  for gas thermal are the leading precision flow and density measurement solution offering the most accurate and repeatable mass measurement for liquids, or slurries. Kacise meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.

Technical Parameters:

1.Scope: liquid, high pressure gas, liquid solid blending fluid mass flow measurement

2.Contact with media Material: 304 or 316L stainless steel

3. pressure level: 2-25MPa and so on

4. Measuring temperature range: -50 ~ + 150 ° C; -50 ~ + 350 ° C; -100 ~ + 350 ° C

5. Ambient temperature: -20 ~ + 70 ° C

6.flow measurement accuracy; 0.1-0.2%

7. Density measurement accuracy: 0.002g / cm3

8. Repeatability error: .10%

9. Signal output: 4 ~ 20mA load less than 500 ohms (instantaneous flow or density)

0 ~ 10KHz pulse signal (instantaneous flow)

485 communication signal

10. Sensor explosion-proof mark: Exib (ib) IIBT2 ~ T5

11. Flow transmitter explosion-proof mark: Exd (ib) ibIBT5

1.we can produce acoording to your requirments,OEM,ODM

2.we can supply ex-factory price as manufacturer,to help you defeat your opponent.

3.after payment we can deliver to you soon

4.we have ISO9001 certification and patent certification.

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
