Ip68 Online Nitrogen Oxygen Sensor RS485 Modbus PLC DCS Connect

PLC Connect Nitrogen Oxygen Sensor

RS485 Nitrogen Oxygen Sensor

Ip68 Nitrogen Oxygen Sensor

Place of Origin:

CHINA

Marka adı:

kacise

Sertifika:

Model Number:

KAN310

Bizimle İletişim

Teklif Et

Ip68 Online Nitrogen Oxygen Sensor RS485 Modbus PLC DCS Connect

Ürün Ayrıntıları

Range:

0 ~ 10.00 mg/L (0 ~ 100.00 mg/L)

Resolution:

0.01 mg/L

Precision:

± 10% or ± 1mg/L

Operating Temperature:

0 ~ 40 °C

Working Pressure:

< 0.1 mpa

The Ph Range Of The Medium:

4 ~ 10ph

Vurgulamak:

PLC Connect Nitrogen Oxygen Sensor

RS485 Nitrogen Oxygen Sensor

Ip68 Nitrogen Oxygen Sensor

Ödeme ve Nakliye Şartları

Minimum Order Quantity

0-100

Fiyat

$0-$500

Packaging Details

Common package or custom package

Delivery Time

3-10days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

100

İlişkili Ürünler

KCW102 Alçak frekanslı elektromanyetik dalga su arıtma cihazı

En İyi Fiyatı Alın

KCW101 Frekans - Modüle Elektromanyetik Dalga Su Temizleme Ekipmanı

En İyi Fiyatı Alın

KHM100 Çevrimiçi Otomatik Ağır Metal Su Kalite İzleyici

En İyi Fiyatı Alın

KCW104 Yüksek verimlilik frekansı - süpürme cihazı

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

Online Ammonia Nitrogen Sensor RS485 Modbus PLC DCS

Name: Ip68 Online Nitrogen Oxygen Sensor RS485 Modbus PLC DCS Connect
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KAN310
Price: 500 USD
Availability: InStock

1.Application Environment

KAN310 integrated on-line ammonia-nitrogen sensor is made of ammonium ion selective electrode based on PVC membrane, which is used to measure the content of ammonium ion in water with temperature compensation.

2.Feature

Signal Output: RS-485 bus, Modbus/RTU protocol,
Convenient to connect to PLC, DCS, Industrial Control Computer, General Controller, paperless recording instrument or touch screen and other third-party equipment.
The patented ammonium ion probe, with an internal reference fluid at a pressure of at least 100 kpa (1 bar), oozes extremely slowly from the microporous salt bridge. Such a reference system is very stable and the electrode life is longer than ordinary industrial electrode life.
Easy to install: submerged installation.
Ip68, containment level.

3.Technical Specifications

Model Number	KAN310
Range	0 ~ 10.00 mg/L (0 ~ 100.00 mg/L)
Resolution	0.01 MGL
Precision	± 10% or ± 1MG/L
Operating Temperature	0 ~ 40 °C
Working Pressure	< 0.1 mpa
The Ph Range Of The Medium	4 ~ 10ph
Temperature Compensation	Automatic temperature compensation (PT1000)
Power Supply	12 ~ 24 VDC ± 10%
Signal Output	RS-485 bus, Modbus/RTU protocol
Contact Material	PVC and POM
Installation Mode	Immersion mounting
Cable Length	5 meters, other length can be customized
Calibration Mode	Two-point calibration
Power Consumption	< 0.05 W
Protection Level	IP68

4.Dimensional Drawing

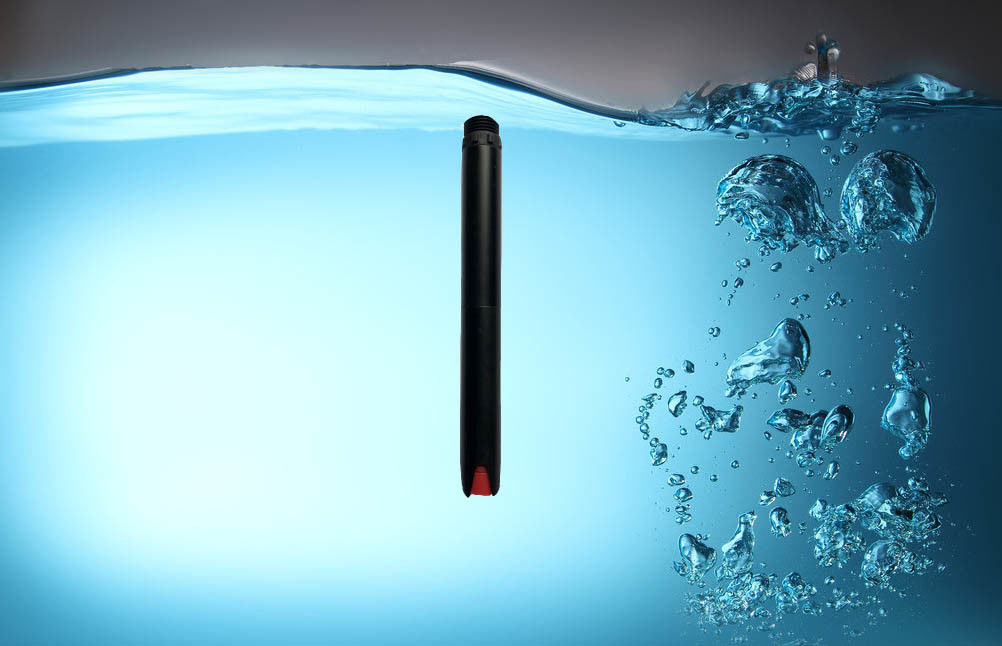

Ip68 Online Nitrogen Oxygen Sensor RS485 Modbus PLC DCS Connect 0

Tip:The difference between total nitrogen and ammonia nitrogen

Total nitrogen includes organic nitrogen, organic amines, amino acids, proteins, ammonia nitrogen, etc.

And ammonia nitrogen only includes NH4+ and NH3.

Ip68 Online Nitrogen Oxygen Sensor RS485 Modbus PLC DCS Connect 1
