Ürün Tanımı

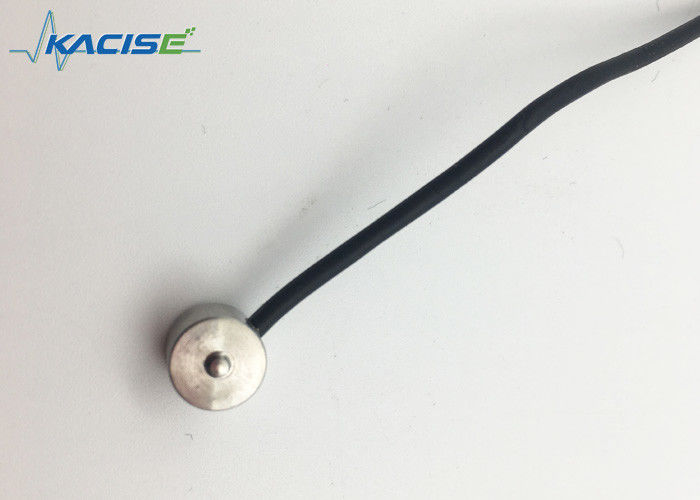

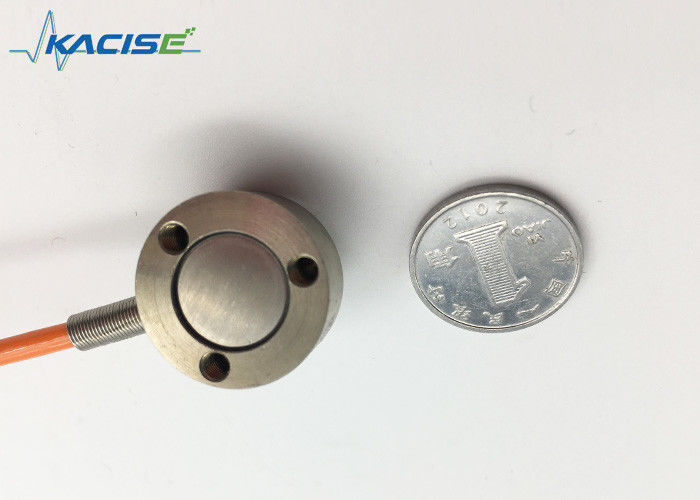

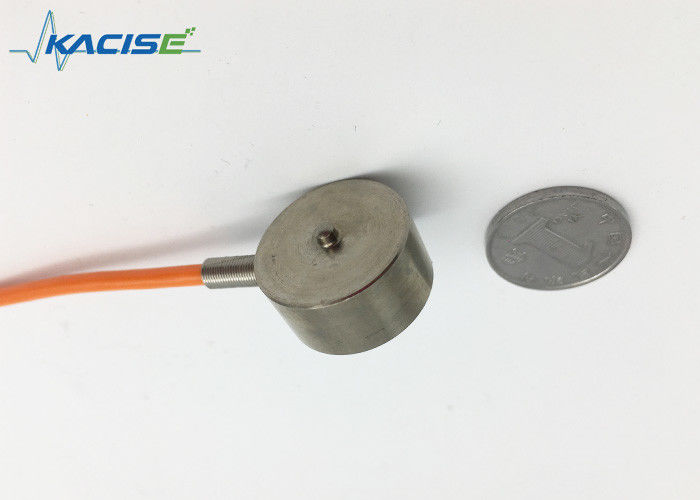

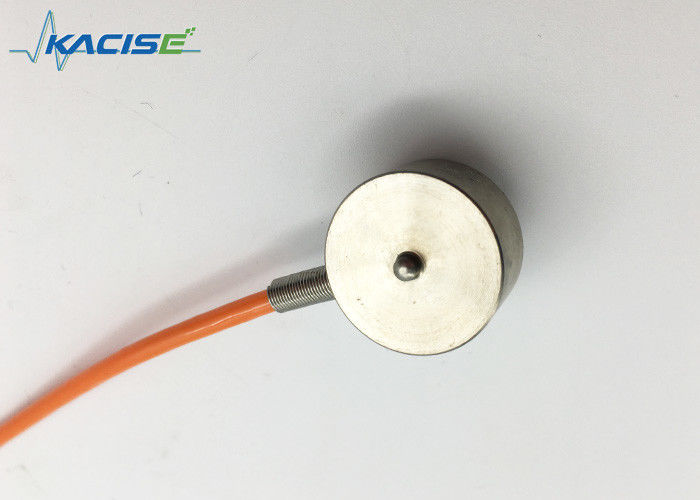

Stainless Steel KCZ-501 Membrane Box Load Cell For Medical Testing

Features

Small defromation with strong ability of anti-side force;

Made of stainless steel;

Applications

Compression application;

Can be used for industrial polishing;

Suitable for automotive press fit, automated assembly, 3C products testing, new energy product assembly, medical testing, robotics and other industrial testing and control system

High dynamic response frequency.

Technical Specifications

Capacity	0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100kN
Sensitivity	1.5±10%mV/V
Zero balance	±2%F.S.
Non-linearity	0.1%F.S
Hysteresis	0.1%F.S
Repeatability	0.05%F.S
Creep (30min)	0.1%F.S
Temp.effect on output	0.05%F.S/10℃
Temp.effect on zero	0.05%F.S/10℃
Input impedance	780±10Ω
Output impedance	700±5Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5~15V
Maximum excitation	20V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S
Ultimate overload	300%F.S
Cable size	Φ4x4000mm
Material	Stainless steel
IP class	IP68
Capacity	0.5, 1, 2, 3, 5, 10, 20, 30, 50, 100kN
Sensitivity	1.5±10%mV/V
Zero balance	±2%F.S.

Mounting dimension

Cap (kN)	A	B	C	D	E	F	G	H	K	M	Weight
0.5, 1,2,3,5,10	54	50	34	8.5	5	13	5.5	47	42	8-M5	0.8kg
20, 30, 50, 100	95	90	55	15	5.5	20	11	72	70	16-M5	2kg

Dimensions and Connection
