Name: IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KCZ-201
Price: 255.00 USD
Availability: InStock

Ev > Ürünler > Yük Hücresi Sensörü >

IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity

load cell weight sensor

Tension Load Cell

strain gauge weight sensor

Place of Origin:

China

Marka adı:

KACISE

Sertifika:

Model Number:

KCZ-201

Bizimle İletişim

Teklif Et

IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity

Ürün Ayrıntıları

Capacity:

50, 100, 200, 300, 500kg

Rated output:

2.0±0.1%mV/V

Zero balance:

±2%F.S.

Non-linearity:

0.03%F.S

Hysteresis:

0.03%F.S

Repeatability:

0.03%F.S

Vurgulamak:

load cell weight sensor

Tension Load Cell

strain gauge weight sensor

Ödeme ve Nakliye Şartları

Minimum Order Quantity

1 Piece/Pieces

Fiyat

pazarlık edilebilir

Packaging Details

Carton / Wooden box

Delivery Time

7 Working days

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability

3000 Piece/Pieces per Month

İlişkili Ürünler

Mavin Load Cell 100kg 300kg 500kg 1000kg

En İyi Fiyatı Alın

High Accuracy Load Cell Sensor Column Type Stainless Steel Material

En İyi Fiyatı Alın

500KG GXLC-DZ-0.5T Yük Hücresi Ağır Sensörü

En İyi Fiyatı Alın

GXLC-DZ-1T 1000KG Ağır Sensör Yük Hücresi 700/1400Ω Impedanslı

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

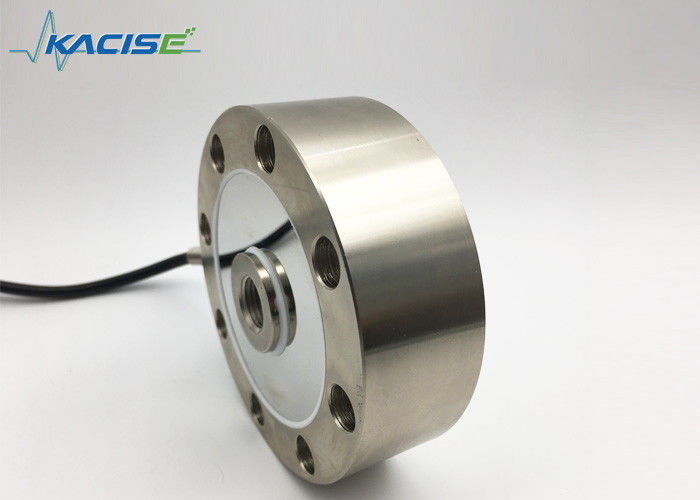

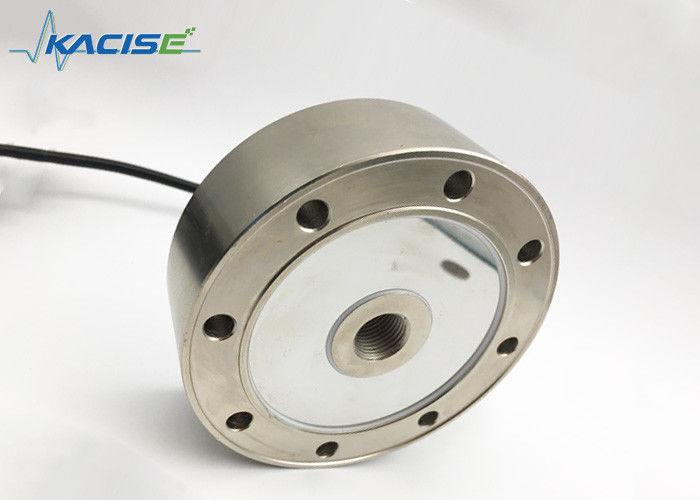

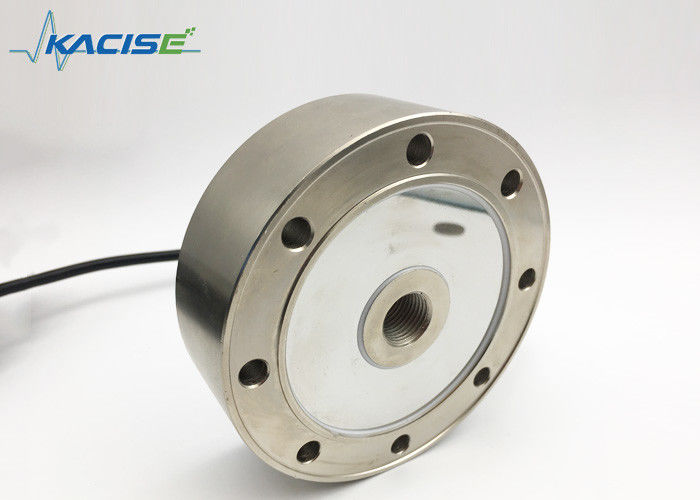

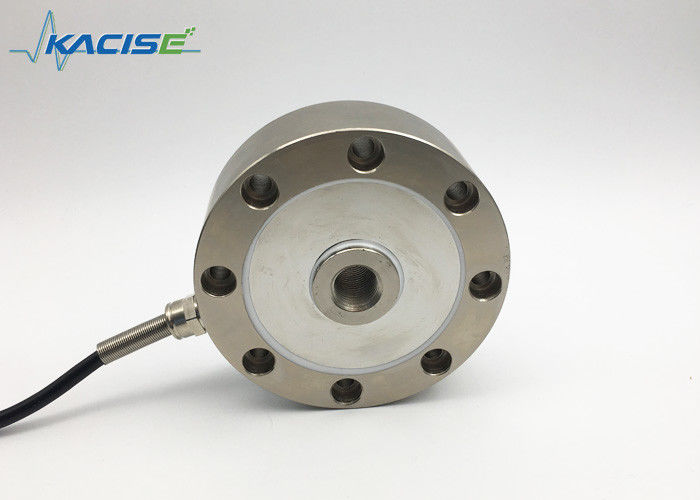

KCZ-201 Spoke load cell

1.Features and Applications

Low profile with small deflection .Made of stainless steel Suitable for automotive press fit, automated assembly, 3CS products testing, new energy product accembly, medical testing, robotics, mold assembly and other industrial testing and controlling system.

2.Technical Specifications

Capacity	50, 100, 200, 300, 500kg
Rated output	2.0±0.1%mV/V
Zero balance	±2%F.S.
Non-linearity	0.03%F.S
Hysteresis	0.03%F.S
Repeatability	0.03%F.S
Creep (30min)	0.03%F.S
Temp.effect on output	0.03%F.S/10℃
Temp.effect on zero	0.03%F.S/10℃
Input impedance	780±20ohm
Output impedance	700±10ohm
Insulation	≥5000M ohm/100VDC
Recommended excitation	5~15V
Maximum excitation	20V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S
Ultimate overload	200%F.S
Cable size	Φ5x4000mm
IP class	IP69
Capacity	50, 100, 200, 300, 500kg
Rated output	2.0±0.1%mV/V
Zero balance	±2%F.S.

3.Dimensions and Connection

IP65 Spoke Load Cell Sensor For Weighing Scale 10kg 20kg 100kg 200kg Capacity 0

4.Mounting dimension

Cap (t)	A	B	C	D	E	F	G	H	J	K	M
0.11~1.76	133.4	76.2	25.4	15.4	30.7	30.2	57.7	14.2	13	20.6	M12
2.2	136.7	76.2	25.4	18.4	36.8	36.6	55.6	16.6	13	12.5	M12
4.4	171.5	95.3	38.1	21.4	43.9	432.9	73.8	22.9	20.5	22.2	M20

5.Product Details
