Name: Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KUS550
Price: 1,000.00 USD
Availability: InStock

Ev > Ürünler > Sıvı seviyesi ölçer >

Food Grade PTFE Ultrasonic Fluid Level Meter 1"NPT Chemical Resistance

ultrasonic fluid level sensor

ultrasonic level transmitter

Menşe yeri:

Çin

Marka adı:

KACISE

Sertifika:

Model Number:

KUS550

Bizimle İletişim

Teklif Et

Food Grade PTFE Ultrasonic Fluid Level Meter 1

Ürün Ayrıntıları

Material:

PTFE

Thread:

1" NPT

IP grade:

IP67

Vurgulamak:

ultrasonic fluid level sensor

ultrasonic level transmitter

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Fiyat

pazarlık edilebilir

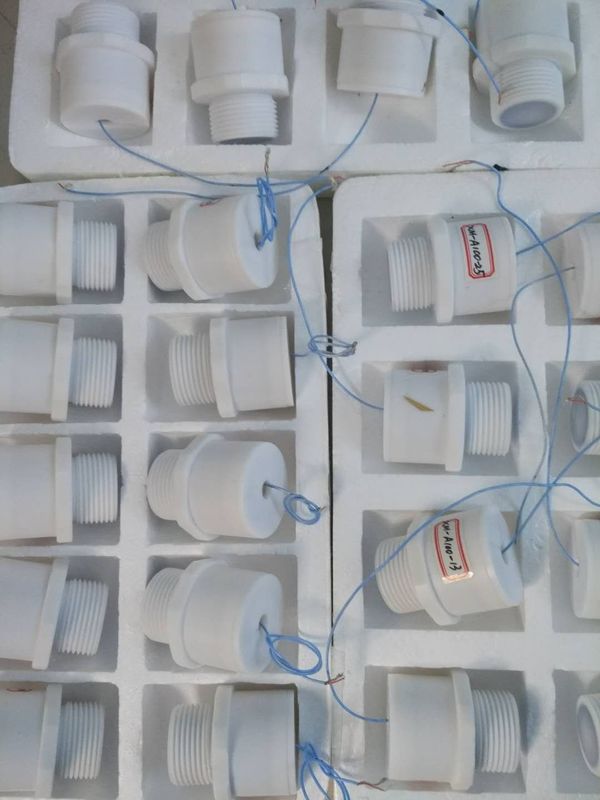

Ambalaj bilgileri

her ünitenin ayrı kutusu vardır ve tüm kutular standart paketlerde veya müşterilerin istekleri doğru

Teslim süresi

5-8 iş günü

Payment Terms

L/C, T/T, Western Union, MoneyGram

Yetenek temini

Haftada 1000 Adet/Adet pazarlık yapılabilir

İlişkili Ürünler

Video

Rs485 Intelligent Ultrasonic Sensor 4 - 20mA Wide Range

En İyi Fiyatı Alın

Video

New designed ultrasonic pressure transducer

En İyi Fiyatı Alın

Video

2019 NEW upgraded ultrasonic level sensor

En İyi Fiyatı Alın

Video

Low cost intelligent wide range ultrasonic tank water level sensor

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

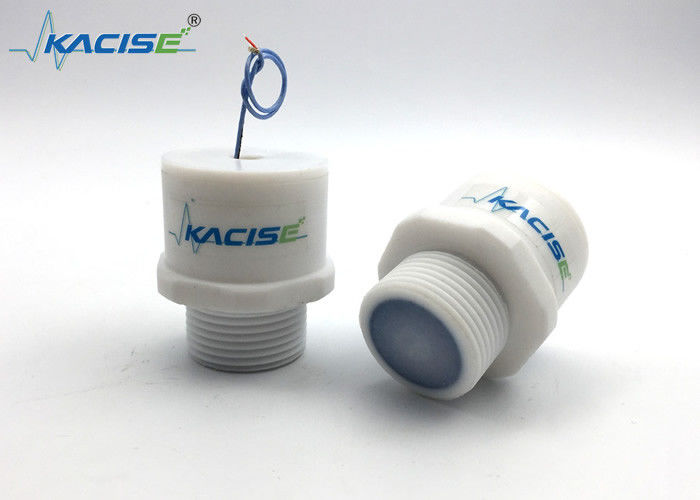

1"NPT Food Grade Chemical Resistance Whole Body PTFE Anti Corrosion Ultrasonic Level Sensor

Introduction

This sensor provides very short to long-range detection and ranging, in a compact, robust PVC/PTFE housing, designed to meet IP67.

Features

. IP67 Designed for outdoor or indoor environments

. High sensitivity

. Free run operation can continually measure and output ranger information

. Sensor beam angle is 10 degrees (full angle)

. Chemical Resistance Whole Body PTFE

. Anti Corrosion

. Suitable for Sanitary and Hygienic application

Applications

. Tank level measurement

. Bin level measurement

. Proximity zone detection

. People detection

. Robot ranging sensor

. Autonomous navigation

. Multi-sensors navigation

. Distance measuring

. Food level detection

. Industrial automation

Parameters

General Parameters		Mechanical Properties
Detection Range	200mm~3000mm	Connection	5 pin cable
Transducer Frequency	70KHZ	Weight	100g
Repeatability Precision	≤1%	IP grade	IP67
Response Time	<50ms
Beam Angle	7°±2
Temp. Compensation	inside/outside/fix temp.
Electrical Parameters
Operating Voltage	14.5VDC~27VDC
Limit Working Voltage	13VDC~30VDC
Power Consumption	≤30mA
Circuit Protection	short-circuit protection, overload protection
Output	Digital Output	RS485
	Analogue Output	0~5V
	Switch Output	0V / 5V
Ambient Environment
Operating Ambient Temp.	0~70℃ (-40~85℃, -55~125℃, etc, customizable)
Storage Temperature	-55~125℃
