Name: 0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: K-2JSJ ， K-JSJ200
Price: 478.00 USD
Availability: InStock

Ev > Ürünler > ivmeölçer sensörü >

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability

linear acceleration sensor

triaxial acceleration sensor

Place of Origin:

China (Mainland)

Marka adı:

Kacise

Model Number:

K-2JSJ ， K-JSJ200

Bizimle İletişim

Teklif Et

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability

Ürün Ayrıntıları

Type:

K-2JSJ，K-2JSJ-200

Input voltage:

5±0.25 VDC

Input current:

≤2mA

Output Mode:

0.5～4.5 V

Axial direction:

X、Y

Range:

±2g

Bandwidth:

≤ 50 Hz

Sensitivity:

1000±30 mV / g

Resolution:

0.005 g

Nonlinear:

≤ 0.5% Fs

Vurgulamak:

linear acceleration sensor

triaxial acceleration sensor

Ödeme ve Nakliye Şartları

Minimum Order Quantity

1ps

Fiyat

pazarlık edilebilir

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work day

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability

1000 Pieces per Week

İlişkili Ürünler

Honeywell QA2000-030 Hızlandırıcı Sensörü, Havacılık Uygulamaları

En İyi Fiyatı Alın

Magnetic Suction Linear Accelerometer Sensor Uniaxial Module Vibration Performance

En İyi Fiyatı Alın

K-3JSJ-001 Lightweight 3 Axis Acceleration Sensor /Triaxial High Speed Accelerometer 0~3 V

En İyi Fiyatı Alın

Stable Accelerometer Sensor Fiber Optic Gyroscope Easy To Carry High Performance

En İyi Fiyatı Alın

Bizimle İletişim

86--17719566736

Şimdi iletişime geçin

Ürün Tanımı

0.5～4.5 V voltage output Biaxial Accelerometer Sensor Module

1. Product Description

An instrument for measuring acceleration, typically that of an automobile, ship, aircraft, or spacecraft, or that involved in the vibration of a machine, building, or other structure.It has functions of analog voltage output, small size, light weight, wide measuring range, impact resistance, vibration performance.

Accelerometer, also known as Acceleration Sensor, is used to measure the force of the accelerated motion. Usually it is represented with the relative ratio of the acceleration of gravity(G). The accelerometers combined with the industry-leading iMEMS technology have the characteristic of high stability, small size, low weight, instantaneous startup, etc. They can be used vibration measurement and static acclivitous angle measurement.

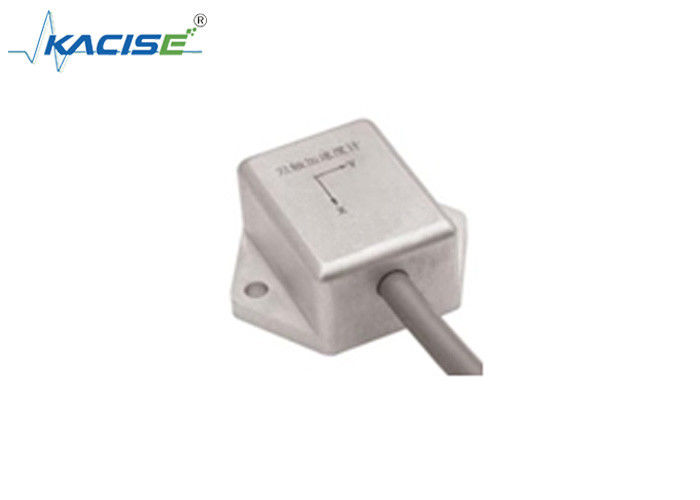

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability 0

2.Parameter

Type	K-2JSJ	K-2JSJ-200
Electric character
Input voltage	5±0.25 VDC
Input current	≤2mA
Output Mode	0.5～4.5 V
Performance index
Axial direction	X,Y
Range	±2g
Bandwidth	≤ 50 Hz
Sensitivity	1000±30 mV / g
Resolution (°/s)	0.005 g	0.001 g
Nonlinear (%FS)	≤ 0.5% Fs
Bias	2.5±0.1 V
Start-up time (ms)	≤1 s
Environmental characteristics
Temperature (°C)	-40℃~+70℃
Storage Temperature	-40℃~+125℃
Resistant to shock	2000g
Physical Characteristics
Weight (g)	20g

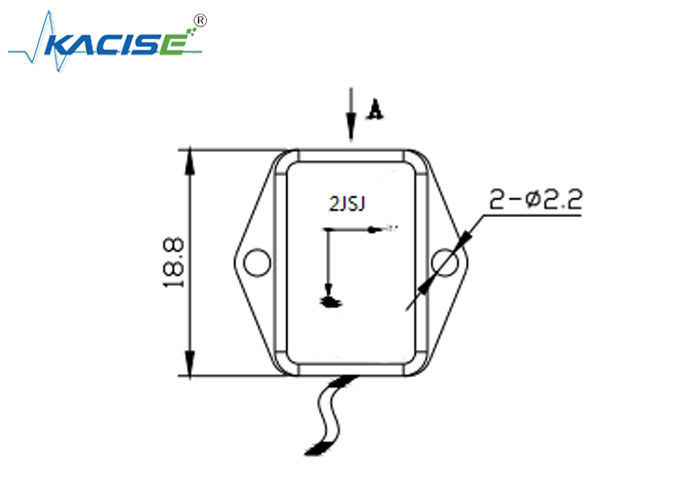

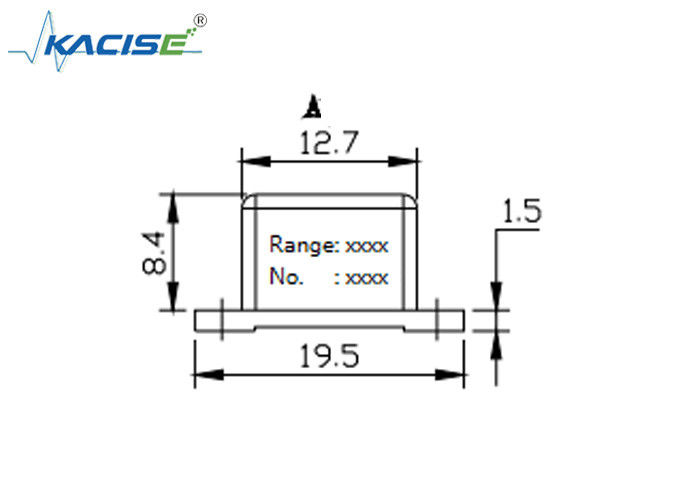

Dimensions	18.8×12.7×8.4 mm

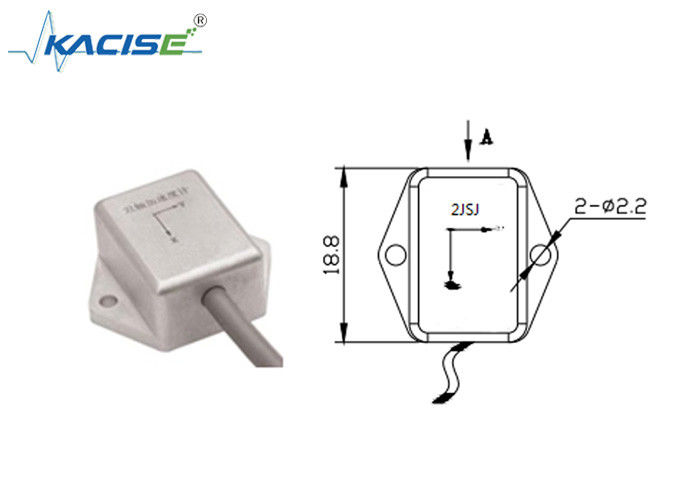

0.5 - 4.5 V Voltage Output Two Axis Accelerometer Acceleration Sensor High Stability 1

3.Feature

Analog voltage output
Small size, light weight
Wide measuring range
impact resistance, vibration performance

4.Application Field

Aircraft Stability control
seismic detection
