Name: Proline Promass S 500 Coriolis flowmeter
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: Proline Promass S 500
Price: 2,540.00 USD
Availability: InStock

Ev > Ürünler > Elektromanyetik Akış Ölçer >

Proline Promass S 500 Coriolis flowmeter

Proline Promass S 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Menşe yeri:

İsviçre

Marka adı:

Endress+Hauser

Sertifika:

Model numarası:

Proline Promass S 500

Bizimle İletişim

Teklif Et

Proline Promass S 500 Coriolis flowmeter

Ürün Ayrıntıları

Ölçüm Aralığı:

0 ila 70 000 kg/h (0 ila 2570 lb/min)

Maks. işlem baskısı:

PN 40, Sınıf 150, 20K

Orta sıcaklık aralığı:

50 ila +150 °C (~58 ila +302 °F)

Verici muhafaza malzemesi:

AlSi10Mg, kaplamalı; Polikarbonat

Tehlikeli alan onayları:

ATEX, IECEX, CCSAUS, NEPSI, Inmetro, EAC, KC

Ürün güvenliği:

CE, C-Tick, EAC işaretleme

Vurgulamak:

Proline Promass S 500 flowmeter

Coriolis flowmeter with warranty

Electromagnetic flow meter industrial

Ödeme ve Nakliye Şartları

Min sipariş miktarı

1 adet

Ambalaj bilgileri

Her ünitenin ayrı bir kutusu vardır ve tüm kutular standart paketlerde veya müşteri istekleri halind

Teslim süresi

5-8 İŞ GÜNÜ

Ödeme koşulları

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Yetenek temini

Haftada 1000 parça/parça pazarlık edilebilir

İlişkili Ürünler

Proline Promass S 300 Coriolis flowmeter

En İyi Fiyatı Alın

Proline Promass P 500 Coriolis flowmeter

En İyi Fiyatı Alın

Proline Promass Q 300 Coriolis flowmeter

En İyi Fiyatı Alın

Proline t-mass F 500 thermal mass flowmeter

En İyi Fiyatı Alın

Bizimle İletişim

Şimdi iletişime geçin

Ürün Tanımı

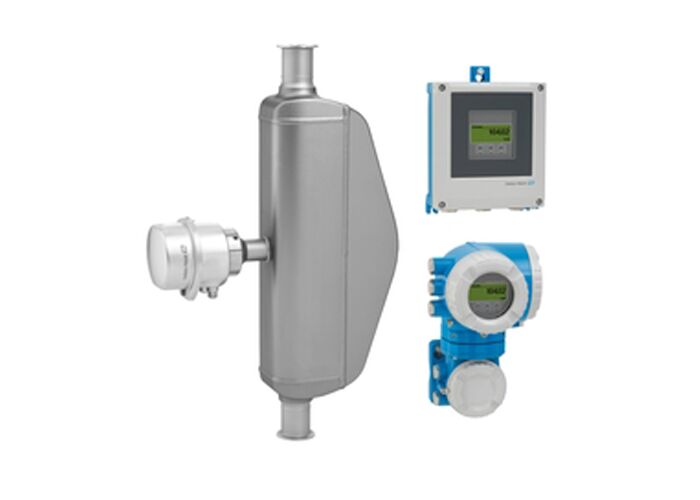

Proline Promass S 500 Coriolis Flowmeter

Advanced Coriolis flowmeter designed for hygienic applications in the food and beverage industry, featuring optimal cleanability and self-drainable single-tube system.

Key Specifications

Max. Measurement Error

Mass flow (liquid): ±0.10%
Volume flow (liquid): ±0.10%
Density (liquid): ±0.0005 g/cm³

Measuring Range

0 to 70,000 kg/h (0 to 2,570 lb/min)

Medium Temperature

-50 to +150 °C (-58 to +302 °F)

Max. Process Pressure

PN 40, Class 150, 20K

Field of Application

Designed for hygienic applications in the food and beverage industry requiring optimal cleanability. The self-drainable single-tube system ensures careful fluid treatment with maximum installation flexibility and operational safety.

Key Benefits

Increased process safety with easily cleanable, fully self-drainable tube design
Fewer process measuring points through multivariable measurement (flow, density, temperature)
Space-saving installation with no inlet/outlet run requirements
Full access to process and diagnostic information with numerous I/Os and Ethernet
Reduced complexity with freely configurable I/O functionality
Integrated verification through Heartbeat Technology

Technical Features

Sensor Features: Large range of hygienic process connections, 3-A and EHEDG conform, fast recovery from CIP/SIP, IP69 protection.

Transmitter Features: Remote version with up to 4 I/Os, backlit display with touch control, WLAN access, standard cable between sensor and transmitter.

Additional Specifications

Nominal Diameter

DN 8 to 50 (⅜ to 2")

Wetted Materials

Measuring tube: 1.4435 (316L)
Connection: 1.4435 (316L); 1.4404 (316/316L)

Measured Variables

Mass flow, density, temperature, volume flow, corrected volume flow, reference density, concentration

Ambient Temperature

Standard: -40 to +60 °C
Option: -50 to +60 °C

Certifications & Approvals

ATEX IECEx cCSAus NEPSI INMETRO EAC KC CE 3-A EHEDG cGMP PED CRN
