KWS-150 COD Sensor ,Small size, easier to install,Output Method RS-485(Modbus/RTU),Turbidity Resolution 0.1NTU

KWS-150 COD Sensor ,Small size, easier to install,Output Method RS-485(Modbus/RTU),Turbidity Resolution 0.1NTU

Menşe yeri:

Çin (Anakara)

Marka adı:

Kacise

Sertifika:

certificate of explosion-proof, CE

Model numarası:

KWS-150

Bizimle İletişim
Teklif Et
Ürün Ayrıntıları
Ölçüm prensibi:
Çift dalga boylu UV soğurma yöntemi
KOİ doğruluğu:
±5%
Tepki Süresi (T90):
<10s
En Düşük Tespit Limiti:
0,2 mg/L(0-200mg/L) 0,4mg/L(0-500mg/L)
COD çözünürlüğü:
0,1mg/L
bulanıklık doğruluğu:
±5%
Bulanıklık Çözünürlüğü:
0,1 NTU
Kalibrasyon yöntemi:
İki Noktalı Kalibrasyon
Çıktı Yöntemi:
RS-485(Modbus/RTU)
Güç kaynağı:
12~24VDC
Depolama sıcaklığı:
-5~65°C
Koruma seviyesi:
IP68
Ödeme ve Nakliye Şartları
Min sipariş miktarı
1 adet
Ambalaj bilgileri
her ünitenin ayrı kutusu vardır ve tüm kutular standart paketlerde veya müşterilerin istekleri doğru
Teslim süresi
5-8 iş günü
Ödeme koşulları
T/T, Western Union, MoneyGram
Yetenek temini
Haftada 1000 adet
Ürün Tanımı

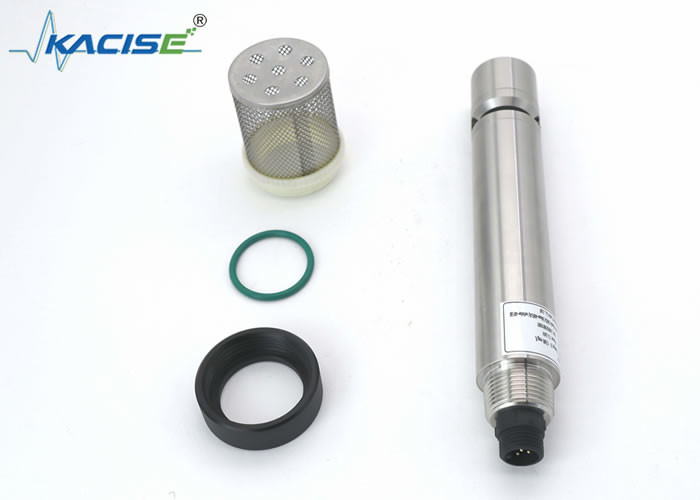

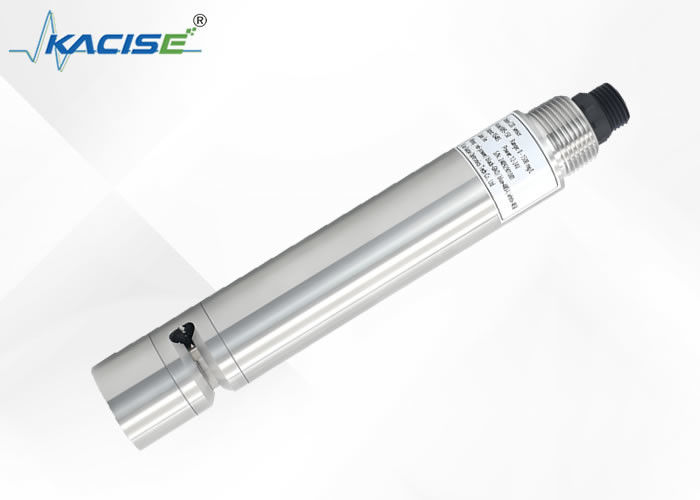

KWS-150 Online COD Sensor

Introduction

Many organic compounds dissolved in water absorb UV light. Therefore, by measuring the degree of absorption of 254nm wavelength ultraviolet light by these organic substances, the content of dissolved organic pollutants in water can be accurately measured.

KWS-150 online COD sensor uses two light sources, one ultraviolet light is used to measure the COD content in water, and one reference light is used to measure water turbidity. In addition, a specific algorithm is used to compensate for the attenuation of the light path and eliminate granularity to a certain extent. interference from suspended impurities, thereby achieving more stable and reliable measurement.

KWS-150 COD Sensor ,Small size, easier to install,Output Method RS-485(Modbus/RTU),Turbidity Resolution 0.1NTU 0

Feature

  • No reagents required, no pollution, economical and environmentally friendly
  • Small size, easier to install, and capable of continuous online water quality monitoring
  • Can measure parameters such as COD, turbidity and temperature
  • Automatic compensation for turbidity interference
  • Comes with cleaning brush to prevent biological adhesion
  • Small drift, fast response, and more accurate measurement
  • Excellent stability even for long-term monitoring
  • Maintenance-free, long service life, low cost of use
  • Digital sensor, RS-485 interface, Modbus/RTU protocol
  • Low power consumption and anti-interference design

Dimension

KWS-150 COD Sensor ,Small size, easier to install,Output Method RS-485(Modbus/RTU),Turbidity Resolution 0.1NTU 1



Technical Specifications

Model

KWS-150

Measurement Principle

Dual-wavelength UV absorption method

Measuring Range



COD

Turbidity

0~200mg/L equiv. KHP

0~100NTU

0~500mg/L equiv. KHP

0~200NTU



0~1500mg/L equiv. KHP

0~1000NTU

COD Accuracy

±5%

Response Time (T90)

<10s

Lowest Detection Limit



0.2mg/L(0-200mg/L)

0.4mg/L(0-500mg/L)

COD Resolution

0.1mg/L

Turbidity Accuracy

±5%

Turbidity Resolution

0.1NTU

Calibration Method

two-point calibration

Output Method

RS-485(Modbus/RTU)

Power Supply

12~24VDC

Power Consumption



0.4W@12V(working)

2W@12V(cleaning)

Storage Temperature

-5~65℃

Working Conditions

0~50℃,<0.2MPa

Protection Level

IP68

Cable Length

5 m, customizable

Casing Material

316L stainless steel
